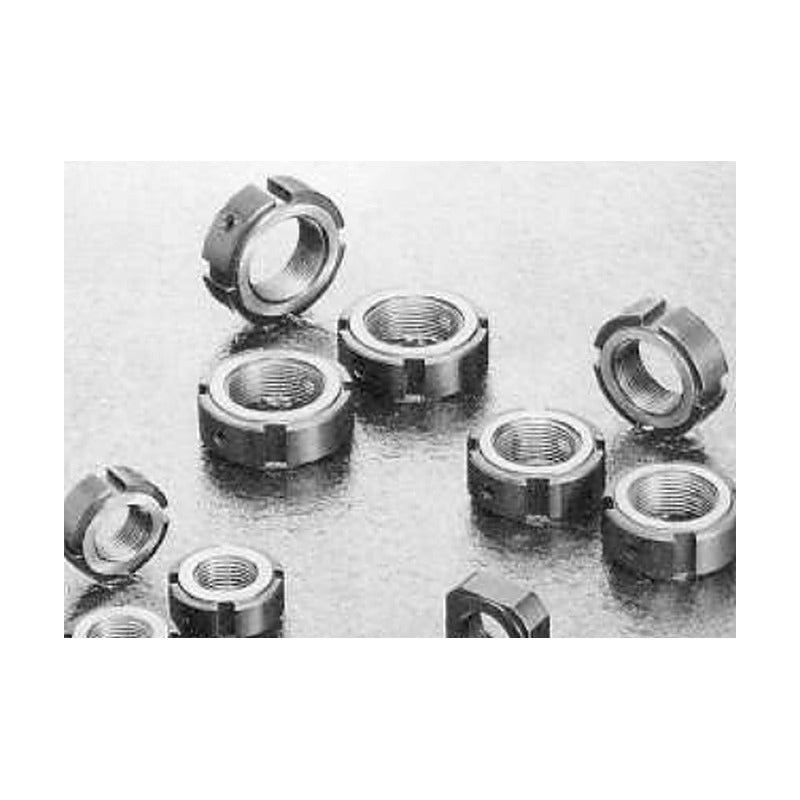

ISSOKU NL/PL Lock Nuts for Ball Screw Shaft Ends

ISSOKU NL/PL Lock Nuts for Ball Screw Shaft Ends

ISSOKU N-type (NL) and P-type (PL) lock nuts for securing bearings on ball screw shaft ends.

Key features

  • N-type lock nuts M6 to M20
  • P-type lock nuts M6 to M35
  • Fine metric threads
  • N-type nut included with ISSOKU support units and miniature screws (dia 8 and below)

Specifications

Brand ISSOKU
Product type Lock Nuts & Washers
Series NL/PL
Designations listed 16
Units mm
Source ISSOKU Ball Screw catalogue (HANSAN edition), p. 322
NL-06 Type: N type | Thread: M6x0.5 | Outer dia: 14 mm
NL-08 Type: N type | Thread: M8x0.75 | Outer dia: 16 mm
NL-10 Type: N type | Thread: M10x0.75 | Outer dia: 20 mm
NL-12 Type: N type | Thread: M12x1.0 | Outer dia: 22 mm
NL-15 Type: N type | Thread: M15x1.0 | Outer dia: 25 mm
NL-20 Type: N type | Thread: M20x1.0 | Outer dia: 35 mm
PL-06 Type: P type | Thread: M6x0.5 | Outer dia: 16 mm
PL-08 Type: P type | Thread: M8x0.75 | Outer dia: 16 mm
PL-10 Type: P type | Thread: M10x0.75 | Outer dia: 18 mm
PL-12 Type: P type | Thread: M12x1.0 | Outer dia: 22 mm
PL-15 Type: P type | Thread: M15x1.0 | Outer dia: 25 mm
PL-17 Type: P type | Thread: M17x1.0 | Outer dia: 28 mm
PL-20 Type: P type | Thread: M20x1.0 | Outer dia: 32 mm
PL-25 Type: P type | Thread: M25x1.5 | Outer dia: 38 mm
PL-30 Type: P type | Thread: M30x1.5 | Outer dia: 45 mm
PL-35 Type: P type | Thread: M35x1.5 | Outer dia: 52 mm
Lock Nuts & WashersISSOKU
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ISSOKU NL/PL Lock Nuts for Ball Screw Shaft Ends

Brand ISSOKU·Lock Nuts & Washers

Available part numbers (16)

NL-06, NL-08, NL-10, NL-12, NL-15, NL-20, PL-06, PL-08, PL-10, PL-12 + 6 more — see full table ↓

How to order

Send the ISSOKU part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NL-06Type: N type | Thread: M6x0.5 | Outer dia: 14 mm
NL-08Type: N type | Thread: M8x0.75 | Outer dia: 16 mm
NL-10Type: N type | Thread: M10x0.75 | Outer dia: 20 mm
NL-12Type: N type | Thread: M12x1.0 | Outer dia: 22 mm
NL-15Type: N type | Thread: M15x1.0 | Outer dia: 25 mm
NL-20Type: N type | Thread: M20x1.0 | Outer dia: 35 mm
PL-06Type: P type | Thread: M6x0.5 | Outer dia: 16 mm
PL-08Type: P type | Thread: M8x0.75 | Outer dia: 16 mm
PL-10Type: P type | Thread: M10x0.75 | Outer dia: 18 mm
PL-12Type: P type | Thread: M12x1.0 | Outer dia: 22 mm
PL-15Type: P type | Thread: M15x1.0 | Outer dia: 25 mm
PL-17Type: P type | Thread: M17x1.0 | Outer dia: 28 mm
PL-20Type: P type | Thread: M20x1.0 | Outer dia: 32 mm
PL-25Type: P type | Thread: M25x1.5 | Outer dia: 38 mm
PL-30Type: P type | Thread: M30x1.5 | Outer dia: 45 mm
PL-35Type: P type | Thread: M35x1.5 | Outer dia: 52 mm
