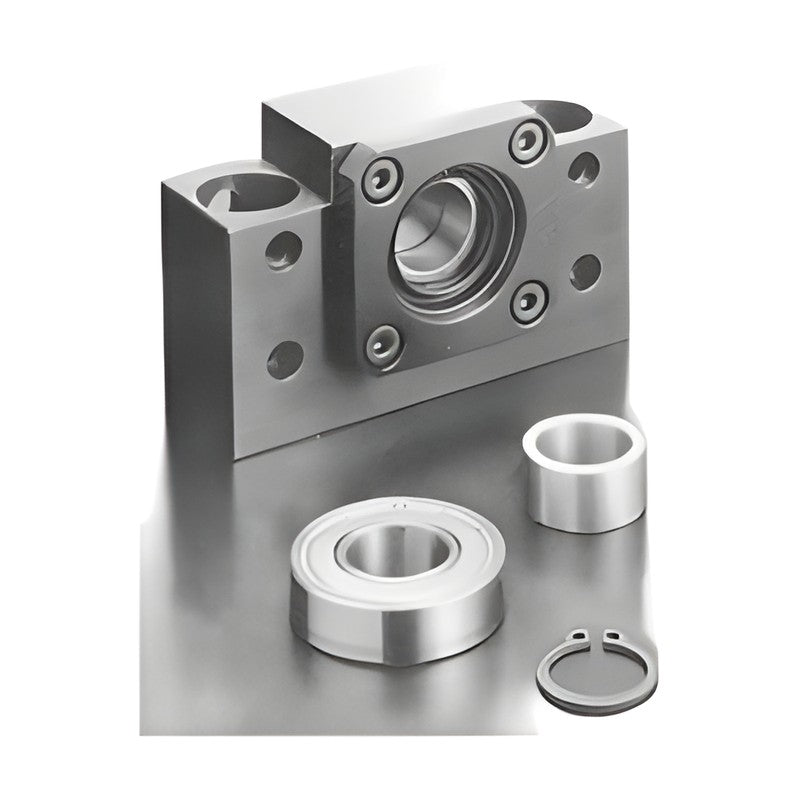

ISSOKU SPU/RPU Ball Screw Support Units (sizes 08-20)

ISSOKU SPU (S series) and RPU (R series) support units for ball screw ends: F types with angular contact bearing pairs on the fixed side, S types with deep groove bearings on the support side.

Key features

Fixed-side units with DF-paired angular contact bearings
Support-side units with deep groove ball bearing and snap ring
Lock nut included with fixed-side units
Sizes 08 to 20

Specifications

Application	Ball screw shaft end support
Fixed side bearing	Angular contact pair, DF, P5
Brand	ISSOKU
Product type	Mounted Bearing Units
Series	SPU/RPU
Designations listed	20
Source	ISSOKU Ball Screw catalogue (HANSAN edition), p. 311-321

SPU-08F		Side: Fixed side \| Shaft size: 08 \| Bearing: 708ATDFC8P5
SPU-08S		Side: Support side \| Shaft size: 08 \| Bearing: 606ZZ
SPU-10F		Side: Fixed side \| Shaft size: 10 \| Bearing: 7000ATDFC8P5
SPU-10S		Side: Support side \| Shaft size: 10 \| Bearing: 608ZZ
SPU-12F		Side: Fixed side \| Shaft size: 12 \| Bearing: 7001ATDFC8P5
SPU-12S		Side: Support side \| Shaft size: 12 \| Bearing: 6000ZZ
SPU-15F		Side: Fixed side \| Shaft size: 15 \| Bearing: 7002ATDFC8P5
SPU-15S		Side: Support side \| Shaft size: 15 \| Bearing: 6002ZZ
SPU-20F		Side: Fixed side \| Shaft size: 20 \| Bearing: 7204ATDFC8P5
SPU-20S		Side: Support side \| Shaft size: 20 \| Bearing: 6204ZZ
RPU-08F		Side: Fixed side \| Shaft size: 08 \| Bearing: 708ATDFC8P5
RPU-08S		Side: Support side \| Shaft size: 08 \| Bearing: 606ZZ
RPU-10F		Side: Fixed side \| Shaft size: 10 \| Bearing: 7000ATDFC8P5
RPU-10S		Side: Support side \| Shaft size: 10 \| Bearing: 608ZZ
RPU-12F		Side: Fixed side \| Shaft size: 12 \| Bearing: 7001ATDFC8P5
RPU-12S		Side: Support side \| Shaft size: 12 \| Bearing: 6000ZZ
RPU-15F		Side: Fixed side \| Shaft size: 15 \| Bearing: 7002ATDFC8P5
RPU-15S		Side: Support side \| Shaft size: 15 \| Bearing: 6002ZZ
RPU-20F		Side: Fixed side \| Shaft size: 20 \| Bearing: 7204ATDFC8P5
RPU-20S		Side: Support side \| Shaft size: 20 \| Bearing: 6204ZZ

Mounted Bearing UnitsISSOKU

20 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ISSOKU SPU/RPU Ball Screw Support Units (sizes 08-20)

Brand ISSOKU·Mounted Bearing Units

Available part numbers (20)

SPU-08F, SPU-08S, SPU-10F, SPU-10S, SPU-12F, SPU-12S, SPU-15F, SPU-15S, SPU-20F, SPU-20S + 10 more — see full table ↓
