JIB H2300 / HS / HE Adapter Sleeves for UK Bearing Units

JIB H2300 / HS / HE Adapter Sleeves for UK Bearing Units

JIB H2300-series adapter sleeve assemblies with lock nut and washer for UK tapered-bore insert bearings, in metric (H) and inch (HS / HE) shaft sizes.

Key features

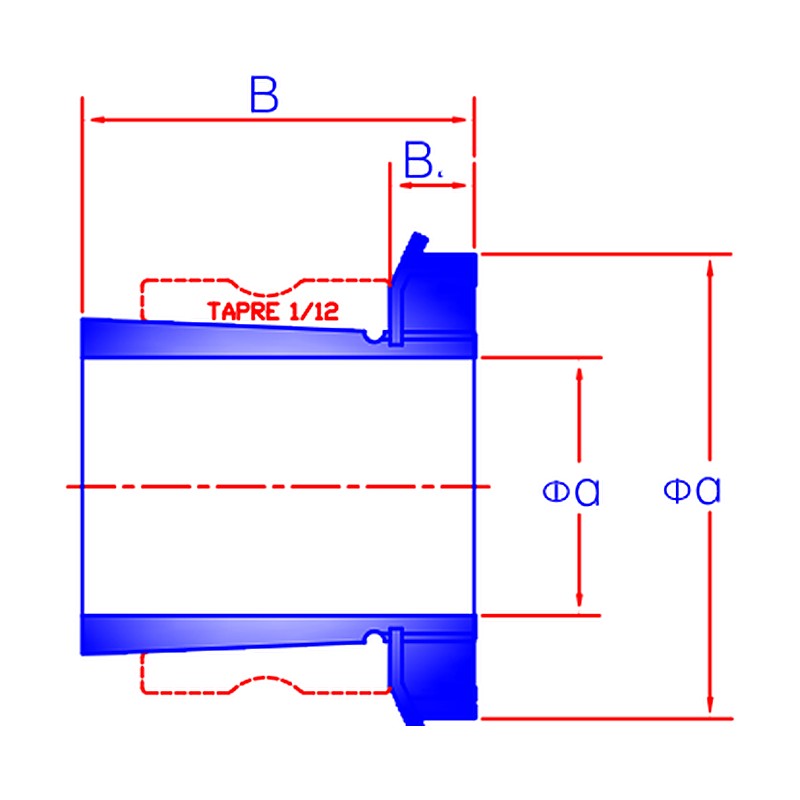

  • Slotted tapered (1:12) sleeve with AN lock nut and AW washer
  • H = metric shaft; HS / HE = inch shafts
  • For UK insert bearings in pillow block, flange and take-up housings
  • Sleeve, nut and washer designations listed per size

Specifications

Product Adapter sleeve assembly
Series H2300
Taper 1:12
Brand JIB
Product type Bearing Accessories
Source JIB Ball Bearing Units catalogue, p. 124
HE2305X Shaft d1: 3/4 in | B1: 35 mm | Lock nut: AN05 | Mass: 0.085 kg
H2305X Shaft d1: 20 mm | B1: 35 mm | Lock nut: AN05 | Mass: 0.095 kg
H2306X Shaft d1: 25 mm | B1: 38 mm | Lock nut: AN06 | Mass: 0.13 kg
HE2306X Shaft d1: 1 in | B1: 38 mm | Lock nut: AN06 | Mass: 0.12 kg
HS2307X Shaft d1: 1-1/8 in | B1: 43 mm | Lock nut: AN07 | Mass: 0.19 kg
H2307X Shaft d1: 30 mm | B1: 43 mm | Lock nut: AN07 | Mass: 0.17 kg
HE2308X Shaft d1: 1-1/4 in | B1: 46 mm | Lock nut: AN08 | Mass: 0.28 kg
HS2308X Shaft d1: 1-3/8 in | B1: 46 mm | Lock nut: AN08 | Mass: 0.22 kg
H2308X Shaft d1: 35 mm | B1: 46 mm | Lock nut: AN08 | Mass: 0.22 kg
HE2309X Shaft d1: 1-1/2 in | B1: 50 mm | Lock nut: AN09 | Mass: 0.32 kg
H2309X Shaft d1: 40 mm | B1: 50 mm | Lock nut: AN09 | Mass: 0.28 kg
HS2309X Shaft d1: 1-5/8 in | B1: 50 mm | Lock nut: AN09 | Mass: 0.25 kg
HE2310X Shaft d1: 1-3/4 in | B1: 55 mm | Lock nut: AN10 | Mass: 0.37 kg
H2310X Shaft d1: 45 mm | B1: 55 mm | Lock nut: AN10 | Mass: 0.36 kg
HE2311X Shaft d1: 1-7/8 in | B1: 59 mm | Lock nut: AN11 | Mass: 0.5 kg
H2311X Shaft d1: 50 mm | B1: 59 mm | Lock nut: AN11 | Mass: 0.42 kg
HS2311X Shaft d1: 2 in | B1: 59 mm | Lock nut: AN11 | Mass: 0.4 kg
HE2312X Shaft d1: 2-1/8 in | B1: 62 mm | Lock nut: AN12 | Mass: 0.52 kg
H2312X Shaft d1: 55 mm | B1: 62 mm | Lock nut: AN12 | Mass: 0.48 kg
HE2313X Shaft d1: 2-1/4 in | B1: 65 mm | Lock nut: AN13 | Mass: 0.69 kg
H2313X Shaft d1: 60 mm | B1: 65 mm | Lock nut: AN13 | Mass: 0.56 kg
HS2313X Shaft d1: 2-3/8 in | B1: 65 mm | Lock nut: AN13 | Mass: 0.55 kg
HE2315X Shaft d1: 2-1/2 in | B1: 73 mm | Lock nut: AN15 | Mass: 1.15 kg
H2315X Shaft d1: 65 mm | B1: 73 mm | Lock nut: AN15 | Mass: 1.05 kg
HE2316X Shaft d1: 2-3/4 in | B1: 78 mm | Lock nut: AN16 | Mass: 1.3 kg
H2316X Shaft d1: 70 mm | B1: 78 mm | Lock nut: AN16 | Mass: 1.3 kg
H2317X Shaft d1: 75 mm | B1: 82 mm | Lock nut: AN17 | Mass: 1.45 kg
HE2317X Shaft d1: 3 in | B1: 82 mm | Lock nut: AN17 | Mass: 1.35 kg
H2318X Shaft d1: 80 mm | B1: 86 mm | Lock nut: AN18 | Mass: 1.7 kg
HE2319X Shaft d1: 3-1/4 in | B1: 90 mm | Lock nut: AN19 | Mass: 2.15 kg
H2319X Shaft d1: 85 mm | B1: 90 mm | Lock nut: AN19 | Mass: 1.95 kg
HE2320X Shaft d1: 3-1/2 in | B1: 97 mm | Lock nut: AN20 | Mass: 2.3 kg
H2320X Shaft d1: 90 mm | B1: 97 mm | Lock nut: AN20 | Mass: 2.2 kg
H2322X Shaft d1: 100 mm | B1: 105 mm | Lock nut: AN22 | Mass: 2.75 kg
HE2322X Shaft d1: 4 in | B1: 105 mm | Lock nut: AN22 | Mass: 2.55 kg
H2324X Shaft d1: 110 mm | B1: 112 mm | Lock nut: AN24 | Mass: 3.2 kg
HE2326X Shaft d1: 4-1/2 in | B1: 121 mm | Lock nut: AN26 | Mass: 4.7 kg
H2326X Shaft d1: 115 mm | B1: 121 mm | Lock nut: AN26 | Mass: 4.6 kg
H2328X Shaft d1: 125 mm | B1: 131 mm | Lock nut: AN28 | Mass: 5.5 kg
Bearing AccessoriesJIB
39 product codes available in this family
