JIB H300 / HS / HE Adapter Sleeves for UK Bearing Units

JIB H300 / HS / HE Adapter Sleeves for UK Bearing Units

JIB H300-series adapter sleeve assemblies with lock nut and washer for UK tapered-bore insert bearings, in metric (H) and inch (HS / HE) shaft sizes.

Key features

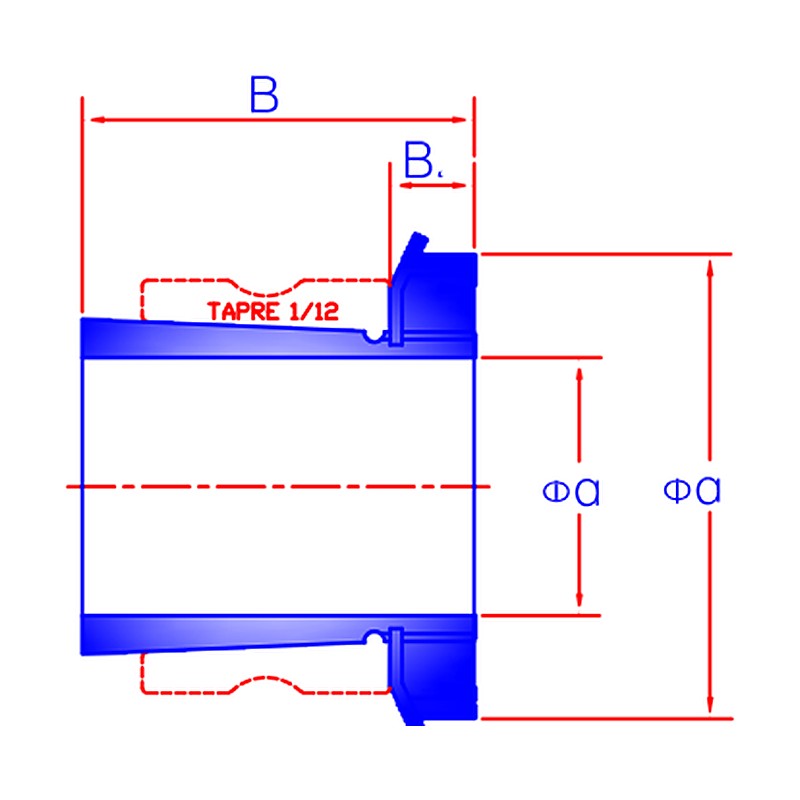

  • Slotted tapered (1:12) sleeve with AN lock nut and AW washer
  • H = metric shaft; HS / HE = inch shafts
  • For UK insert bearings in pillow block, flange and take-up housings
  • Sleeve, nut and washer designations listed per size

Specifications

Product Adapter sleeve assembly
Series H300
Taper 1:12
Brand JIB
Product type Bearing Accessories
Source JIB Ball Bearing Units catalogue, p. 125
HE305X Shaft d1: 3/4 in | B1: 29 mm | Lock nut: AN05 | Mass: 0.08 kg
H305X Shaft d1: 20 mm | B1: 29 mm | Lock nut: AN05 | Mass: 0.075 kg
H306X Shaft d1: 25 mm | B1: 31 mm | Lock nut: AN06 | Mass: 0.11 kg
HE306X Shaft d1: 1 in | B1: 31 mm | Lock nut: AN06 | Mass: 0.105 kg
HS307X Shaft d1: 1-1/8 in | B1: 35 mm | Lock nut: AN07 | Mass: 0.15 kg
H307X Shaft d1: 30 mm | B1: 35 mm | Lock nut: AN07 | Mass: 0.14 kg
HE308X Shaft d1: 1-1/4 in | B1: 36 mm | Lock nut: AN08 | Mass: 0.23 kg
HS308X Shaft d1: 1-3/8 in | B1: 36 mm | Lock nut: AN08 | Mass: 0.19 kg
H308X Shaft d1: 35 mm | B1: 36 mm | Lock nut: AN08 | Mass: 0.19 kg
HE309X Shaft d1: 1-1/2 in | B1: 39 mm | Lock nut: AN09 | Mass: 0.28 kg
H309X Shaft d1: 40 mm | B1: 39 mm | Lock nut: AN09 | Mass: 0.25 kg
HS309X Shaft d1: 1-5/8 in | B1: 39 mm | Lock nut: AN09 | Mass: 0.23 kg
HE310X Shaft d1: 1-3/4 in | B1: 42 mm | Lock nut: AN10 | Mass: 0.31 kg
H310X Shaft d1: 45 mm | B1: 42 mm | Lock nut: AN10 | Mass: 0.3 kg
HE311X Shaft d1: 1-7/8 in | B1: 45 mm | Lock nut: AN11 | Mass: 0.41 kg
H311X Shaft d1: 50 mm | B1: 45 mm | Lock nut: AN11 | Mass: 0.35 kg
HS311X Shaft d1: 2 in | B1: 45 mm | Lock nut: AN11 | Mass: 0.33 kg
HE312X Shaft d1: 2-1/8 in | B1: 47 mm | Lock nut: AN12 | Mass: 0.4 kg
H312X Shaft d1: 55 mm | B1: 47 mm | Lock nut: AN12 | Mass: 0.43 kg
HE313X Shaft d1: 2-1/4 in | B1: 50 mm | Lock nut: AN13 | Mass: 0.56 kg
H313X Shaft d1: 60 mm | B1: 50 mm | Lock nut: AN13 | Mass: 0.46 kg
HS313X Shaft d1: 2-3/8 in | B1: 50 mm | Lock nut: AN13 | Mass: 0.45 kg
HE315X Shaft d1: 2-1/2 in | B1: 55 mm | Lock nut: AN15 | Mass: 0.89 kg
H315X Shaft d1: 65 mm | B1: 55 mm | Lock nut: AN15 | Mass: 0.83 kg
HE316X Shaft d1: 2-3/4 in | B1: 59 mm | Lock nut: AN16 | Mass: 1.05 kg
H316X Shaft d1: 70 mm | B1: 59 mm | Lock nut: AN16 | Mass: 1.05 kg
H317X Shaft d1: 75 mm | B1: 63 mm | Lock nut: AN17 | Mass: 1.2 kg
HE317X Shaft d1: 3 in | B1: 63 mm | Lock nut: AN17 | Mass: 1.1 kg
H318X Shaft d1: 80 mm | B1: 65 mm | Lock nut: AN18 | Mass: 1.4 kg
