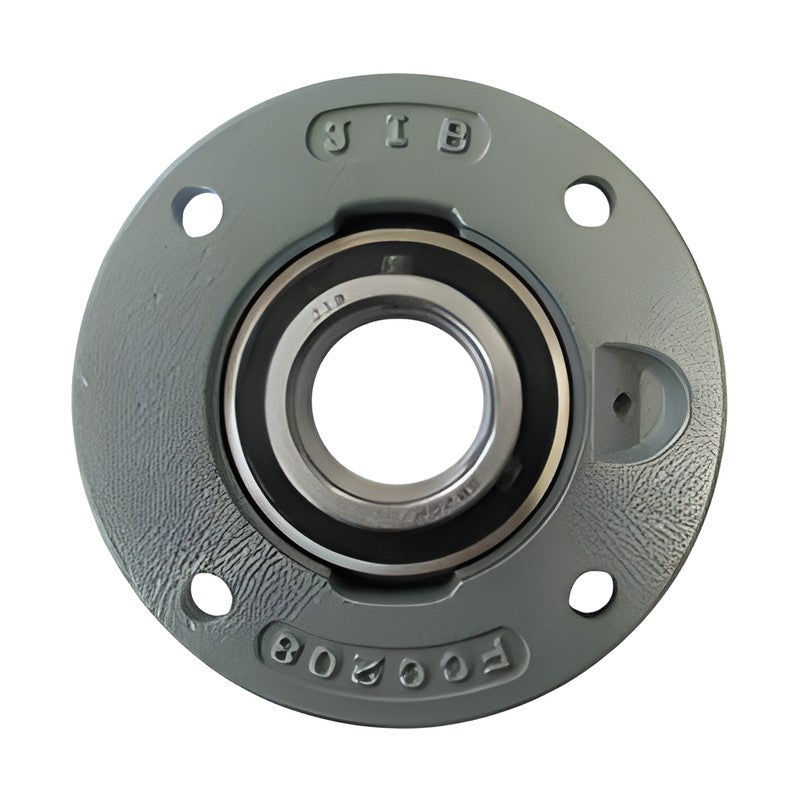

JIB HCFCC2 Round Flange Units (Light Series, Eccentric Collar)

JIB HCFCC2 Round Flange Units (Light Series, Eccentric Collar)

JIB HCFCC2 round flange units combine a compact round flange cartridge (FCC) housing with a HC eccentric locking collar insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Compact round flange cartridge (FCC) housing with eccentric locking collar insert
  • Fitted with HC eccentric locking collar insert bearing
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product Mounted ball bearing unit (round flange unit)
Unit series HCFCC2
Housing compact round flange cartridge (FCC) housing
Insert bearing HC eccentric locking collar insert bearing
Codes 37 sizes
Source JIB Ball Bearing Units catalogue, p. 99
HCFCC201 Shaft: 12 mm | Bearing: HC201 | Housing: FCC204 | Mass: 0.63 kg
HCFCC201-8 Shaft: 1/2 in | Bearing: HC201-8 | Housing: FCC204 | Mass: 0.63 kg
HCFCC202 Shaft: 15 mm | Bearing: HC202 | Housing: FCC204 | Mass: 0.63 kg
HCFCC202-10 Shaft: 5/8 in | Bearing: HC202-10 | Housing: FCC204 | Mass: 0.63 kg
HCFCC203 Shaft: 17 mm | Bearing: HC203 | Housing: FCC204 | Mass: 0.63 kg
HCFCC204-12 Shaft: 3/4 in | Bearing: HC204-12 | Housing: FCC204 | Mass: 0.63 kg
HCFCC204 Shaft: 20 mm | Bearing: HC204 | Housing: FCC204 | Mass: 0.63 kg
HCFCC205-14 Shaft: 7/8 in | Bearing: HC205-14 | Housing: FCC205 | Mass: 0.83 kg
HCFCC205-15 Shaft: 15/16 in | Bearing: HC205-15 | Housing: FCC205 | Mass: 0.83 kg
HCFCC205 Shaft: 25 mm | Bearing: HC205 | Housing: FCC205 | Mass: 0.83 kg
HCFCC205-16 Shaft: 1 in | Bearing: HC205-16 | Housing: FCC205 | Mass: 0.83 kg
HCFCC206-18 Shaft: 1-1/8 in | Bearing: HC206-18 | Housing: FCC206 | Mass: 1.06 kg
HCFCC206 Shaft: 30 mm | Bearing: HC206 | Housing: FCC206 | Mass: 1.06 kg
HCFCC206-19 Shaft: 1-3/16 in | Bearing: HC206-19 | Housing: FCC206 | Mass: 1.06 kg
HCFCC207-20 Shaft: 1-1/4 in | Bearing: HC207-20 | Housing: FCC207 | Mass: 1.36 kg
HCFCC207-21 Shaft: 1-5/16 in | Bearing: HC207-21 | Housing: FCC207 | Mass: 1.36 kg
HCFCC207-22 Shaft: 1-3/8 in | Bearing: HC207-22 | Housing: FCC207 | Mass: 1.36 kg
HCFCC207 Shaft: 35 mm | Bearing: HC207 | Housing: FCC207 | Mass: 1.36 kg
HCFCC207-23 Shaft: 1-7/16 in | Bearing: HC207-23 | Housing: FCC207 | Mass: 1.36 kg
HCFCC208-24 Shaft: 1-1/2 in | Bearing: HC208-24 | Housing: FCC208 | Mass: 1.82 kg
HCFCC208-25 Shaft: 1-9/16 in | Bearing: HC208-25 | Housing: FCC208 | Mass: 1.82 kg
HCFCC208 Shaft: 40 mm | Bearing: HC208 | Housing: FCC208 | Mass: 1.82 kg
HCFCC209-26 Shaft: 1-5/8 in | Bearing: HC209-26 | Housing: FCC209 | Mass: 2.28 kg
HCFCC209-27 Shaft: 1-11/16 in | Bearing: HC209-27 | Housing: FCC209 | Mass: 2.28 kg
HCFCC209-28 Shaft: 1-3/4 in | Bearing: HC209-28 | Housing: FCC209 | Mass: 2.28 kg
HCFCC209 Shaft: 45 mm | Bearing: HC209 | Housing: FCC209 | Mass: 2.28 kg
HCFCC210-30 Shaft: 1-7/8 in | Bearing: HC210-30 | Housing: FCC210 | Mass: 2.44 kg
HCFCC210-31 Shaft: 1-15/16 in | Bearing: HC210-31 | Housing: FCC210 | Mass: 2.44 kg
HCFCC210 Shaft: 50 mm | Bearing: HC210 | Housing: FCC210 | Mass: 2.44 kg
HCFCC211-32 Shaft: 2 in | Bearing: HC211-32 | Housing: FCC211 | Mass: 3.5 kg
HCFCC211-34 Shaft: 2-1/8 in | Bearing: HC211-34 | Housing: FCC211 | Mass: 3.5 kg
HCFCC211 Shaft: 55 mm | Bearing: HC211 | Housing: FCC211 | Mass: 3.5 kg
HCFCC211-35 Shaft: 2-3/16 in | Bearing: HC211-35 | Housing: FCC211 | Mass: 3.5 kg
HCFCC212-36 Shaft: 2-1/4 in | Bearing: HC212-36 | Housing: FCC212 | Mass: 4.32 kg
HCFCC212 Shaft: 60 mm | Bearing: HC212 | Housing: FCC212 | Mass: 4.32 kg
HCFCC212-38 Shaft: 2-3/8 in | Bearing: HC212-38 | Housing: FCC212 | Mass: 4.32 kg
HCFCC212-39 Shaft: 2-7/16 in | Bearing: HC212-39 | Housing: FCC212 | Mass: 4.32 kg
