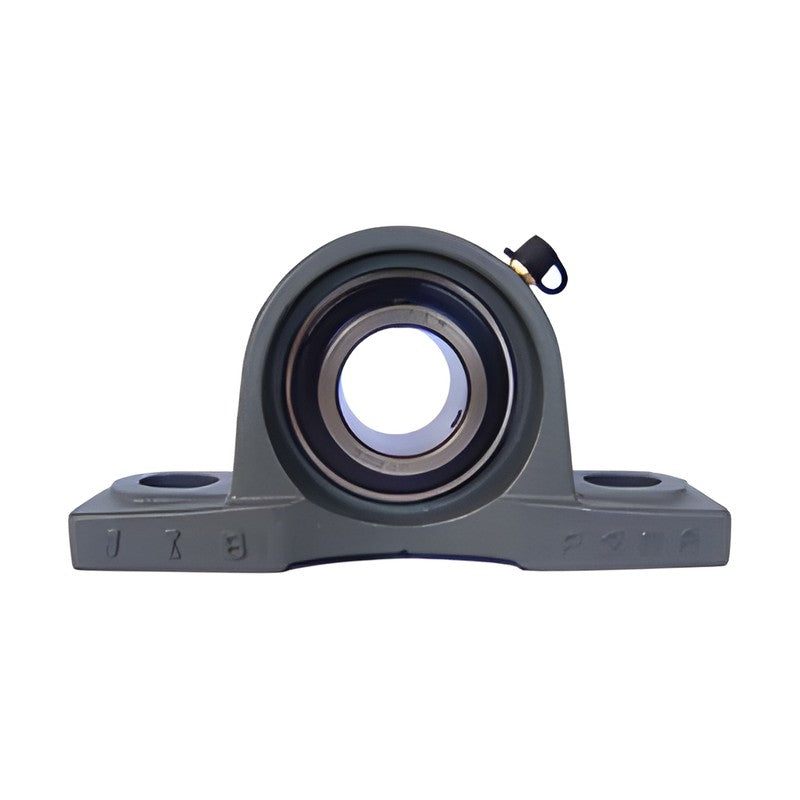

JIB HCP2 Pillow Block Units (Light Series, Eccentric Collar)

JIB HCP2 pillow block units combine a cast iron pillow block (P) housing with a HC eccentric locking collar insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

Cast iron pillow block (P) housing with eccentric locking collar insert
Fitted with HC eccentric locking collar insert bearing
Self-aligning spherical outside diameter compensates for shaft misalignment
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (pillow block unit)
Unit series	HCP2
Housing	cast iron pillow block (P) housing
Insert bearing	HC eccentric locking collar insert bearing
Codes	40 sizes
Source	JIB Ball Bearing Units catalogue, p. 98

HCP201		Shaft: 12 mm \| Bearing: HC201 \| Housing: P203 \| Mass: 0.71 kg
HCP201-8		Shaft: 1/2 in \| Bearing: HC201-8 \| Housing: P203 \| Mass: 0.71 kg
HCP202		Shaft: 15 mm \| Bearing: HC202 \| Housing: P203 \| Mass: 0.69 kg
HCP202-10		Shaft: 5/8 in \| Bearing: HC202-10 \| Housing: P203 \| Mass: 0.69 kg
HCP203		Shaft: 17 mm \| Bearing: HC203 \| Housing: P203 \| Mass: 0.68 kg
HCP204-12		Shaft: 3/4 in \| Bearing: HC204-12 \| Housing: P204 \| Mass: 0.73 kg
HCP204		Shaft: 20 mm \| Bearing: HC204 \| Housing: P204 \| Mass: 0.73 kg
HCP205-14		Shaft: 7/8 in \| Bearing: HC205-14 \| Housing: P205 \| Mass: 0.87 kg
HCP205-15		Shaft: 15/16 in \| Bearing: HC205-15 \| Housing: P205 \| Mass: 0.87 kg
HCP205		Shaft: 25 mm \| Bearing: HC205 \| Housing: P205 \| Mass: 0.87 kg
HCP205-16		Shaft: 1 in \| Bearing: HC205-16 \| Housing: P205 \| Mass: 0.87 kg
HCP206-18		Shaft: 1-1/8 in \| Bearing: HC206-18 \| Housing: P206 \| Mass: 1.4 kg
HCP206		Shaft: 30 mm \| Bearing: HC206 \| Housing: P206 \| Mass: 1.4 kg
HCP206-19		Shaft: 1-3/16 in \| Bearing: HC206-19 \| Housing: P206 \| Mass: 1.4 kg
HCP206-20		Shaft: 1-1/4 in \| Bearing: HC206-20 \| Housing: P206 \| Mass: 1.4 kg
HCP207-20		Shaft: 1-1/4 in \| Bearing: HC207-20 \| Housing: P207 \| Mass: 1.8 kg
HCP207-22		Shaft: 1-3/8 in \| Bearing: HC207-22 \| Housing: P207 \| Mass: 1.8 kg
HCP207		Shaft: 35 mm \| Bearing: HC207 \| Housing: P207 \| Mass: 1.8 kg
HCP207-23		Shaft: 1-7/16 in \| Bearing: HC207-23 \| Housing: P207 \| Mass: 1.8 kg
HCP208-24		Shaft: 1-1/2 in \| Bearing: HC208-24 \| Housing: P208 \| Mass: 2.1 kg
HCP208		Shaft: 40 mm \| Bearing: HC208 \| Housing: P208 \| Mass: 2.1 kg
HCP209-26		Shaft: 1-5/8 in \| Bearing: HC209-26 \| Housing: P209 \| Mass: 2.4 kg
HCP209-27		Shaft: 1-11/16 in \| Bearing: HC209-27 \| Housing: P209 \| Mass: 2.4 kg
HCP209-28		Shaft: 1-3/4 in \| Bearing: HC209-28 \| Housing: P209 \| Mass: 2.4 kg
HCP209		Shaft: 45 mm \| Bearing: HC209 \| Housing: P209 \| Mass: 2.4 kg
HCP210-31		Shaft: 1-15/16 in \| Bearing: HC210-31 \| Housing: P210 \| Mass: 3.1 kg
HCP210		Shaft: 50 mm \| Bearing: HC210 \| Housing: P210 \| Mass: 3.1 kg
HCP210-32		Shaft: 2 in \| Bearing: HC210-32 \| Housing: P210 \| Mass: 3.1 kg
HCP211-32		Shaft: 2 in \| Bearing: HC211-32 \| Housing: P211 \| Mass: 3.9 kg
HCP211		Shaft: 55 mm \| Bearing: HC211 \| Housing: P211 \| Mass: 3.9 kg
HCP211-35		Shaft: 2-3/16 in \| Bearing: HC211-35 \| Housing: P211 \| Mass: 3.9 kg
HCP212-36		Shaft: 2-1/4 in \| Bearing: HC212-36 \| Housing: P212 \| Mass: 5.2 kg
HCP212		Shaft: 60 mm \| Bearing: HC212 \| Housing: P212 \| Mass: 5.2 kg
HCP212-39		Shaft: 2-7/16 in \| Bearing: HC212-39 \| Housing: P212 \| Mass: 5.2 kg
HCP213-40		Shaft: 2-1/2 in \| Bearing: HC213-40 \| Housing: P213 \| Mass: 6.5 kg
HCP213		Shaft: 65 mm \| Bearing: HC213 \| Housing: P213 \| Mass: 6.5 kg
HCP214-44		Shaft: 2-3/4 in \| Bearing: HC214-44 \| Housing: P214 \| Mass: 7.26 kg
HCP214		Shaft: 70 mm \| Bearing: HC214 \| Housing: P214 \| Mass: 7.26 kg
HCP215-47		Shaft: 2-15/16 in \| Bearing: HC215-47 \| Housing: P215 \| Mass: 7.9 kg
HCP215		Shaft: 75 mm \| Bearing: HC215 \| Housing: P215 \| Mass: 7.9 kg

Mounted Bearing UnitsJIB

40 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB HCP2 Pillow Block Units (Light Series, Eccentric Collar)

Brand JIB·Mounted Bearing Units

Available part numbers (40)

HCP201, HCP201-8, HCP202, HCP202-10, HCP203, HCP204-12, HCP204, HCP205-14, HCP205-15, HCP205 + 30 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HCP201	Shaft: 12 mm \| Bearing: HC201 \| Housing: P203 \| Mass: 0.71 kg
	HCP201-8	Shaft: 1/2 in \| Bearing: HC201-8 \| Housing: P203 \| Mass: 0.71 kg
	HCP202	Shaft: 15 mm \| Bearing: HC202 \| Housing: P203 \| Mass: 0.69 kg
	HCP202-10	Shaft: 5/8 in \| Bearing: HC202-10 \| Housing: P203 \| Mass: 0.69 kg
	HCP203	Shaft: 17 mm \| Bearing: HC203 \| Housing: P203 \| Mass: 0.68 kg
	HCP204-12	Shaft: 3/4 in \| Bearing: HC204-12 \| Housing: P204 \| Mass: 0.73 kg
	HCP204	Shaft: 20 mm \| Bearing: HC204 \| Housing: P204 \| Mass: 0.73 kg
	HCP205-14	Shaft: 7/8 in \| Bearing: HC205-14 \| Housing: P205 \| Mass: 0.87 kg
	HCP205-15	Shaft: 15/16 in \| Bearing: HC205-15 \| Housing: P205 \| Mass: 0.87 kg
	HCP205	Shaft: 25 mm \| Bearing: HC205 \| Housing: P205 \| Mass: 0.87 kg
	HCP205-16	Shaft: 1 in \| Bearing: HC205-16 \| Housing: P205 \| Mass: 0.87 kg
	HCP206-18	Shaft: 1-1/8 in \| Bearing: HC206-18 \| Housing: P206 \| Mass: 1.4 kg
	HCP206	Shaft: 30 mm \| Bearing: HC206 \| Housing: P206 \| Mass: 1.4 kg
	HCP206-19	Shaft: 1-3/16 in \| Bearing: HC206-19 \| Housing: P206 \| Mass: 1.4 kg
	HCP206-20	Shaft: 1-1/4 in \| Bearing: HC206-20 \| Housing: P206 \| Mass: 1.4 kg
	HCP207-20	Shaft: 1-1/4 in \| Bearing: HC207-20 \| Housing: P207 \| Mass: 1.8 kg
	HCP207-22	Shaft: 1-3/8 in \| Bearing: HC207-22 \| Housing: P207 \| Mass: 1.8 kg
	HCP207	Shaft: 35 mm \| Bearing: HC207 \| Housing: P207 \| Mass: 1.8 kg
	HCP207-23	Shaft: 1-7/16 in \| Bearing: HC207-23 \| Housing: P207 \| Mass: 1.8 kg
	HCP208-24	Shaft: 1-1/2 in \| Bearing: HC208-24 \| Housing: P208 \| Mass: 2.1 kg
	HCP208	Shaft: 40 mm \| Bearing: HC208 \| Housing: P208 \| Mass: 2.1 kg
	HCP209-26	Shaft: 1-5/8 in \| Bearing: HC209-26 \| Housing: P209 \| Mass: 2.4 kg
	HCP209-27	Shaft: 1-11/16 in \| Bearing: HC209-27 \| Housing: P209 \| Mass: 2.4 kg
	HCP209-28	Shaft: 1-3/4 in \| Bearing: HC209-28 \| Housing: P209 \| Mass: 2.4 kg
	HCP209	Shaft: 45 mm \| Bearing: HC209 \| Housing: P209 \| Mass: 2.4 kg
	HCP210-31	Shaft: 1-15/16 in \| Bearing: HC210-31 \| Housing: P210 \| Mass: 3.1 kg
	HCP210	Shaft: 50 mm \| Bearing: HC210 \| Housing: P210 \| Mass: 3.1 kg
	HCP210-32	Shaft: 2 in \| Bearing: HC210-32 \| Housing: P210 \| Mass: 3.1 kg
	HCP211-32	Shaft: 2 in \| Bearing: HC211-32 \| Housing: P211 \| Mass: 3.9 kg
	HCP211	Shaft: 55 mm \| Bearing: HC211 \| Housing: P211 \| Mass: 3.9 kg
	HCP211-35	Shaft: 2-3/16 in \| Bearing: HC211-35 \| Housing: P211 \| Mass: 3.9 kg
	HCP212-36	Shaft: 2-1/4 in \| Bearing: HC212-36 \| Housing: P212 \| Mass: 5.2 kg
	HCP212	Shaft: 60 mm \| Bearing: HC212 \| Housing: P212 \| Mass: 5.2 kg
	HCP212-39	Shaft: 2-7/16 in \| Bearing: HC212-39 \| Housing: P212 \| Mass: 5.2 kg
	HCP213-40	Shaft: 2-1/2 in \| Bearing: HC213-40 \| Housing: P213 \| Mass: 6.5 kg
	HCP213	Shaft: 65 mm \| Bearing: HC213 \| Housing: P213 \| Mass: 6.5 kg
	HCP214-44	Shaft: 2-3/4 in \| Bearing: HC214-44 \| Housing: P214 \| Mass: 7.26 kg
	HCP214	Shaft: 70 mm \| Bearing: HC214 \| Housing: P214 \| Mass: 7.26 kg
	HCP215-47	Shaft: 2-15/16 in \| Bearing: HC215-47 \| Housing: P215 \| Mass: 7.9 kg
	HCP215	Shaft: 75 mm \| Bearing: HC215 \| Housing: P215 \| Mass: 7.9 kg

Need a different model, or a part not listed here? Send us your parts list →
