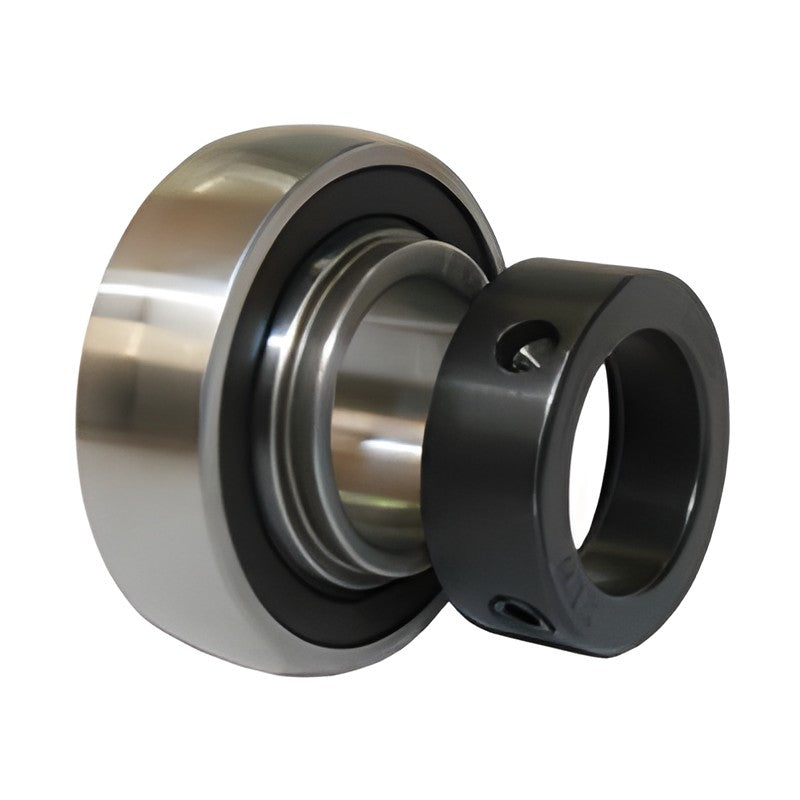

JIB SA2 / CSA2 Insert Bearings (Eccentric Collar)

JIB SA2 / CSA2 Insert Bearings (Eccentric Collar)

JIB SA2 insert ball bearings (eccentric locking collar, narrow light series) for use in mounted bearing unit housings.

Key features

  • Eccentric locking collar, narrow light series
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series SA2
Design eccentric locking collar, narrow light series
Sealing Sealed, pre-lubricated
Load rating unit kgf
Variants SA = standard inner ring; CSA = alternative inner ring execution (same dimensions table)
Source JIB Ball Bearing Units catalogue, p. 118
SA201 d: 12 mm | D: 40 mm | B: 28.6 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.13 kg
CSA201 d: 12 mm | D: 40 mm | B: 28.6 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.13 kg
SA201-8 d: 1/2 in | D: 40 mm | B: 28.6 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.13 kg
CSA201-8 d: 1/2 in | D: 40 mm | B: 28.6 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.13 kg
SA202 d: 15 mm | D: 40 mm | B: 28.6 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.13 kg
CSA202 d: 15 mm | D: 40 mm | B: 28.6 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.13 kg
SA202-10 d: 5/8 in | D: 40 mm | B: 28.6 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.13 kg
CSA202-10 d: 5/8 in | D: 40 mm | B: 28.6 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.13 kg
SA203 d: 17 mm | D: 40 mm | B: 28.6 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.13 kg
CSA203 d: 17 mm | D: 40 mm | B: 28.6 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.13 kg
SA204-12 d: 3/4 in | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 670 kgf | Mass: 0.15 kg
CSA204-12 d: 3/4 in | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 670 kgf | Mass: 0.15 kg
SA204 d: 20 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 670 kgf | Mass: 0.15 kg
CSA204 d: 20 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 670 kgf | Mass: 0.15 kg
SA205-14 d: 7/8 in | D: 52 mm | B: 31 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.22 kg
CSA205-14 d: 7/8 in | D: 52 mm | B: 31 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.22 kg
SA205 d: 25 mm | D: 52 mm | B: 31 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.22 kg
CSA205 d: 25 mm | D: 52 mm | B: 31 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.22 kg
SA205-16 d: 1 in | D: 52 mm | B: 31 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.22 kg
CSA205-16 d: 1 in | D: 52 mm | B: 31 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.22 kg
SA206-18 d: 1-1/8 in | D: 62 mm | B: 35.7 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.31 kg
CSA206-18 d: 1-1/8 in | D: 62 mm | B: 35.7 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.31 kg
SA206 d: 30 mm | D: 62 mm | B: 35.7 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.31 kg
CSA206 d: 30 mm | D: 62 mm | B: 35.7 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.31 kg
SA206-19 d: 1-3/16 in | D: 62 mm | B: 35.7 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.31 kg
CSA206-19 d: 1-3/16 in | D: 62 mm | B: 35.7 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.31 kg
SA206-20 d: 1-1/4 in | D: 62 mm | B: 35.7 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.31 kg
CSA206-20 d: 1-1/4 in | D: 62 mm | B: 35.7 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.31 kg
SA207-20 d: 1-1/4 in | D: 72 mm | B: 38.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.51 kg
CSA207-20 d: 1-1/4 in | D: 72 mm | B: 38.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.51 kg
SA207-22 d: 1-3/8 in | D: 72 mm | B: 38.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.51 kg
CSA207-22 d: 1-3/8 in | D: 72 mm | B: 38.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.51 kg
SA207 d: 35 mm | D: 72 mm | B: 38.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.51 kg
CSA207 d: 35 mm | D: 72 mm | B: 38.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.51 kg
SA207-23 d: 1-7/16 in | D: 72 mm | B: 38.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.51 kg
CSA207-23 d: 1-7/16 in | D: 72 mm | B: 38.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.51 kg
SA208-24 d: 1-1/2 in | D: 80 mm | B: 43.7 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.66 kg
CSA208-24 d: 1-1/2 in | D: 80 mm | B: 43.7 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.66 kg
SA208 d: 40 mm | D: 80 mm | B: 43.7 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.66 kg
CSA208 d: 40 mm | D: 80 mm | B: 43.7 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.66 kg
SA209-26 d: 1-5/8 in | D: 85 mm | B: 43.7 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.67 kg
CSA209-26 d: 1-5/8 in | D: 85 mm | B: 43.7 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.67 kg
SA209-27 d: 1-11/16 in | D: 85 mm | B: 43.7 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.67 kg
CSA209-27 d: 1-11/16 in | D: 85 mm | B: 43.7 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.67 kg
SA209-28 d: 1-3/4 in | D: 85 mm | B: 43.7 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.67 kg
CSA209-28 d: 1-3/4 in | D: 85 mm | B: 43.7 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.67 kg
SA209 d: 45 mm | D: 85 mm | B: 43.7 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.67 kg
CSA209 d: 45 mm | D: 85 mm | B: 43.7 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.67 kg
SA210-30 d: 1-7/8 in | D: 90 mm | B: 43.7 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.77 kg
CSA210-30 d: 1-7/8 in | D: 90 mm | B: 43.7 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.77 kg
SA210-31 d: 1-15/16 in | D: 90 mm | B: 43.7 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.77 kg
CSA210-31 d: 1-15/16 in | D: 90 mm | B: 43.7 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.77 kg
SA210 d: 50 mm | D: 90 mm | B: 43.7 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.77 kg
CSA210 d: 50 mm | D: 90 mm | B: 43.7 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.77 kg
SA210-32 d: 2 in | D: 90 mm | B: 43.7 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.77 kg
CSA210-32 d: 2 in | D: 90 mm | B: 43.7 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.77 kg
SA211-32 d: 2 in | D: 100 mm | B: 48.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.04 kg
CSA211-32 d: 2 in | D: 100 mm | B: 48.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.04 kg
SA211-34 d: 2-1/8 in | D: 100 mm | B: 48.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.04 kg
CSA211-34 d: 2-1/8 in | D: 100 mm | B: 48.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.04 kg
SA211 d: 55 mm | D: 100 mm | B: 48.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.04 kg
CSA211 d: 55 mm | D: 100 mm | B: 48.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.04 kg
SA211-35 d: 2-3/16 in | D: 100 mm | B: 48.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.04 kg
CSA211-35 d: 2-3/16 in | D: 100 mm | B: 48.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.04 kg
SA212-36 d: 2-1/4 in | D: 110 mm | B: 53.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.41 kg
CSA212-36 d: 2-1/4 in | D: 110 mm | B: 53.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.41 kg
SA212 d: 60 mm | D: 110 mm | B: 53.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.41 kg
CSA212 d: 60 mm | D: 110 mm | B: 53.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.41 kg
SA212-39 d: 2-7/16 in | D: 110 mm | B: 53.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.41 kg
CSA212-39 d: 2-7/16 in | D: 110 mm | B: 53.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.41 kg
