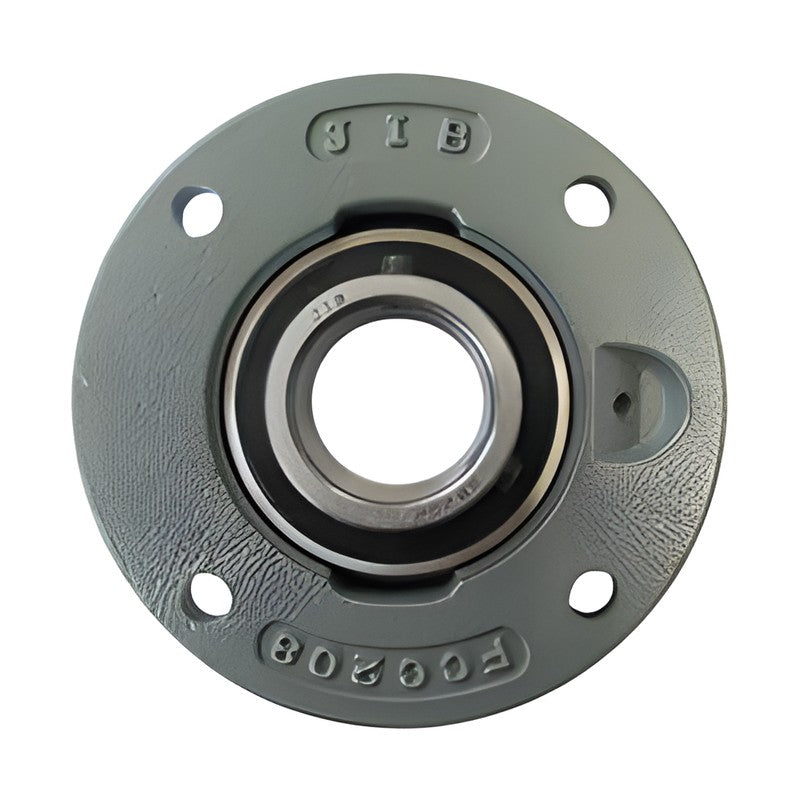

JIB SAFCC2 Round Flange Units (Light Series, Eccentric Collar)

JIB SAFCC2 round flange units combine a compact round flange cartridge (FCC) housing with a SA eccentric locking collar insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

Compact round flange cartridge (FCC) housing with SA eccentric-collar insert
Fitted with SA eccentric locking collar insert bearing
Compact light-duty unit for conveyors, agricultural and general machinery
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (round flange unit)
Unit series	SAFCC2
Housing	compact round flange cartridge (FCC) housing
Insert bearing	SA eccentric locking collar insert bearing
Codes	37 sizes
Source	JIB Ball Bearing Units catalogue, p. 101

SAFCC201		Shaft: 12 mm \| Bearing: SA201 \| Housing: FCC204 \| Mass: 0.53 kg
SAFCC201-8		Shaft: 1/2 in \| Bearing: SA201-8 \| Housing: FCC204 \| Mass: 0.53 kg
SAFCC202		Shaft: 15 mm \| Bearing: SA202 \| Housing: FCC204 \| Mass: 0.53 kg
SAFCC202-10		Shaft: 5/8 in \| Bearing: SA202-10 \| Housing: FCC204 \| Mass: 0.53 kg
SAFCC203		Shaft: 17 mm \| Bearing: SA203 \| Housing: FCC204 \| Mass: 0.53 kg
SAFCC204-12		Shaft: 3/4 in \| Bearing: SA204-12 \| Housing: FCC204 \| Mass: 0.53 kg
SAFCC204		Shaft: 20 mm \| Bearing: SA204 \| Housing: FCC204 \| Mass: 0.53 kg
SAFCC205-14		Shaft: 7/8 in \| Bearing: SA205-14 \| Housing: FCC205 \| Mass: 0.8 kg
SAFCC205-15		Shaft: 15/16 in \| Bearing: SA205-15 \| Housing: FCC205 \| Mass: 0.8 kg
SAFCC205		Shaft: 25 mm \| Bearing: SA205 \| Housing: FCC205 \| Mass: 0.8 kg
SAFCC205-16		Shaft: 1 in \| Bearing: SA205-16 \| Housing: FCC205 \| Mass: 0.8 kg
SAFCC206-18		Shaft: 1-1/8 in \| Bearing: SA206-18 \| Housing: FCC206 \| Mass: 0.95 kg
SAFCC206		Shaft: 30 mm \| Bearing: SA206 \| Housing: FCC206 \| Mass: 0.95 kg
SAFCC206-19		Shaft: 1-3/16 in \| Bearing: SA206-19 \| Housing: FCC206 \| Mass: 0.95 kg
SAFCC207-20		Shaft: 1-1/4 in \| Bearing: SA207-20 \| Housing: FCC207 \| Mass: 1.25 kg
SAFCC207-21		Shaft: 1-5/16 in \| Bearing: SA207-21 \| Housing: FCC207 \| Mass: 1.25 kg
SAFCC207-22		Shaft: 1-3/8 in \| Bearing: SA207-22 \| Housing: FCC207 \| Mass: 1.25 kg
SAFCC207		Shaft: 35 mm \| Bearing: SA207 \| Housing: FCC207 \| Mass: 1.25 kg
SAFCC207-23		Shaft: 1-7/16 in \| Bearing: SA207-23 \| Housing: FCC207 \| Mass: 1.25 kg
SAFCC208-24		Shaft: 1-1/2 in \| Bearing: SA208-24 \| Housing: FCC208 \| Mass: 1.68 kg
SAFCC208-25		Shaft: 1-9/16 in \| Bearing: SA208-25 \| Housing: FCC208 \| Mass: 1.68 kg
SAFCC208		Shaft: 40 mm \| Bearing: SA208 \| Housing: FCC208 \| Mass: 1.68 kg
SAFCC209-26		Shaft: 1-5/8 in \| Bearing: SA209-26 \| Housing: FCC209 \| Mass: 2.05 kg
SAFCC209-27		Shaft: 1-11/16 in \| Bearing: SA209-27 \| Housing: FCC209 \| Mass: 2.05 kg
SAFCC209-28		Shaft: 1-3/4 in \| Bearing: SA209-28 \| Housing: FCC209 \| Mass: 2.05 kg
SAFCC209		Shaft: 45 mm \| Bearing: SA209 \| Housing: FCC209 \| Mass: 2.05 kg
SAFCC210-30		Shaft: 1-7/8 in \| Bearing: SA210-30 \| Housing: FCC210 \| Mass: 2.19 kg
SAFCC210-31		Shaft: 1-15/16 in \| Bearing: SA210-31 \| Housing: FCC210 \| Mass: 2.19 kg
SAFCC210		Shaft: 50 mm \| Bearing: SA210 \| Housing: FCC210 \| Mass: 2.19 kg
SAFCC211-32		Shaft: 2 in \| Bearing: SA211-32 \| Housing: FCC211 \| Mass: 3.14 kg
SAFCC211-34		Shaft: 2-1/8 in \| Bearing: SA211-34 \| Housing: FCC211 \| Mass: 3.14 kg
SAFCC211		Shaft: 55 mm \| Bearing: SA211 \| Housing: FCC211 \| Mass: 3.14 kg
SAFCC211-35		Shaft: 2-3/16 in \| Bearing: SA211-35 \| Housing: FCC211 \| Mass: 3.14 kg
SAFCC212-36		Shaft: 2-1/4 in \| Bearing: SA212-36 \| Housing: FCC212 \| Mass: 3.83 kg
SAFCC212		Shaft: 60 mm \| Bearing: SA212 \| Housing: FCC212 \| Mass: 3.83 kg
SAFCC212-38		Shaft: 2-3/8 in \| Bearing: SA212-38 \| Housing: FCC212 \| Mass: 3.83 kg
SAFCC212-39		Shaft: 2-7/16 in \| Bearing: SA212-39 \| Housing: FCC212 \| Mass: 3.83 kg
