JIB SAPF2 Flange Units (Light Series, Eccentric Collar)

JIB SAPF2 Flange Units (Light Series, Eccentric Collar)

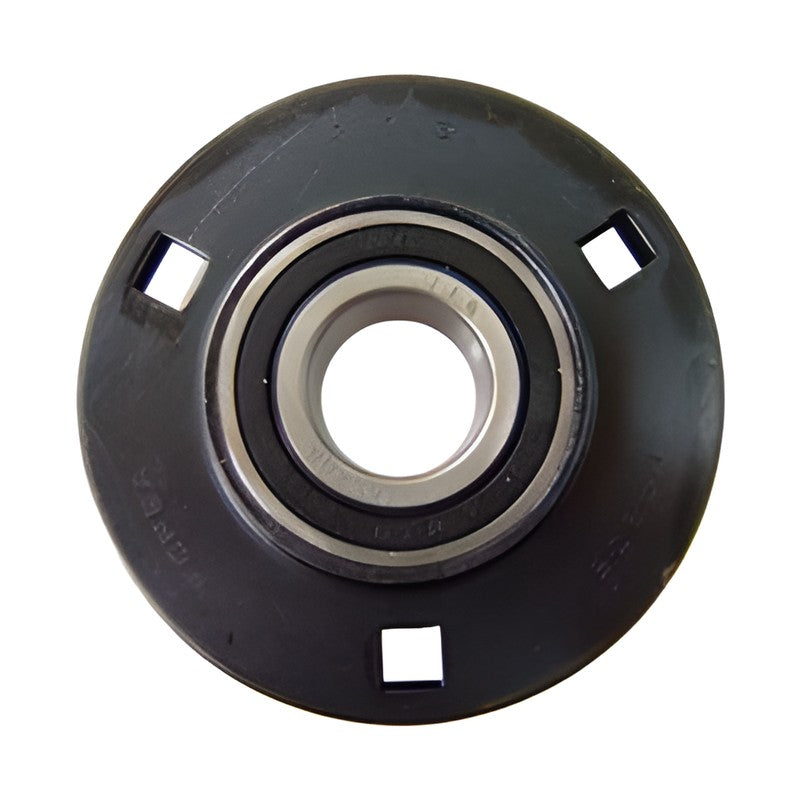

JIB SAPF2 flange units combine a pressed steel 3-bolt round flange (PF) housing with a SA eccentric locking collar insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Pressed steel 3-bolt round flange (PF) housing with SA eccentric-collar insert
  • Fitted with SA eccentric locking collar insert bearing
  • Compact light-duty unit for conveyors, agricultural and general machinery
  • Pre-greased, sealed deep groove ball bearing insert
  • Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product Mounted ball bearing unit (flange unit)
Unit series SAPF2
Housing pressed steel 3-bolt round flange (PF) housing
Insert bearing SA eccentric locking collar insert bearing
Codes 18 sizes
Source JIB Ball Bearing Units catalogue, p. 105
SAPF201 Shaft: 12 mm | Bearing: SA201 | Housing: PF203 | Mass: 0.3 kg
SAPF201-8 Shaft: 1/2 in | Bearing: SA201-8 | Housing: PF203 | Mass: 0.3 kg
SAPF202 Shaft: 15 mm | Bearing: SA202 | Housing: PF203 | Mass: 0.3 kg
SAPF202-10 Shaft: 5/8 in | Bearing: SA202-10 | Housing: PF203 | Mass: 0.3 kg
SAPF203 Shaft: 17 mm | Bearing: SA203 | Housing: PF203 | Mass: 0.3 kg
SAPF204-12 Shaft: 3/4 in | Bearing: SA204-12 | Housing: PF204 | Mass: 0.33 kg
SAPF204 Shaft: 20 mm | Bearing: SA204 | Housing: PF204 | Mass: 0.33 kg
SAPF205-14 Shaft: 7/8 in | Bearing: SA205-14 | Housing: PF205 | Mass: 0.42 kg
SAPF205 Shaft: 25 mm | Bearing: SA205 | Housing: PF205 | Mass: 0.42 kg
SAPF205-16 Shaft: 1 in | Bearing: SA205-16 | Housing: PF205 | Mass: 0.42 kg
SAPF206-18 Shaft: 1-1/8 in | Bearing: SA206-18 | Housing: PF206 | Mass: 0.65 kg
SAPF206 Shaft: 30 mm | Bearing: SA206 | Housing: PF206 | Mass: 0.65 kg
SAPF206-19 Shaft: 1-3/16 in | Bearing: SA206-19 | Housing: PF206 | Mass: 0.65 kg
SAPF206-20 Shaft: 1-1/4 in | Bearing: SA206-20 | Housing: PF206 | Mass: 0.65 kg
SAPF207-20 Shaft: 1-1/4 in | Bearing: SA207-20 | Housing: PF207 | Mass: 0.9 kg
SAPF207-22 Shaft: 1-3/8 in | Bearing: SA207-22 | Housing: PF207 | Mass: 0.9 kg
SAPF207 Shaft: 35 mm | Bearing: SA207 | Housing: PF207 | Mass: 0.9 kg
SAPF207-23 Shaft: 1-7/16 in | Bearing: SA207-23 | Housing: PF207 | Mass: 0.9 kg
Mounted Bearing UnitsJIB
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB SAPF2 Flange Units (Light Series, Eccentric Collar)

Brand JIB·Mounted Bearing Units

Available part numbers (18)

SAPF201, SAPF201-8, SAPF202, SAPF202-10, SAPF203, SAPF204-12, SAPF204, SAPF205-14, SAPF205, SAPF205-16 + 8 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SAPF201Shaft: 12 mm | Bearing: SA201 | Housing: PF203 | Mass: 0.3 kg
SAPF201-8Shaft: 1/2 in | Bearing: SA201-8 | Housing: PF203 | Mass: 0.3 kg
SAPF202Shaft: 15 mm | Bearing: SA202 | Housing: PF203 | Mass: 0.3 kg
SAPF202-10Shaft: 5/8 in | Bearing: SA202-10 | Housing: PF203 | Mass: 0.3 kg
SAPF203Shaft: 17 mm | Bearing: SA203 | Housing: PF203 | Mass: 0.3 kg
SAPF204-12Shaft: 3/4 in | Bearing: SA204-12 | Housing: PF204 | Mass: 0.33 kg
SAPF204Shaft: 20 mm | Bearing: SA204 | Housing: PF204 | Mass: 0.33 kg
SAPF205-14Shaft: 7/8 in | Bearing: SA205-14 | Housing: PF205 | Mass: 0.42 kg
SAPF205Shaft: 25 mm | Bearing: SA205 | Housing: PF205 | Mass: 0.42 kg
SAPF205-16Shaft: 1 in | Bearing: SA205-16 | Housing: PF205 | Mass: 0.42 kg
SAPF206-18Shaft: 1-1/8 in | Bearing: SA206-18 | Housing: PF206 | Mass: 0.65 kg
SAPF206Shaft: 30 mm | Bearing: SA206 | Housing: PF206 | Mass: 0.65 kg
SAPF206-19Shaft: 1-3/16 in | Bearing: SA206-19 | Housing: PF206 | Mass: 0.65 kg
SAPF206-20Shaft: 1-1/4 in | Bearing: SA206-20 | Housing: PF206 | Mass: 0.65 kg
SAPF207-20Shaft: 1-1/4 in | Bearing: SA207-20 | Housing: PF207 | Mass: 0.9 kg
SAPF207-22Shaft: 1-3/8 in | Bearing: SA207-22 | Housing: PF207 | Mass: 0.9 kg
SAPF207Shaft: 35 mm | Bearing: SA207 | Housing: PF207 | Mass: 0.9 kg
SAPF207-23Shaft: 1-7/16 in | Bearing: SA207-23 | Housing: PF207 | Mass: 0.9 kg
