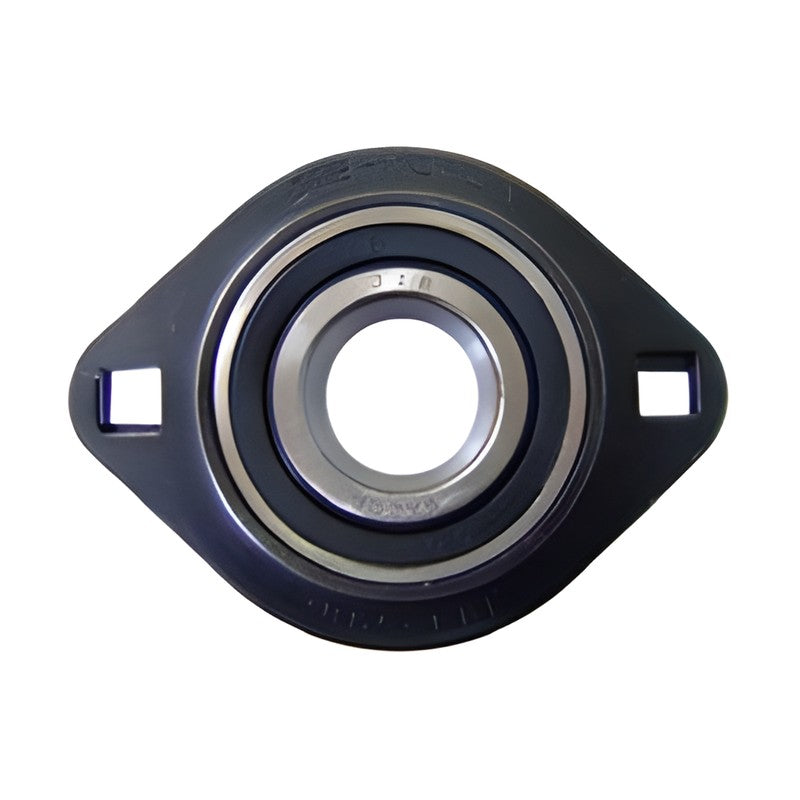

JIB SAPFL2 Flange Units (Light Series, Eccentric Collar)

JIB SAPFL2 flange units combine a pressed steel 2-bolt flange (PFL) housing with a SA eccentric locking collar insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

Pressed steel 2-bolt flange (PFL) housing with SA eccentric-collar insert
Fitted with SA eccentric locking collar insert bearing
Compact light-duty unit for conveyors, agricultural and general machinery
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (flange unit)
Unit series	SAPFL2
Housing	pressed steel 2-bolt flange (PFL) housing
Insert bearing	SA eccentric locking collar insert bearing
Codes	18 sizes
Source	JIB Ball Bearing Units catalogue, p. 106

SAPFL201		Shaft: 12 mm \| Bearing: SA201 \| Housing: PFL203 \| Mass: 0.22 kg
SAPFL201-8		Shaft: 1/2 in \| Bearing: SA201-8 \| Housing: PFL203 \| Mass: 0.22 kg
SAPFL202		Shaft: 15 mm \| Bearing: SA202 \| Housing: PFL203 \| Mass: 0.22 kg
SAPFL202-10		Shaft: 5/8 in \| Bearing: SA202-10 \| Housing: PFL203 \| Mass: 0.22 kg
SAPFL203		Shaft: 17 mm \| Bearing: SA203 \| Housing: PFL203 \| Mass: 0.22 kg
SAPFL204-12		Shaft: 3/4 in \| Bearing: SA204-12 \| Housing: PFL204 \| Mass: 0.24 kg
SAPFL204		Shaft: 20 mm \| Bearing: SA204 \| Housing: PFL204 \| Mass: 0.24 kg
SAPFL205-14		Shaft: 7/8 in \| Bearing: SA205-14 \| Housing: PFL205 \| Mass: 0.32 kg
SAPFL205		Shaft: 25 mm \| Bearing: SA205 \| Housing: PFL205 \| Mass: 0.32 kg
SAPFL205-16		Shaft: 1 in \| Bearing: SA205-16 \| Housing: PFL205 \| Mass: 0.32 kg
SAPFL206-18		Shaft: 1-1/8 in \| Bearing: SA206-18 \| Housing: PFL206 \| Mass: 0.41 kg
SAPFL206		Shaft: 30 mm \| Bearing: SA206 \| Housing: PFL206 \| Mass: 0.41 kg
SAPFL206-19		Shaft: 1-3/16 in \| Bearing: SA206-19 \| Housing: PFL206 \| Mass: 0.41 kg
SAPFL206-20		Shaft: 1-1/4 in \| Bearing: SA206-20 \| Housing: PFL206 \| Mass: 0.41 kg
SAPFL207-20		Shaft: 1-1/4 in \| Bearing: SA207-20 \| Housing: PFL207 \| Mass: 0.7 kg
SAPFL207-22		Shaft: 1-3/8 in \| Bearing: SA207-22 \| Housing: PFL207 \| Mass: 0.7 kg
SAPFL207		Shaft: 35 mm \| Bearing: SA207 \| Housing: PFL207 \| Mass: 0.7 kg
SAPFL207-23		Shaft: 1-7/16 in \| Bearing: SA207-23 \| Housing: PFL207 \| Mass: 0.7 kg
