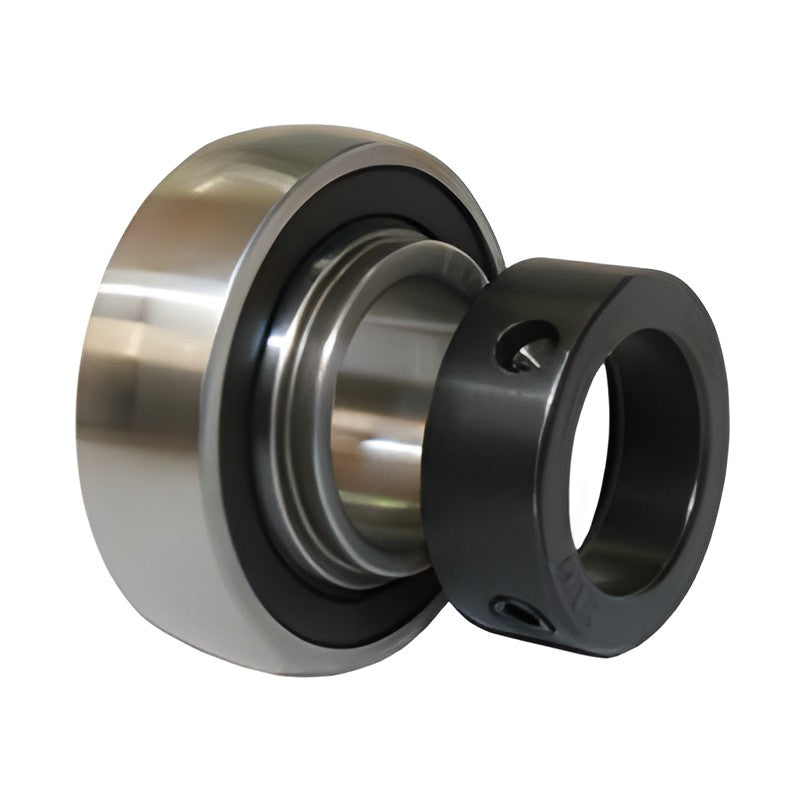

JIB SB2 / CSB2 Insert Bearings (Set Screw)

JIB SB2 / CSB2 Insert Bearings (Set Screw)

JIB SB2 insert ball bearings (set-screw locking, narrow light series) for use in mounted bearing unit housings.

Key features

  • Set-screw locking, narrow light series
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series SB2
Design set-screw locking, narrow light series
Sealing Sealed, pre-lubricated
Load rating unit kgf
Variants SB = standard inner ring; CSB = alternative inner ring execution (same dimensions table)
Source JIB Ball Bearing Units catalogue, p. 119
SB201 d: 12 mm | D: 40 mm | B: 22.5 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.1 kg
CSB201 d: 12 mm | D: 40 mm | B: 22.5 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.1 kg
SB201-8 d: 1/2 in | D: 40 mm | B: 22.5 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.1 kg
CSB201-8 d: 1/2 in | D: 40 mm | B: 22.5 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.1 kg
SB202 d: 15 mm | D: 40 mm | B: 22.5 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.1 kg
CSB202 d: 15 mm | D: 40 mm | B: 22.5 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.1 kg
SB202-10 d: 5/8 in | D: 40 mm | B: 22.5 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.1 kg
CSB202-10 d: 5/8 in | D: 40 mm | B: 22.5 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.1 kg
SB203 d: 17 mm | D: 40 mm | B: 22.5 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.1 kg
CSB203 d: 17 mm | D: 40 mm | B: 22.5 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.1 kg
SB204-12 d: 3/4 in | D: 47 mm | B: 25.5 mm | C: 1280 kgf | C0: 670 kgf | Mass: 0.15 kg
CSB204-12 d: 3/4 in | D: 47 mm | B: 25.5 mm | C: 1280 kgf | C0: 670 kgf | Mass: 0.15 kg
SB204 d: 20 mm | D: 47 mm | B: 25.5 mm | C: 1280 kgf | C0: 670 kgf | Mass: 0.15 kg
CSB204 d: 20 mm | D: 47 mm | B: 25.5 mm | C: 1280 kgf | C0: 670 kgf | Mass: 0.15 kg
SB205-14 d: 7/8 in | D: 52 mm | B: 27 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.16 kg
CSB205-14 d: 7/8 in | D: 52 mm | B: 27 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.16 kg
SB205 d: 25 mm | D: 52 mm | B: 27 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.16 kg
CSB205 d: 25 mm | D: 52 mm | B: 27 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.16 kg
SB205-16 d: 1 in | D: 52 mm | B: 27 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.16 kg
CSB205-16 d: 1 in | D: 52 mm | B: 27 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.16 kg
SB206-18 d: 1-1/8 in | D: 62 mm | B: 30 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.28 kg
CSB206-18 d: 1-1/8 in | D: 62 mm | B: 30 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.28 kg
SB206 d: 30 mm | D: 62 mm | B: 30 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.28 kg
CSB206 d: 30 mm | D: 62 mm | B: 30 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.28 kg
SB206-19 d: 1-3/16 in | D: 62 mm | B: 30 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.28 kg
CSB206-19 d: 1-3/16 in | D: 62 mm | B: 30 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.28 kg
SB207-20 d: 1-1/4 in | D: 72 mm | B: 35 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.38 kg
CSB207-20 d: 1-1/4 in | D: 72 mm | B: 35 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.38 kg
SB207-22 d: 1-3/8 in | D: 72 mm | B: 35 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.38 kg
CSB207-22 d: 1-3/8 in | D: 72 mm | B: 35 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.38 kg
SB207 d: 35 mm | D: 72 mm | B: 35 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.38 kg
CSB207 d: 35 mm | D: 72 mm | B: 35 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.38 kg
SB207-23 d: 1-7/16 in | D: 72 mm | B: 35 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.38 kg
CSB207-23 d: 1-7/16 in | D: 72 mm | B: 35 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.38 kg
SB208-24 d: 1-1/2 in | D: 80 mm | B: 40 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.55 kg
CSB208-24 d: 1-1/2 in | D: 80 mm | B: 40 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.55 kg
SB208 d: 40 mm | D: 80 mm | B: 40 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.55 kg
CSB208 d: 40 mm | D: 80 mm | B: 40 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.55 kg
SB209-26 d: 1-5/8 in | D: 85 mm | B: 41.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.58 kg
CSB209-26 d: 1-5/8 in | D: 85 mm | B: 41.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.58 kg
SB209-27 d: 1-11/16 in | D: 85 mm | B: 41.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.58 kg
CSB209-27 d: 1-11/16 in | D: 85 mm | B: 41.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.58 kg
SB209-28 d: 1-3/4 in | D: 85 mm | B: 41.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.58 kg
CSB209-28 d: 1-3/4 in | D: 85 mm | B: 41.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.58 kg
SB209 d: 45 mm | D: 85 mm | B: 41.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.58 kg
CSB209 d: 45 mm | D: 85 mm | B: 41.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.58 kg
SB210-30 d: 1-7/8 in | D: 90 mm | B: 43.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.72 kg
CSB210-30 d: 1-7/8 in | D: 90 mm | B: 43.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.72 kg
SB210-31 d: 1-15/16 in | D: 90 mm | B: 43.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.72 kg
CSB210-31 d: 1-15/16 in | D: 90 mm | B: 43.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.72 kg
SB210 d: 50 mm | D: 90 mm | B: 43.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.72 kg
CSB210 d: 50 mm | D: 90 mm | B: 43.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.72 kg
SB210-32 d: 2 in | D: 90 mm | B: 43.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.72 kg
CSB210-32 d: 2 in | D: 90 mm | B: 43.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.72 kg
SB211-32 d: 2 in | D: 100 mm | B: 45.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.99 kg
CSB211-32 d: 2 in | D: 100 mm | B: 45.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.99 kg
SB211 d: 55 mm | D: 100 mm | B: 45.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.99 kg
CSB211 d: 55 mm | D: 100 mm | B: 45.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.99 kg
SB211-34 d: 2-1/8 in | D: 100 mm | B: 45.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.99 kg
CSB211-34 d: 2-1/8 in | D: 100 mm | B: 45.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.99 kg
SB211-35 d: 2-3/16 in | D: 100 mm | B: 45.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.99 kg
CSB211-35 d: 2-3/16 in | D: 100 mm | B: 45.4 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.99 kg
SB212-36 d: 2-1/4 in | D: 110 mm | B: 53.2 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.26 kg
CSB212-36 d: 2-1/4 in | D: 110 mm | B: 53.2 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.26 kg
SB212 d: 60 mm | D: 110 mm | B: 53.2 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.26 kg
CSB212 d: 60 mm | D: 110 mm | B: 53.2 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.26 kg
SB212-38 d: 2-3/8 in | D: 110 mm | B: 53.2 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.26 kg
CSB212-38 d: 2-3/8 in | D: 110 mm | B: 53.2 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.26 kg
SB212-39 d: 2-7/16 in | D: 110 mm | B: 53.2 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.26 kg
CSB212-39 d: 2-7/16 in | D: 110 mm | B: 53.2 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.26 kg
