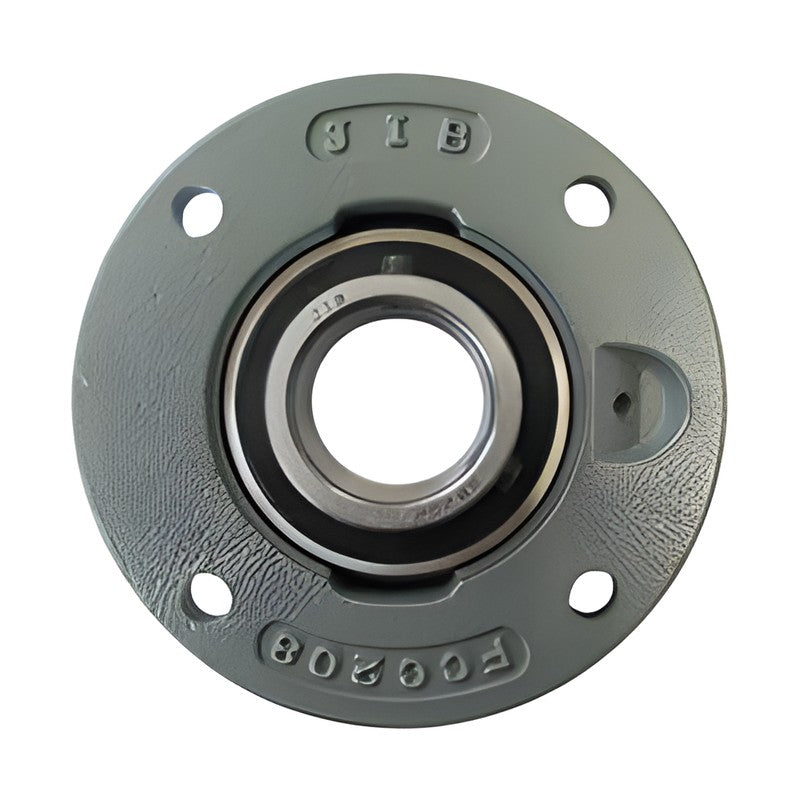

JIB SBFCC2 Round Flange Units (Light Series, Set Screw)

JIB SBFCC2 round flange units combine a compact round flange cartridge (FCC) housing with a SB set-screw insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

Compact round flange cartridge (FCC) housing with SB set-screw insert
Fitted with SB set-screw insert bearing
Compact light-duty unit for conveyors, agricultural and general machinery
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (round flange unit)
Unit series	SBFCC2
Housing	compact round flange cartridge (FCC) housing
Insert bearing	SB set-screw insert bearing
Codes	37 sizes
Source	JIB Ball Bearing Units catalogue, p. 102

SBFCC201		Shaft: 12 mm \| Bearing: SB201 \| Housing: FCC204 \| Mass: 0.53 kg
SBFCC201-8		Shaft: 1/2 in \| Bearing: SB201-8 \| Housing: FCC204 \| Mass: 0.53 kg
SBFCC202		Shaft: 15 mm \| Bearing: SB202 \| Housing: FCC204 \| Mass: 0.53 kg
SBFCC202-10		Shaft: 5/8 in \| Bearing: SB202-10 \| Housing: FCC204 \| Mass: 0.53 kg
SBFCC203		Shaft: 17 mm \| Bearing: SB203 \| Housing: FCC204 \| Mass: 0.53 kg
SBFCC204-12		Shaft: 3/4 in \| Bearing: SB204-12 \| Housing: FCC204 \| Mass: 0.53 kg
SBFCC204		Shaft: 20 mm \| Bearing: SB204 \| Housing: FCC204 \| Mass: 0.53 kg
SBFCC205-14		Shaft: 7/8 in \| Bearing: SB205-14 \| Housing: FCC205 \| Mass: 0.74 kg
SBFCC205-15		Shaft: 15/16 in \| Bearing: SB205-15 \| Housing: FCC205 \| Mass: 0.74 kg
SBFCC205		Shaft: 25 mm \| Bearing: SB205 \| Housing: FCC205 \| Mass: 0.74 kg
SBFCC205-16		Shaft: 1 in \| Bearing: SB205-16 \| Housing: FCC205 \| Mass: 0.74 kg
SBFCC206-18		Shaft: 1-1/8 in \| Bearing: SB206-18 \| Housing: FCC206 \| Mass: 0.92 kg
SBFCC206		Shaft: 30 mm \| Bearing: SB206 \| Housing: FCC206 \| Mass: 0.92 kg
SBFCC206-19		Shaft: 1-3/16 in \| Bearing: SB206-19 \| Housing: FCC206 \| Mass: 0.92 kg
SBFCC207-20		Shaft: 1-1/4 in \| Bearing: SB207-20 \| Housing: FCC207 \| Mass: 1.12 kg
SBFCC207-21		Shaft: 1-5/16 in \| Bearing: SB207-21 \| Housing: FCC207 \| Mass: 1.12 kg
SBFCC207-22		Shaft: 1-3/8 in \| Bearing: SB207-22 \| Housing: FCC207 \| Mass: 1.12 kg
SBFCC207		Shaft: 35 mm \| Bearing: SB207 \| Housing: FCC207 \| Mass: 1.12 kg
SBFCC207-23		Shaft: 1-7/16 in \| Bearing: SB207-23 \| Housing: FCC207 \| Mass: 1.12 kg
SBFCC208-24		Shaft: 1-1/2 in \| Bearing: SB208-24 \| Housing: FCC208 \| Mass: 1.57 kg
SBFCC208-25		Shaft: 1-9/16 in \| Bearing: SB208-25 \| Housing: FCC208 \| Mass: 1.57 kg
SBFCC208		Shaft: 40 mm \| Bearing: SB208 \| Housing: FCC208 \| Mass: 1.57 kg
SBFCC209-26		Shaft: 1-5/8 in \| Bearing: SB209-26 \| Housing: FCC209 \| Mass: 1.96 kg
SBFCC209-27		Shaft: 1-11/16 in \| Bearing: SB209-27 \| Housing: FCC209 \| Mass: 1.96 kg
SBFCC209-28		Shaft: 1-3/4 in \| Bearing: SB209-28 \| Housing: FCC209 \| Mass: 1.96 kg
SBFCC209		Shaft: 45 mm \| Bearing: SB209 \| Housing: FCC209 \| Mass: 1.96 kg
SBFCC210-30		Shaft: 1-7/8 in \| Bearing: SB210-30 \| Housing: FCC210 \| Mass: 2.74 kg
SBFCC210-31		Shaft: 1-15/16 in \| Bearing: SB210-31 \| Housing: FCC210 \| Mass: 2.74 kg
SBFCC210		Shaft: 50 mm \| Bearing: SB210 \| Housing: FCC210 \| Mass: 2.74 kg
SBFCC211-32		Shaft: 2 in \| Bearing: SB211-32 \| Housing: FCC211 \| Mass: 3.09 kg
SBFCC211-34		Shaft: 2-1/8 in \| Bearing: SB211-34 \| Housing: FCC211 \| Mass: 3.09 kg
SBFCC211		Shaft: 55 mm \| Bearing: SB211 \| Housing: FCC211 \| Mass: 3.09 kg
SBFCC211-35		Shaft: 2-3/16 in \| Bearing: SB211-35 \| Housing: FCC211 \| Mass: 3.09 kg
SBFCC212-36		Shaft: 2-1/4 in \| Bearing: SB212-36 \| Housing: FCC212 \| Mass: 3.68 kg
SBFCC212		Shaft: 60 mm \| Bearing: SB212 \| Housing: FCC212 \| Mass: 3.68 kg
SBFCC212-38		Shaft: 2-3/8 in \| Bearing: SB212-38 \| Housing: FCC212 \| Mass: 3.68 kg
SBFCC212-39		Shaft: 2-7/16 in \| Bearing: SB212-39 \| Housing: FCC212 \| Mass: 3.68 kg
