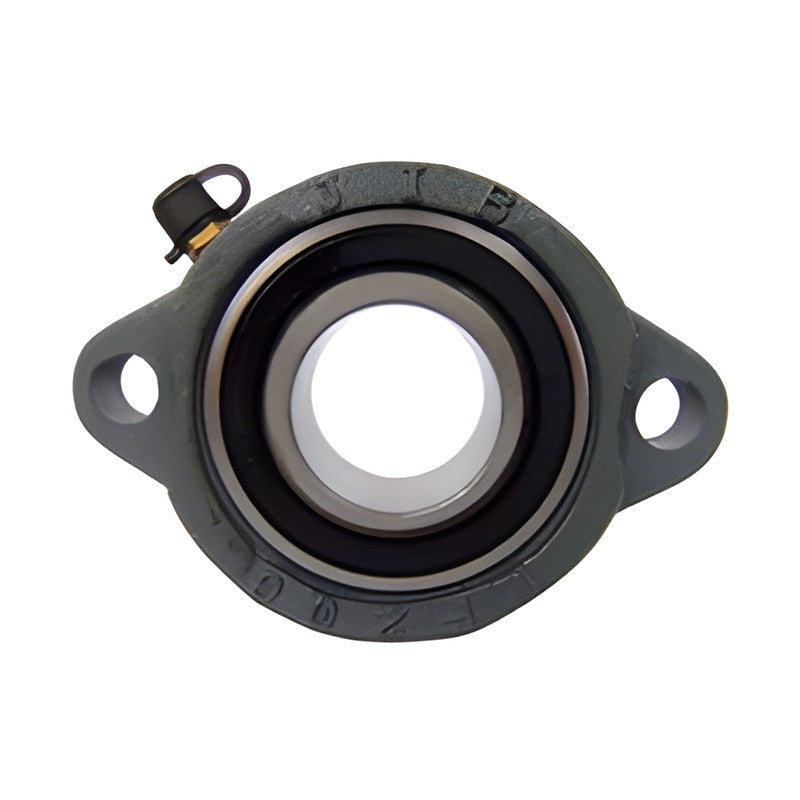

JIB SBLF2 Flange Units (Light Series, Set Screw)

JIB SBLF2 flange units combine a pressed steel 2-bolt flange (LF) housing with a SB set-screw insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

Pressed steel 2-bolt flange (LF) housing with SB set-screw insert
Fitted with SB set-screw insert bearing
Compact light-duty unit for conveyors, agricultural and general machinery
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (flange unit)
Unit series	SBLF2
Housing	pressed steel 2-bolt flange (LF) housing
Insert bearing	SB set-screw insert bearing
Codes	17 sizes
Source	JIB Ball Bearing Units catalogue, p. 103

SBLF201		Shaft: 12 mm \| Bearing: SB201 \| Housing: LF203 \| Mass: 0.36 kg
SBLF201-8		Shaft: 1/2 in \| Bearing: SB201-8 \| Housing: LF203 \| Mass: 0.36 kg
SBLF202		Shaft: 15 mm \| Bearing: SB202 \| Housing: LF203 \| Mass: 0.36 kg
SBLF202-10		Shaft: 5/8 in \| Bearing: SB202-10 \| Housing: LF203 \| Mass: 0.36 kg
SBLF203		Shaft: 17 mm \| Bearing: SB203 \| Housing: LF203 \| Mass: 0.36 kg
SBLF204-12		Shaft: 3/4 in \| Bearing: SB204-12 \| Housing: LF204 \| Mass: 0.33 kg
SBLF204		Shaft: 20 mm \| Bearing: SB204 \| Housing: LF204 \| Mass: 0.33 kg
SBLF205-14		Shaft: 7/8 in \| Bearing: SB205-14 \| Housing: LF205 \| Mass: 0.38 kg
SBLF205		Shaft: 25 mm \| Bearing: SB205 \| Housing: LF205 \| Mass: 0.38 kg
SBLF205-16		Shaft: 1 in \| Bearing: SB205-16 \| Housing: LF205 \| Mass: 0.38 kg
SBLF206-18		Shaft: 1-1/8 in \| Bearing: SB206-18 \| Housing: LF206 \| Mass: 0.57 kg
SBLF206		Shaft: 30 mm \| Bearing: SB206 \| Housing: LF206 \| Mass: 0.57 kg
SBLF206-19		Shaft: 1-3/16 in \| Bearing: SB206-19 \| Housing: LF206 \| Mass: 0.57 kg
SBLF207-20		Shaft: 1-1/4 in \| Bearing: SB207-20 \| Housing: LF207 \| Mass: 0.77 kg
SBLF207-22		Shaft: 1-3/8 in \| Bearing: SB207-22 \| Housing: LF207 \| Mass: 0.77 kg
SBLF207		Shaft: 35 mm \| Bearing: SB207 \| Housing: LF207 \| Mass: 0.77 kg
SBLF207-23		Shaft: 1-7/16 in \| Bearing: SB207-23 \| Housing: LF207 \| Mass: 0.77 kg

Mounted Bearing UnitsJIB

17 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB SBLF2 Flange Units (Light Series, Set Screw)

Brand JIB·Mounted Bearing Units

Available part numbers (17)

SBLF201, SBLF201-8, SBLF202, SBLF202-10, SBLF203, SBLF204-12, SBLF204, SBLF205-14, SBLF205, SBLF205-16 + 7 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
