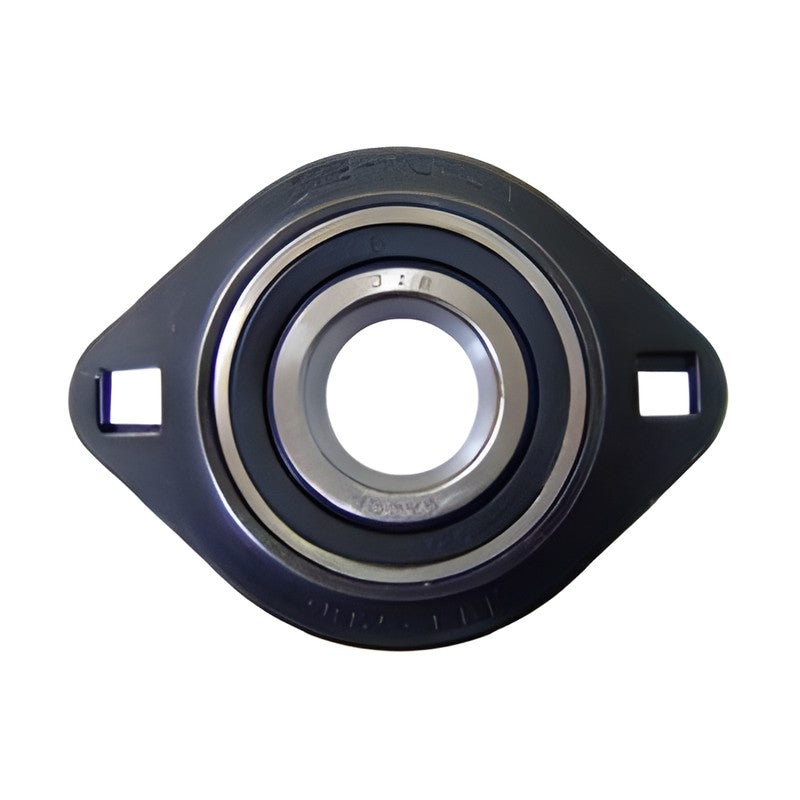

JIB SBPFL2 Flange Units (Light Series, Set Screw)

JIB SBPFL2 flange units combine a pressed steel 2-bolt flange (PFL) housing with a SB set-screw insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

Pressed steel 2-bolt flange (PFL) housing with SB set-screw insert
Fitted with SB set-screw insert bearing
Compact light-duty unit for conveyors, agricultural and general machinery
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (flange unit)
Unit series	SBPFL2
Housing	pressed steel 2-bolt flange (PFL) housing
Insert bearing	SB set-screw insert bearing
Codes	17 sizes
Source	JIB Ball Bearing Units catalogue, p. 106

SBPFL201		Shaft: 12 mm \| Bearing: SB201 \| Housing: PFL203 \| Mass: 0.19 kg
SBPFL201-8		Shaft: 1/2 in \| Bearing: SB201-8 \| Housing: PFL203 \| Mass: 0.19 kg
SBPFL202		Shaft: 15 mm \| Bearing: SB202 \| Housing: PFL203 \| Mass: 0.19 kg
SBPFL202-10		Shaft: 5/8 in \| Bearing: SB202-10 \| Housing: PFL203 \| Mass: 0.19 kg
SBPFL203		Shaft: 17 mm \| Bearing: SB203 \| Housing: PFL203 \| Mass: 0.19 kg
SBPFL204-12		Shaft: 3/4 in \| Bearing: SB204-12 \| Housing: PFL204 \| Mass: 0.24 kg
SBPFL204		Shaft: 20 mm \| Bearing: SB204 \| Housing: PFL204 \| Mass: 0.24 kg
SBPFL205-14		Shaft: 7/8 in \| Bearing: SB205-14 \| Housing: PFL205 \| Mass: 0.28 kg
SBPFL205		Shaft: 25 mm \| Bearing: SB205 \| Housing: PFL205 \| Mass: 0.28 kg
SBPFL205-16		Shaft: 1 in \| Bearing: SB205-16 \| Housing: PFL205 \| Mass: 0.28 kg
SBPFL206-18		Shaft: 1-1/8 in \| Bearing: SB206-18 \| Housing: PFL206 \| Mass: 0.38 kg
SBPFL206		Shaft: 30 mm \| Bearing: SB206 \| Housing: PFL206 \| Mass: 0.38 kg
SBPFL206-19		Shaft: 1-3/16 in \| Bearing: SB206-19 \| Housing: PFL206 \| Mass: 0.38 kg
SBPFL207-20		Shaft: 1-1/4 in \| Bearing: SB207-20 \| Housing: PFL207 \| Mass: 0.62 kg
SBPFL207-22		Shaft: 1-3/8 in \| Bearing: SB207-22 \| Housing: PFL207 \| Mass: 0.62 kg
SBPFL207		Shaft: 35 mm \| Bearing: SB207 \| Housing: PFL207 \| Mass: 0.62 kg
SBPFL207-23		Shaft: 1-7/16 in \| Bearing: SB207-23 \| Housing: PFL207 \| Mass: 0.62 kg

Mounted Bearing UnitsJIB

17 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB SBPFL2 Flange Units (Light Series, Set Screw)

Brand JIB·Mounted Bearing Units

Available part numbers (17)

SBPFL201, SBPFL201-8, SBPFL202, SBPFL202-10, SBPFL203, SBPFL204-12, SBPFL204, SBPFL205-14, SBPFL205, SBPFL205-16 + 7 more — see full table ↓
