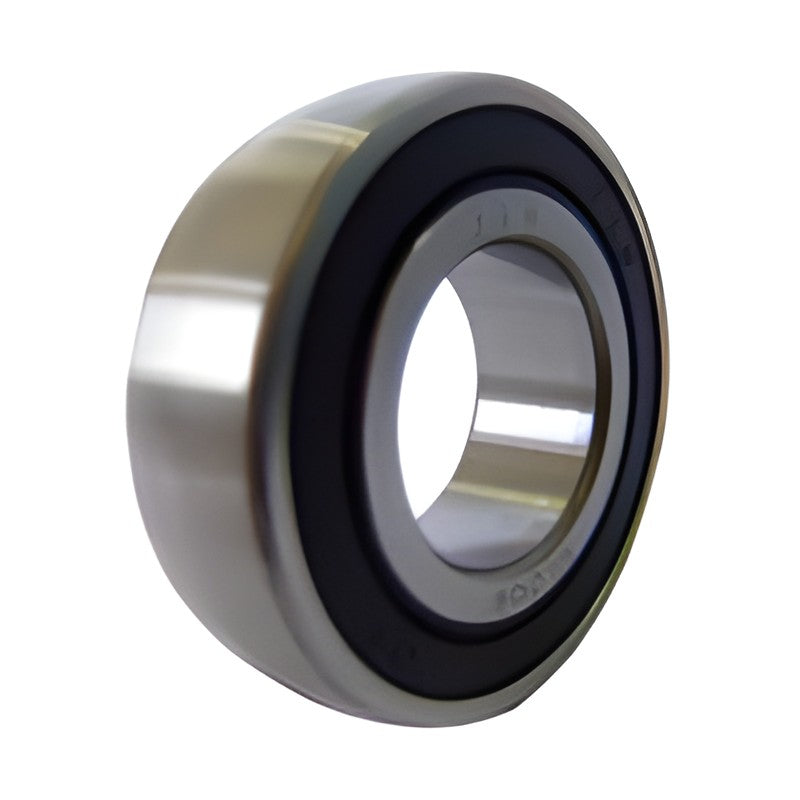

JIB SC2 Insert Bearings (Plain Bore)

JIB SC2 Insert Bearings (Plain Bore)

JIB SC2 insert ball bearings (plain cylindrical bore, spherical OD, no locking device) for use in mounted bearing unit housings.

Key features

  • Plain cylindrical bore, spherical OD, no locking device
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series SC2
Design plain cylindrical bore, spherical OD, no locking device
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source JIB Ball Bearing Units catalogue, p. 120
SC200 d: 10 mm | D: 30 mm | B: 9 mm | C: 510 kgf | C0: 240 kgf | Mass: 0.03 kg
SC201 d: 12 mm | D: 32 mm | B: 10 mm | C: 690 kgf | C0: 300 kgf | Mass: 0.035 kg
SC202 d: 15 mm | D: 35 mm | B: 11 mm | C: 760 kgf | C0: 370 kgf | Mass: 0.04 kg
SC203 d: 17 mm | D: 40 mm | B: 12 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.074 kg
SC204 d: 20 mm | D: 47 mm | B: 14 mm | C: 1280 kgf | C0: 670 kgf | Mass: 0.116 kg
SC205 d: 25 mm | D: 52 mm | B: 15 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.18 kg
SC206 d: 30 mm | D: 62 mm | B: 16 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.219 kg
SC207 d: 35 mm | D: 72 mm | B: 17 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.327 kg
SC208 d: 40 mm | D: 80 mm | B: 18 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.422 kg
SC209 d: 45 mm | D: 85 mm | B: 19 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.468 kg
SC210 d: 50 mm | D: 90 mm | B: 20 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.495 kg
SC211 d: 55 mm | D: 100 mm | B: 21 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.678 kg
SC212 d: 60 mm | D: 110 mm | B: 22 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 0.911 kg
Insert BearingsJIB
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB SC2 Insert Bearings (Plain Bore)

Brand JIB·Insert Bearings

Available part numbers (13)

SC200, SC201, SC202, SC203, SC204, SC205, SC206, SC207, SC208, SC209 + 3 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC200d: 10 mm | D: 30 mm | B: 9 mm | C: 510 kgf | C0: 240 kgf | Mass: 0.03 kg
SC201d: 12 mm | D: 32 mm | B: 10 mm | C: 690 kgf | C0: 300 kgf | Mass: 0.035 kg
SC202d: 15 mm | D: 35 mm | B: 11 mm | C: 760 kgf | C0: 370 kgf | Mass: 0.04 kg
SC203d: 17 mm | D: 40 mm | B: 12 mm | C: 960 kgf | C0: 480 kgf | Mass: 0.074 kg
SC204d: 20 mm | D: 47 mm | B: 14 mm | C: 1280 kgf | C0: 670 kgf | Mass: 0.116 kg
SC205d: 25 mm | D: 52 mm | B: 15 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.18 kg
SC206d: 30 mm | D: 62 mm | B: 16 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.219 kg
SC207d: 35 mm | D: 72 mm | B: 17 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.327 kg
SC208d: 40 mm | D: 80 mm | B: 18 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.422 kg
SC209d: 45 mm | D: 85 mm | B: 19 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.468 kg
SC210d: 50 mm | D: 90 mm | B: 20 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.495 kg
SC211d: 55 mm | D: 100 mm | B: 21 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.678 kg
SC212d: 60 mm | D: 110 mm | B: 22 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 0.911 kg
