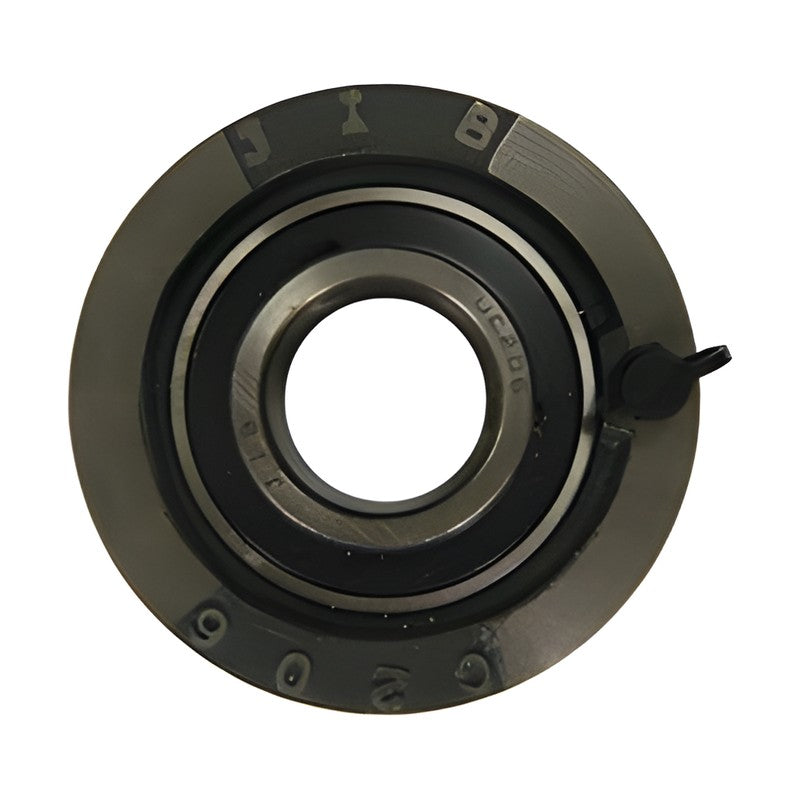

JIB UCC2 Cartridge Units (Light Series, Set Screw)

JIB UCC2 Cartridge Units (Light Series, Set Screw)

JIB UCC2 cartridge units combine a cylindrical cartridge (C) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Cylindrical cartridge (C) housing
  • Fitted with UC set-screw insert bearing
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product Mounted ball bearing unit (cartridge unit)
Unit series UCC2
Housing cylindrical cartridge (C) housing
Insert bearing UC set-screw insert bearing
Codes 41 sizes
Source JIB Ball Bearing Units catalogue, p. 71
UCC201 Shaft: 12 mm | Bearing: UC201 | Housing: C204 | Mass: 0.52 kg
UCC201-8 Shaft: 1/2 in | Bearing: UC201-8 | Housing: C204 | Mass: 0.52 kg
UCC202 Shaft: 15 mm | Bearing: UC202 | Housing: C204 | Mass: 0.5 kg
UCC202-10 Shaft: 5/8 in | Bearing: UC202-10 | Housing: C204 | Mass: 0.5 kg
UCC203 Shaft: 17 mm | Bearing: UC203 | Housing: C204 | Mass: 0.49 kg
UCC204-12 Shaft: 3/4 in | Bearing: UC204-12 | Housing: C204 | Mass: 0.47 kg
UCC204 Shaft: 20 mm | Bearing: UC204 | Housing: C204 | Mass: 0.47 kg
UCC205-14 Shaft: 7/8 in | Bearing: UC205-14 | Housing: C205 | Mass: 0.64 kg
UCC205-15 Shaft: 15/16 in | Bearing: UC205-15 | Housing: C205 | Mass: 0.64 kg
UCC205 Shaft: 25 mm | Bearing: UC205 | Housing: C205 | Mass: 0.64 kg
UCC205-16 Shaft: 1 in | Bearing: UC205-16 | Housing: C205 | Mass: 0.64 kg
UCC206-18 Shaft: 1-1/8 in | Bearing: UC206-18 | Housing: C206 | Mass: 0.81 kg
UCC206 Shaft: 30 mm | Bearing: UC206 | Housing: C206 | Mass: 0.81 kg
UCC206-19 Shaft: 1-3/16 in | Bearing: UC206-19 | Housing: C206 | Mass: 0.81 kg
UCC206-20 Shaft: 1-1/4 in | Bearing: UC206-20 | Housing: C206 | Mass: 0.81 kg
UCC207-20 Shaft: 1-1/4 in | Bearing: UC207-20 | Housing: C207 | Mass: 0.93 kg
UCC207-21 Shaft: 1-5/16 in | Bearing: UC207-21 | Housing: C207 | Mass: 0.93 kg
UCC207-22 Shaft: 1-3/8 in | Bearing: UC207-22 | Housing: C207 | Mass: 0.93 kg
UCC207 Shaft: 35 mm | Bearing: UC207 | Housing: C207 | Mass: 0.93 kg
UCC207-23 Shaft: 1-7/16 in | Bearing: UC207-23 | Housing: C207 | Mass: 0.93 kg
UCC208-24 Shaft: 1-1/2 in | Bearing: UC208-24 | Housing: C208 | Mass: 1.2 kg
UCC208-25 Shaft: 1-9/16 in | Bearing: UC208-25 | Housing: C208 | Mass: 1.2 kg
UCC208 Shaft: 40 mm | Bearing: UC208 | Housing: C208 | Mass: 1.2 kg
UCC209-26 Shaft: 1-5/8 in | Bearing: UC209-26 | Housing: C209 | Mass: 1.5 kg
UCC209-27 Shaft: 1-11/16 in | Bearing: UC209-27 | Housing: C209 | Mass: 1.5 kg
UCC209-28 Shaft: 1-3/4 in | Bearing: UC209-28 | Housing: C209 | Mass: 1.5 kg
UCC209 Shaft: 45 mm | Bearing: UC209 | Housing: C209 | Mass: 1.5 kg
UCC210-30 Shaft: 1-7/8 in | Bearing: UC210-30 | Housing: C210 | Mass: 2 kg
UCC210-31 Shaft: 1-15/16 in | Bearing: UC210-31 | Housing: C210 | Mass: 2 kg
UCC210 Shaft: 50 mm | Bearing: UC210 | Housing: C210 | Mass: 2 kg
UCC210-32 Shaft: 2 in | Bearing: UC210-32 | Housing: C210 | Mass: 2 kg
UCC211-32 Shaft: 2 in | Bearing: UC211-32 | Housing: C211 | Mass: 2.2 kg
UCC211-34 Shaft: 2-1/8 in | Bearing: UC211-34 | Housing: C211 | Mass: 2.2 kg
UCC211 Shaft: 55 mm | Bearing: UC211 | Housing: C211 | Mass: 2.2 kg
UCC211-35 Shaft: 2-3/16 in | Bearing: UC211-35 | Housing: C211 | Mass: 2.2 kg
UCC212-36 Shaft: 2-1/4 in | Bearing: UC212-36 | Housing: C212 | Mass: 2.6 kg
UCC212 Shaft: 60 mm | Bearing: UC212 | Housing: C212 | Mass: 2.6 kg
UCC212-38 Shaft: 2-3/8 in | Bearing: UC212-38 | Housing: C212 | Mass: 2.6 kg
UCC212-39 Shaft: 2-7/16 in | Bearing: UC212-39 | Housing: C212 | Mass: 2.6 kg
UCC213-40 Shaft: 2-1/2 in | Bearing: UC213-40 | Housing: C213 | Mass: 3 kg
UCC213 Shaft: 65 mm | Bearing: UC213 | Housing: C213 | Mass: 3 kg
