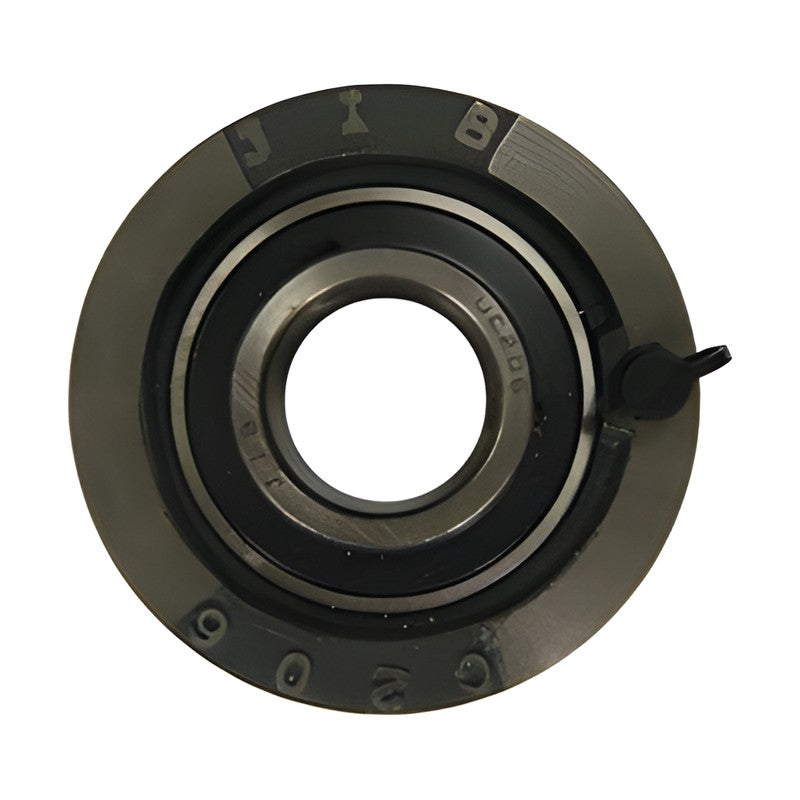

JIB UCCX Cartridge Units (Medium Series, Set Screw)

JIB UCCX cartridge units combine a cylindrical cartridge (C) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

Cylindrical cartridge (C) housing
Fitted with UC set-screw insert bearing
Self-aligning spherical outside diameter compensates for shaft misalignment
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (cartridge unit)
Unit series	UCCX
Housing	cylindrical cartridge (C) housing
Insert bearing	UC set-screw insert bearing
Codes	22 sizes
Source	JIB Ball Bearing Units catalogue, p. 72

UCCX05		Shaft: 25 mm \| Bearing: UCX05 \| Housing: CX05 \| Mass: 1 kg
UCCX05-16		Shaft: 1 in \| Bearing: UCX05-16 \| Housing: CX05 \| Mass: 1 kg
UCCX06		Shaft: 30 mm \| Bearing: UCX06 \| Housing: CX06 \| Mass: 1.3 kg
UCCX06-19		Shaft: 1-3/16 in \| Bearing: UCX06-19 \| Housing: CX06 \| Mass: 1.3 kg
UCCX06-20		Shaft: 1-1/4 in \| Bearing: UCX06-20 \| Housing: CX06 \| Mass: 1.3 kg
UCCX07-22		Shaft: 1-3/8 in \| Bearing: UCX07-22 \| Housing: CX07 \| Mass: 1.7 kg
UCCX07		Shaft: 35 mm \| Bearing: UCX07 \| Housing: CX07 \| Mass: 1.7 kg
UCCX07-23		Shaft: 1-7/16 in \| Bearing: UCX07-23 \| Housing: CX07 \| Mass: 1.7 kg
UCCX08-24		Shaft: 1-1/2 in \| Bearing: UCX08-24 \| Housing: CX08 \| Mass: 2.1 kg
UCCX08		Shaft: 40 mm \| Bearing: UCX08 \| Housing: CX08 \| Mass: 2.1 kg
UCCX09-27		Shaft: 1-11/16 in \| Bearing: UCX09-27 \| Housing: CX09 \| Mass: 2.2 kg
UCCX09-28		Shaft: 1-3/4 in \| Bearing: UCX09-28 \| Housing: CX09 \| Mass: 2.2 kg
UCCX09		Shaft: 45 mm \| Bearing: UCX09 \| Housing: CX09 \| Mass: 2.2 kg
UCCX10-31		Shaft: 1-15/16 in \| Bearing: UCX10-31 \| Housing: CX10 \| Mass: 2.8 kg
UCCX10		Shaft: 50 mm \| Bearing: UCX10 \| Housing: CX10 \| Mass: 2.8 kg
UCCX10-32		Shaft: 2 in \| Bearing: UCX10-32 \| Housing: CX10 \| Mass: 2.8 kg
UCCX11		Shaft: 55 mm \| Bearing: UCX11 \| Housing: CX11 \| Mass: 4 kg
UCCX11-35		Shaft: 2-3/16 in \| Bearing: UCX11-35 \| Housing: CX11 \| Mass: 4 kg
UCCX11-36		Shaft: 2-1/4 in \| Bearing: UCX11-36 \| Housing: CX11 \| Mass: 4 kg
UCCX12		Shaft: 60 mm \| Bearing: UCX12 \| Housing: CX12 \| Mass: 4.6 kg
UCCX12-38		Shaft: 2-3/8 in \| Bearing: UCX12-38 \| Housing: CX12 \| Mass: 4.6 kg
UCCX12-39		Shaft: 2-7/16 in \| Bearing: UCX12-39 \| Housing: CX12 \| Mass: 4.6 kg
