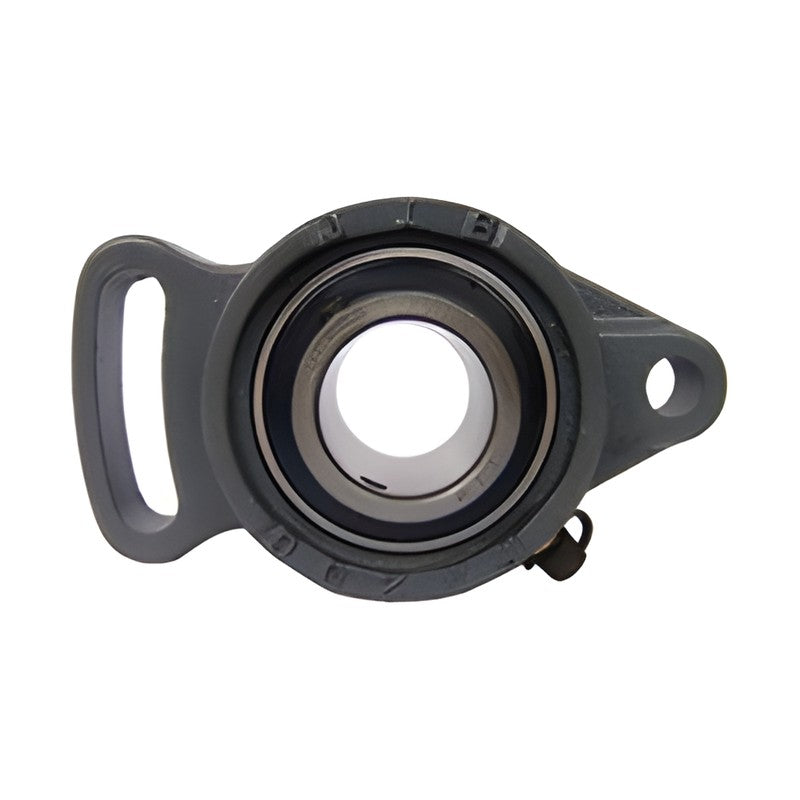

JIB UCFA2 Flange Units (Light Series, Set Screw)

JIB UCFA2 Flange Units (Light Series, Set Screw)

JIB UCFA2 flange units combine a adjustable flange bracket (FA) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Adjustable flange bracket (FA) housing
  • Fitted with UC set-screw insert bearing
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product Mounted ball bearing unit (flange unit)
Unit series UCFA2
Housing adjustable flange bracket (FA) housing
Insert bearing UC set-screw insert bearing
Codes 35 sizes
Source JIB Ball Bearing Units catalogue, p. 76
UCFA201 Shaft: 12 mm | Bearing: UC201 | Housing: FA204 | Mass: 0.47 kg
UCFA201-8 Shaft: 1/2 in | Bearing: UC201-8 | Housing: FA204 | Mass: 0.47 kg
UCFA202 Shaft: 15 mm | Bearing: UC202 | Housing: FA204 | Mass: 0.45 kg
UCFA202-10 Shaft: 5/8 in | Bearing: UC202-10 | Housing: FA204 | Mass: 0.45 kg
UCFA203 Shaft: 17 mm | Bearing: UC203 | Housing: FA204 | Mass: 0.44 kg
UCFA204-12 Shaft: 3/4 in | Bearing: UC204-12 | Housing: FA204 | Mass: 0.42 kg
UCFA204 Shaft: 20 mm | Bearing: UC204 | Housing: FA204 | Mass: 0.42 kg
UCFA205-14 Shaft: 7/8 in | Bearing: UC205-14 | Housing: FA205 | Mass: 0.68 kg
UCFA205-15 Shaft: 15/16 in | Bearing: UC205-15 | Housing: FA205 | Mass: 0.68 kg
UCFA205 Shaft: 25 mm | Bearing: UC205 | Housing: FA205 | Mass: 0.68 kg
UCFA205-16 Shaft: 1 in | Bearing: UC205-16 | Housing: FA205 | Mass: 0.68 kg
UCFA206-18 Shaft: 1-1/8 in | Bearing: UC206-18 | Housing: FA206 | Mass: 1 kg
UCFA206 Shaft: 30 mm | Bearing: UC206 | Housing: FA206 | Mass: 1 kg
UCFA206-19 Shaft: 1-3/16 in | Bearing: UC206-19 | Housing: FA206 | Mass: 1 kg
UCFA206-20 Shaft: 1-1/4 in | Bearing: UC206-20 | Housing: FA206 | Mass: 1 kg
UCFA207-20 Shaft: 1-1/4 in | Bearing: UC207-20 | Housing: FA207 | Mass: 1.5 kg
UCFA207-21 Shaft: 1-5/16 in | Bearing: UC207-21 | Housing: FA207 | Mass: 1.5 kg
UCFA207-22 Shaft: 1-3/8 in | Bearing: UC207-22 | Housing: FA207 | Mass: 1.5 kg
UCFA207 Shaft: 35 mm | Bearing: UC207 | Housing: FA207 | Mass: 1.5 kg
UCFA207-23 Shaft: 1-7/16 in | Bearing: UC207-23 | Housing: FA207 | Mass: 1.5 kg
UCFA208-24 Shaft: 1-1/2 in | Bearing: UC208-24 | Housing: FA208 | Mass: 1.9 kg
UCFA208-25 Shaft: 1-9/16 in | Bearing: UC208-25 | Housing: FA208 | Mass: 1.9 kg
UCFA208 Shaft: 40 mm | Bearing: UC208 | Housing: FA208 | Mass: 1.9 kg
UCFA209-26 Shaft: 1-5/8 in | Bearing: UC209-26 | Housing: FA209 | Mass: 1.7 kg
UCFA209-27 Shaft: 1-11/16 in | Bearing: UC209-27 | Housing: FA209 | Mass: 1.7 kg
UCFA209-28 Shaft: 1-3/4 in | Bearing: UC209-28 | Housing: FA209 | Mass: 1.7 kg
UCFA209 Shaft: 45 mm | Bearing: UC209 | Housing: FA209 | Mass: 1.7 kg
UCFA210-30 Shaft: 1-7/8 in | Bearing: UC210-30 | Housing: FA210 | Mass: 2 kg
UCFA210-31 Shaft: 1-15/16 in | Bearing: UC210-31 | Housing: FA210 | Mass: 2 kg
UCFA210 Shaft: 50 mm | Bearing: UC210 | Housing: FA210 | Mass: 2 kg
UCFA210-32 Shaft: 2 in | Bearing: UC210-32 | Housing: FA210 | Mass: 2 kg
UCFA211-32 Shaft: 2 in | Bearing: UC211-32 | Housing: FA211 | Mass: 3.6 kg
UCFA211-34 Shaft: 2-1/8 in | Bearing: UC211-34 | Housing: FA211 | Mass: 3.6 kg
UCFA211 Shaft: 55 mm | Bearing: UC211 | Housing: FA211 | Mass: 3.6 kg
UCFA211-35 Shaft: 2-3/16 in | Bearing: UC211-35 | Housing: FA211 | Mass: 3.6 kg
Mounted Bearing UnitsJIB
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UCFA2 Flange Units (Light Series, Set Screw)

Brand JIB·Mounted Bearing Units

Available part numbers (35)

UCFA201, UCFA201-8, UCFA202, UCFA202-10, UCFA203, UCFA204-12, UCFA204, UCFA205-14, UCFA205-15, UCFA205 + 25 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCFA201Shaft: 12 mm | Bearing: UC201 | Housing: FA204 | Mass: 0.47 kg
UCFA201-8Shaft: 1/2 in | Bearing: UC201-8 | Housing: FA204 | Mass: 0.47 kg
UCFA202Shaft: 15 mm | Bearing: UC202 | Housing: FA204 | Mass: 0.45 kg
UCFA202-10Shaft: 5/8 in | Bearing: UC202-10 | Housing: FA204 | Mass: 0.45 kg
UCFA203Shaft: 17 mm | Bearing: UC203 | Housing: FA204 | Mass: 0.44 kg
UCFA204-12Shaft: 3/4 in | Bearing: UC204-12 | Housing: FA204 | Mass: 0.42 kg
UCFA204Shaft: 20 mm | Bearing: UC204 | Housing: FA204 | Mass: 0.42 kg
UCFA205-14Shaft: 7/8 in | Bearing: UC205-14 | Housing: FA205 | Mass: 0.68 kg
UCFA205-15Shaft: 15/16 in | Bearing: UC205-15 | Housing: FA205 | Mass: 0.68 kg
UCFA205Shaft: 25 mm | Bearing: UC205 | Housing: FA205 | Mass: 0.68 kg
UCFA205-16Shaft: 1 in | Bearing: UC205-16 | Housing: FA205 | Mass: 0.68 kg
UCFA206-18Shaft: 1-1/8 in | Bearing: UC206-18 | Housing: FA206 | Mass: 1 kg
UCFA206Shaft: 30 mm | Bearing: UC206 | Housing: FA206 | Mass: 1 kg
UCFA206-19Shaft: 1-3/16 in | Bearing: UC206-19 | Housing: FA206 | Mass: 1 kg
UCFA206-20Shaft: 1-1/4 in | Bearing: UC206-20 | Housing: FA206 | Mass: 1 kg
UCFA207-20Shaft: 1-1/4 in | Bearing: UC207-20 | Housing: FA207 | Mass: 1.5 kg
UCFA207-21Shaft: 1-5/16 in | Bearing: UC207-21 | Housing: FA207 | Mass: 1.5 kg
UCFA207-22Shaft: 1-3/8 in | Bearing: UC207-22 | Housing: FA207 | Mass: 1.5 kg
UCFA207Shaft: 35 mm | Bearing: UC207 | Housing: FA207 | Mass: 1.5 kg
UCFA207-23Shaft: 1-7/16 in | Bearing: UC207-23 | Housing: FA207 | Mass: 1.5 kg
UCFA208-24Shaft: 1-1/2 in | Bearing: UC208-24 | Housing: FA208 | Mass: 1.9 kg
UCFA208-25Shaft: 1-9/16 in | Bearing: UC208-25 | Housing: FA208 | Mass: 1.9 kg
UCFA208Shaft: 40 mm | Bearing: UC208 | Housing: FA208 | Mass: 1.9 kg
UCFA209-26Shaft: 1-5/8 in | Bearing: UC209-26 | Housing: FA209 | Mass: 1.7 kg
UCFA209-27Shaft: 1-11/16 in | Bearing: UC209-27 | Housing: FA209 | Mass: 1.7 kg
UCFA209-28Shaft: 1-3/4 in | Bearing: UC209-28 | Housing: FA209 | Mass: 1.7 kg
UCFA209Shaft: 45 mm | Bearing: UC209 | Housing: FA209 | Mass: 1.7 kg
UCFA210-30Shaft: 1-7/8 in | Bearing: UC210-30 | Housing: FA210 | Mass: 2 kg
UCFA210-31Shaft: 1-15/16 in | Bearing: UC210-31 | Housing: FA210 | Mass: 2 kg
UCFA210Shaft: 50 mm | Bearing: UC210 | Housing: FA210 | Mass: 2 kg
UCFA210-32Shaft: 2 in | Bearing: UC210-32 | Housing: FA210 | Mass: 2 kg
UCFA211-32Shaft: 2 in | Bearing: UC211-32 | Housing: FA211 | Mass: 3.6 kg
UCFA211-34Shaft: 2-1/8 in | Bearing: UC211-34 | Housing: FA211 | Mass: 3.6 kg
UCFA211Shaft: 55 mm | Bearing: UC211 | Housing: FA211 | Mass: 3.6 kg
UCFA211-35Shaft: 2-3/16 in | Bearing: UC211-35 | Housing: FA211 | Mass: 3.6 kg
