JIB UCFB2 Flange Units (Light Series, Set Screw)

JIB UCFB2 Flange Units (Light Series, Set Screw)

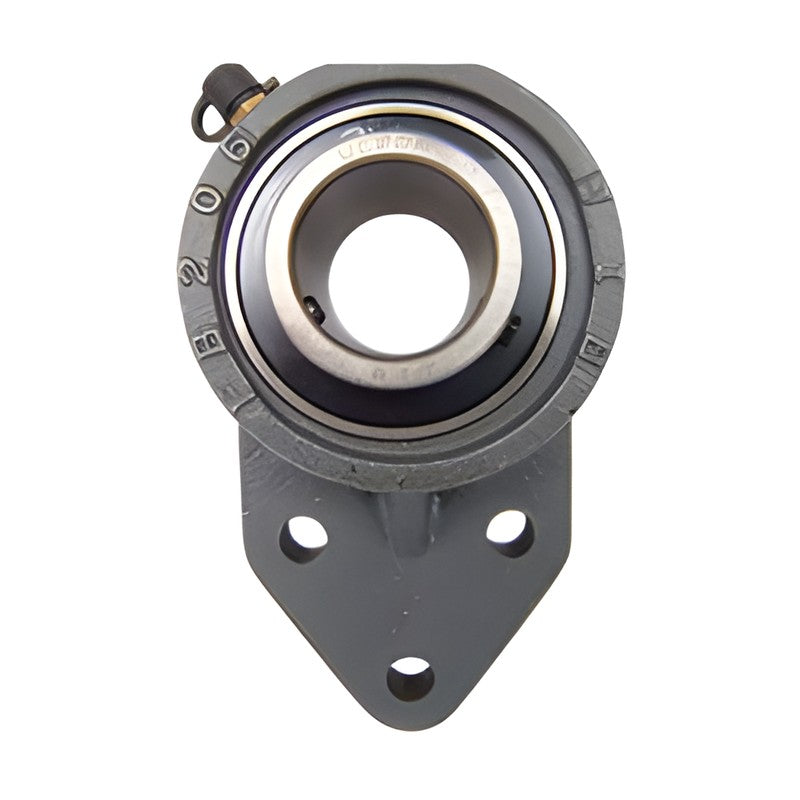

JIB UCFB2 flange units combine a 3-bolt flange bracket (FB) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • 3-bolt flange bracket (FB) housing
  • Fitted with UC set-screw insert bearing
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product Mounted ball bearing unit (flange unit)
Unit series UCFB2
Housing 3-bolt flange bracket (FB) housing
Insert bearing UC set-screw insert bearing
Codes 31 sizes
Source JIB Ball Bearing Units catalogue, p. 77
UCFB201 Shaft: 12 mm | Bearing: UC201 | Housing: FB204 | Mass: 0.64 kg
UCFB201-8 Shaft: 1/2 in | Bearing: UC201-8 | Housing: FB204 | Mass: 0.64 kg
UCFB202 Shaft: 15 mm | Bearing: UC202 | Housing: FB204 | Mass: 0.62 kg
UCFB202-10 Shaft: 5/8 in | Bearing: UC202-10 | Housing: FB204 | Mass: 0.62 kg
UCFB203 Shaft: 17 mm | Bearing: UC203 | Housing: FB204 | Mass: 0.61 kg
UCFB204-12 Shaft: 3/4 in | Bearing: UC204-12 | Housing: FB204 | Mass: 0.59 kg
UCFB204 Shaft: 20 mm | Bearing: UC204 | Housing: FB204 | Mass: 0.59 kg
UCFB205-14 Shaft: 7/8 in | Bearing: UC205-14 | Housing: FB205 | Mass: 0.68 kg
UCFB205-15 Shaft: 15/16 in | Bearing: UC205-15 | Housing: FB205 | Mass: 0.68 kg
UCFB205 Shaft: 25 mm | Bearing: UC205 | Housing: FB205 | Mass: 0.68 kg
UCFB205-16 Shaft: 1 in | Bearing: UC205-16 | Housing: FB205 | Mass: 0.68 kg
UCFB206-18 Shaft: 1-1/8 in | Bearing: UC206-18 | Housing: FB206 | Mass: 0.92 kg
UCFB206 Shaft: 30 mm | Bearing: UC206 | Housing: FB206 | Mass: 0.92 kg
UCFB206-19 Shaft: 1-3/16 in | Bearing: UC206-19 | Housing: FB206 | Mass: 0.92 kg
UCFB206-20 Shaft: 1-1/4 in | Bearing: UC206-20 | Housing: FB206 | Mass: 0.92 kg
UCFB207-20 Shaft: 1-1/4 in | Bearing: UC207-20 | Housing: FB207 | Mass: 1.3 kg
UCFB207-21 Shaft: 1-5/16 in | Bearing: UC207-21 | Housing: FB207 | Mass: 1.3 kg
UCFB207-22 Shaft: 1-3/8 in | Bearing: UC207-22 | Housing: FB207 | Mass: 1.3 kg
UCFB207 Shaft: 35 mm | Bearing: UC207 | Housing: FB207 | Mass: 1.3 kg
UCFB207-23 Shaft: 1-7/16 in | Bearing: UC207-23 | Housing: FB207 | Mass: 1.3 kg
UCFB208-24 Shaft: 1-1/2 in | Bearing: UC208-24 | Housing: FB208 | Mass: 1.8 kg
UCFB208-25 Shaft: 1-9/16 in | Bearing: UC208-25 | Housing: FB208 | Mass: 1.8 kg
UCFB208 Shaft: 40 mm | Bearing: UC208 | Housing: FB208 | Mass: 1.8 kg
UCFB209-26 Shaft: 1-5/8 in | Bearing: UC209-26 | Housing: FB209 | Mass: 2 kg
UCFB209-27 Shaft: 1-11/16 in | Bearing: UC209-27 | Housing: FB209 | Mass: 2 kg
UCFB209-28 Shaft: 1-3/4 in | Bearing: UC209-28 | Housing: FB209 | Mass: 2 kg
UCFB209 Shaft: 45 mm | Bearing: UC209 | Housing: FB209 | Mass: 2 kg
UCFB210-30 Shaft: 1-7/8 in | Bearing: UC210-30 | Housing: FB210 | Mass: 2.3 kg
UCFB210-31 Shaft: 1-15/16 in | Bearing: UC210-31 | Housing: FB210 | Mass: 2.3 kg
UCFB210 Shaft: 50 mm | Bearing: UC210 | Housing: FB210 | Mass: 2.3 kg
UCFB210-32 Shaft: 2 in | Bearing: UC210-32 | Housing: FB210 | Mass: 2.3 kg
Mounted Bearing UnitsJIB
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UCFB2 Flange Units (Light Series, Set Screw)

Brand JIB·Mounted Bearing Units

Available part numbers (31)

UCFB201, UCFB201-8, UCFB202, UCFB202-10, UCFB203, UCFB204-12, UCFB204, UCFB205-14, UCFB205-15, UCFB205 + 21 more — see full table ↓
