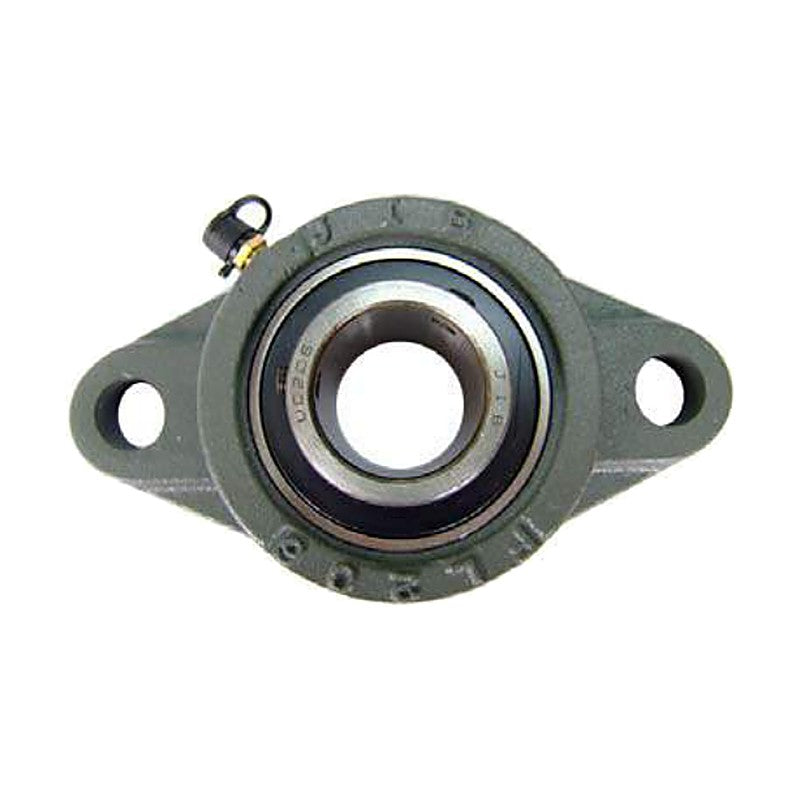

JIB UCFLX Oval Flange Units (Medium Series, Set Screw)

JIB UCFLX oval flange units combine a cast iron 2-bolt oval flange (FL) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

Cast iron 2-bolt oval flange (FL) housing
Fitted with UC set-screw insert bearing
Self-aligning spherical outside diameter compensates for shaft misalignment
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (oval flange unit)
Unit series	UCFLX
Housing	cast iron 2-bolt oval flange (FL) housing
Insert bearing	UC set-screw insert bearing
Codes	16 sizes
Source	JIB Ball Bearing Units catalogue, p. 66

UCFLX05		Shaft: 25 mm \| Bearing: UCX05 \| Housing: FLX05 \| Mass: 1.1 kg
UCFLX05-16		Shaft: 1 in \| Bearing: UCX05-16 \| Housing: FLX05 \| Mass: 1.1 kg
UCFLX06		Shaft: 30 mm \| Bearing: UCX06 \| Housing: FLX06 \| Mass: 1.5 kg
UCFLX06-19		Shaft: 1-3/16 in \| Bearing: UCX06-19 \| Housing: FLX06 \| Mass: 1.5 kg
UCFLX06-20		Shaft: 1-1/4 in \| Bearing: UCX06-20 \| Housing: FLX06 \| Mass: 1.5 kg
UCFLX07-22		Shaft: 1-3/8 in \| Bearing: UCX07-22 \| Housing: FLX07 \| Mass: 1.9 kg
UCFLX07		Shaft: 35 mm \| Bearing: UCX07 \| Housing: FLX07 \| Mass: 1.9 kg
UCFLX07-23		Shaft: 1-7/16 in \| Bearing: UCX07-23 \| Housing: FLX07 \| Mass: 1.9 kg
UCFLX08-24		Shaft: 1-1/2 in \| Bearing: UCX08-24 \| Housing: FLX08 \| Mass: 2.1 kg
UCFLX08		Shaft: 40 mm \| Bearing: UCX08 \| Housing: FLX08 \| Mass: 2.1 kg
UCFLX09-27		Shaft: 1-11/16 in \| Bearing: UCX09-27 \| Housing: FLX09 \| Mass: 2.4 kg
UCFLX09-28		Shaft: 1-3/4 in \| Bearing: UCX09-28 \| Housing: FLX09 \| Mass: 2.4 kg
UCFLX09		Shaft: 45 mm \| Bearing: UCX09 \| Housing: FLX09 \| Mass: 2.4 kg
UCFLX10-31		Shaft: 1-15/16 in \| Bearing: UCX10-31 \| Housing: FLX10 \| Mass: 3.8 kg
UCFLX10		Shaft: 50 mm \| Bearing: UCX10 \| Housing: FLX10 \| Mass: 3.8 kg
UCFLX10-32		Shaft: 2 in \| Bearing: UCX10-32 \| Housing: FLX10 \| Mass: 3.8 kg
