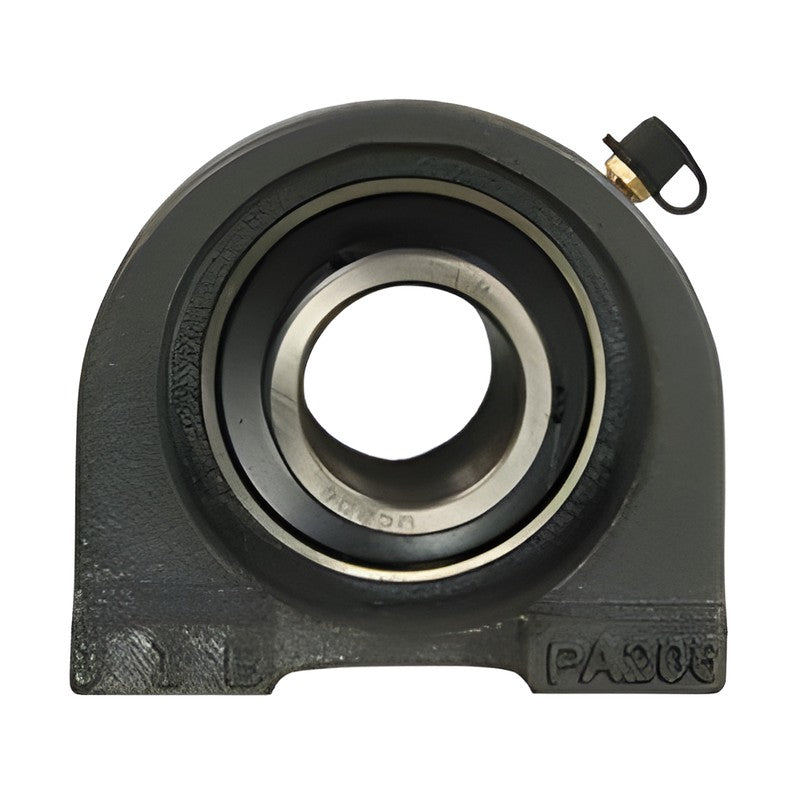

JIB UCPA2 Pillow Block Units (Light Series, Set Screw)

JIB UCPA2 Pillow Block Units (Light Series, Set Screw)

JIB UCPA2 pillow block units combine a tapped-base pillow block (PA) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Tapped-base pillow block (PA) housing
  • Fitted with UC set-screw insert bearing
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product Mounted ball bearing unit (pillow block unit)
Unit series UCPA2
Housing tapped-base pillow block (PA) housing
Insert bearing UC set-screw insert bearing
Codes 31 sizes
Source JIB Ball Bearing Units catalogue, p. 75
UCPA201 Shaft: 12 mm | Bearing: UC201 | Housing: PA204 | Mass: 0.64 kg
UCPA201-8 Shaft: 1/2 in | Bearing: UC201-8 | Housing: PA204 | Mass: 0.64 kg
UCPA202 Shaft: 15 mm | Bearing: UC202 | Housing: PA204 | Mass: 0.62 kg
UCPA202-10 Shaft: 5/8 in | Bearing: UC202-10 | Housing: PA204 | Mass: 0.62 kg
UCPA203 Shaft: 17 mm | Bearing: UC203 | Housing: PA204 | Mass: 0.61 kg
UCPA204-12 Shaft: 3/4 in | Bearing: UC204-12 | Housing: PA204 | Mass: 0.59 kg
UCPA204 Shaft: 20 mm | Bearing: UC204 | Housing: PA204 | Mass: 0.59 kg
UCPA205-14 Shaft: 7/8 in | Bearing: UC205-14 | Housing: PA205 | Mass: 0.83 kg
UCPA205-15 Shaft: 15/16 in | Bearing: UC205-15 | Housing: PA205 | Mass: 0.83 kg
UCPA205 Shaft: 25 mm | Bearing: UC205 | Housing: PA205 | Mass: 0.83 kg
UCPA205-16 Shaft: 1 in | Bearing: UC205-16 | Housing: PA205 | Mass: 0.83 kg
UCPA206-18 Shaft: 1-1/8 in | Bearing: UC206-18 | Housing: PA206 | Mass: 1.2 kg
UCPA206 Shaft: 30 mm | Bearing: UC206 | Housing: PA206 | Mass: 1.2 kg
UCPA206-19 Shaft: 1-3/16 in | Bearing: UC206-19 | Housing: PA206 | Mass: 1.2 kg
UCPA206-20 Shaft: 1-1/4 in | Bearing: UC206-20 | Housing: PA206 | Mass: 1.2 kg
UCPA207-20 Shaft: 1-1/4 in | Bearing: UC207-20 | Housing: PA207 | Mass: 1.7 kg
UCPA207-21 Shaft: 1-5/16 in | Bearing: UC207-21 | Housing: PA207 | Mass: 1.7 kg
UCPA207-22 Shaft: 1-3/8 in | Bearing: UC207-22 | Housing: PA207 | Mass: 1.7 kg
UCPA207 Shaft: 35 mm | Bearing: UC207 | Housing: PA207 | Mass: 1.7 kg
UCPA207-23 Shaft: 1-7/16 in | Bearing: UC207-23 | Housing: PA207 | Mass: 1.7 kg
UCPA208-24 Shaft: 1-1/2 in | Bearing: UC208-24 | Housing: PA208 | Mass: 2 kg
UCPA208-25 Shaft: 1-9/16 in | Bearing: UC208-25 | Housing: PA208 | Mass: 2 kg
UCPA208 Shaft: 40 mm | Bearing: UC208 | Housing: PA208 | Mass: 2 kg
UCPA209-26 Shaft: 1-5/8 in | Bearing: UC209-26 | Housing: PA209 | Mass: 2.2 kg
UCPA209-27 Shaft: 1-11/16 in | Bearing: UC209-27 | Housing: PA209 | Mass: 2.2 kg
UCPA209-28 Shaft: 1-3/4 in | Bearing: UC209-28 | Housing: PA209 | Mass: 2.2 kg
UCPA209 Shaft: 45 mm | Bearing: UC209 | Housing: PA209 | Mass: 2.2 kg
UCPA210-30 Shaft: 1-7/8 in | Bearing: UC210-30 | Housing: PA210 | Mass: 2.8 kg
UCPA210-31 Shaft: 1-15/16 in | Bearing: UC210-31 | Housing: PA210 | Mass: 2.8 kg
UCPA210 Shaft: 50 mm | Bearing: UC210 | Housing: PA210 | Mass: 2.8 kg
UCPA210-32 Shaft: 2 in | Bearing: UC210-32 | Housing: PA210 | Mass: 2.8 kg
Mounted Bearing UnitsJIB
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UCPA2 Pillow Block Units (Light Series, Set Screw)

Brand JIB·Mounted Bearing Units

Available part numbers (31)

UCPA201, UCPA201-8, UCPA202, UCPA202-10, UCPA203, UCPA204-12, UCPA204, UCPA205-14, UCPA205-15, UCPA205 + 21 more — see full table ↓
