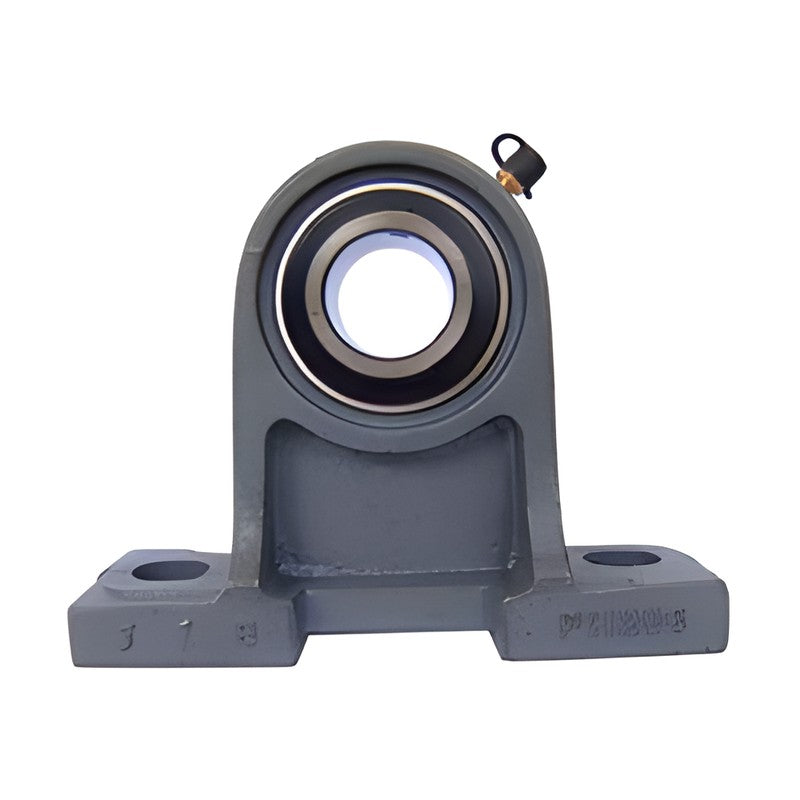

JIB UCPH2 Pillow Block Units (Light Series, Set Screw)

JIB UCPH2 pillow block units combine a high-centre pillow block (PH) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

High-centre pillow block (PH) housing
Fitted with UC set-screw insert bearing
Self-aligning spherical outside diameter compensates for shaft misalignment
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (pillow block unit)
Unit series	UCPH2
Housing	high-centre pillow block (PH) housing
Insert bearing	UC set-screw insert bearing
Codes	31 sizes
Source	JIB Ball Bearing Units catalogue, p. 74

UCPH201		Shaft: 12 mm \| Bearing: UC201 \| Housing: PH204 \| Mass: 0.96 kg
UCPH201-8		Shaft: 1/2 in \| Bearing: UC201-8 \| Housing: PH204 \| Mass: 0.96 kg
UCPH202		Shaft: 15 mm \| Bearing: UC202 \| Housing: PH204 \| Mass: 0.94 kg
UCPH202-10		Shaft: 5/8 in \| Bearing: UC202-10 \| Housing: PH204 \| Mass: 0.94 kg
UCPH203		Shaft: 17 mm \| Bearing: UC203 \| Housing: PH204 \| Mass: 0.93 kg
UCPH204-12		Shaft: 3/4 in \| Bearing: UC204-12 \| Housing: PH204 \| Mass: 0.91 kg
UCPH204		Shaft: 20 mm \| Bearing: UC204 \| Housing: PH204 \| Mass: 0.91 kg
UCPH205-14		Shaft: 7/8 in \| Bearing: UC205-14 \| Housing: PH205 \| Mass: 1.2 kg
UCPH205-15		Shaft: 15/16 in \| Bearing: UC205-15 \| Housing: PH205 \| Mass: 1.2 kg
UCPH205		Shaft: 25 mm \| Bearing: UC205 \| Housing: PH205 \| Mass: 1.2 kg
UCPH205-16		Shaft: 1 in \| Bearing: UC205-16 \| Housing: PH205 \| Mass: 1.2 kg
UCPH206-18		Shaft: 1-1/8 in \| Bearing: UC206-18 \| Housing: PH206 \| Mass: 1.6 kg
UCPH206		Shaft: 30 mm \| Bearing: UC206 \| Housing: PH206 \| Mass: 1.6 kg
UCPH206-19		Shaft: 1-3/16 in \| Bearing: UC206-19 \| Housing: PH206 \| Mass: 1.6 kg
UCPH206-20		Shaft: 1-1/4 in \| Bearing: UC206-20 \| Housing: PH206 \| Mass: 1.6 kg
UCPH207-20		Shaft: 1-1/4 in \| Bearing: UC207-20 \| Housing: PH207 \| Mass: 2 kg
UCPH207-21		Shaft: 1-5/16 in \| Bearing: UC207-21 \| Housing: PH207 \| Mass: 2 kg
UCPH207-22		Shaft: 1-3/8 in \| Bearing: UC207-22 \| Housing: PH207 \| Mass: 2 kg
UCPH207		Shaft: 35 mm \| Bearing: UC207 \| Housing: PH207 \| Mass: 2 kg
UCPH207-23		Shaft: 1-7/16 in \| Bearing: UC207-23 \| Housing: PH207 \| Mass: 2 kg
UCPH208-24		Shaft: 1-1/2 in \| Bearing: UC208-24 \| Housing: PH208 \| Mass: 2.7 kg
UCPH208-25		Shaft: 1-9/16 in \| Bearing: UC208-25 \| Housing: PH208 \| Mass: 2.7 kg
UCPH208		Shaft: 40 mm \| Bearing: UC208 \| Housing: PH208 \| Mass: 2.7 kg
UCPH209-26		Shaft: 1-5/8 in \| Bearing: UC209-26 \| Housing: PH209 \| Mass: 3 kg
UCPH209-27		Shaft: 1-11/16 in \| Bearing: UC209-27 \| Housing: PH209 \| Mass: 3 kg
UCPH209-28		Shaft: 1-3/4 in \| Bearing: UC209-28 \| Housing: PH209 \| Mass: 3 kg
UCPH209		Shaft: 45 mm \| Bearing: UC209 \| Housing: PH209 \| Mass: 3 kg
UCPH210-30		Shaft: 1-7/8 in \| Bearing: UC210-30 \| Housing: PH210 \| Mass: 3.5 kg
UCPH210-31		Shaft: 1-15/16 in \| Bearing: UC210-31 \| Housing: PH210 \| Mass: 3.5 kg
UCPH210		Shaft: 50 mm \| Bearing: UC210 \| Housing: PH210 \| Mass: 3.5 kg
UCPH210-32		Shaft: 2 in \| Bearing: UC210-32 \| Housing: PH210 \| Mass: 3.5 kg

Mounted Bearing UnitsJIB

31 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UCPH2 Pillow Block Units (Light Series, Set Screw)

Brand JIB·Mounted Bearing Units

Available part numbers (31)

UCPH201, UCPH201-8, UCPH202, UCPH202-10, UCPH203, UCPH204-12, UCPH204, UCPH205-14, UCPH205-15, UCPH205 + 21 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
