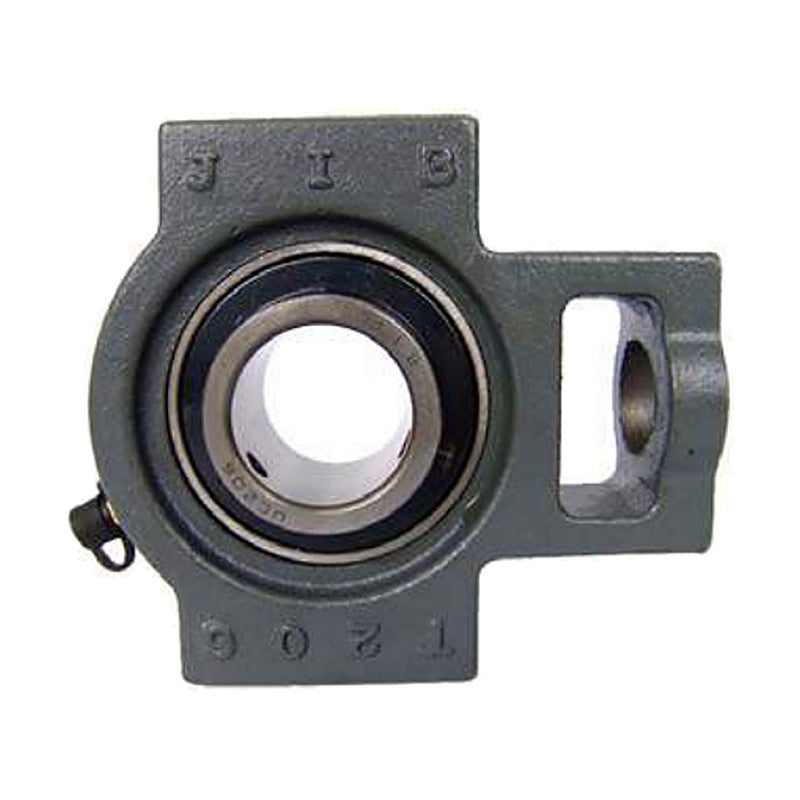

JIB UCT2 Take-Up Units (Light Series, Set Screw)

JIB UCT2 take-up units combine a cast iron take-up (T) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

Cast iron take-up (T) housing
Fitted with UC set-screw insert bearing
Self-aligning spherical outside diameter compensates for shaft misalignment
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (take-up unit)
Unit series	UCT2
Housing	cast iron take-up (T) housing
Insert bearing	UC set-screw insert bearing
Codes	49 sizes
Source	JIB Ball Bearing Units catalogue, p. 68

UCT201		Shaft: 12 mm \| Bearing: UC201 \| Housing: T204 \| Mass: 0.81 kg
UCT201-8		Shaft: 1/2 in \| Bearing: UC201-8 \| Housing: T204 \| Mass: 0.81 kg
UCT202		Shaft: 15 mm \| Bearing: UC202 \| Housing: T204 \| Mass: 0.79 kg
UCT202-10		Shaft: 5/8 in \| Bearing: UC202-10 \| Housing: T204 \| Mass: 0.79 kg
UCT203		Shaft: 17 mm \| Bearing: UC203 \| Housing: T204 \| Mass: 0.78 kg
UCT204-12		Shaft: 3/4 in \| Bearing: UC204-12 \| Housing: T204 \| Mass: 0.76 kg
UCT204		Shaft: 20 mm \| Bearing: UC204 \| Housing: T204 \| Mass: 0.76 kg
UCT205-14		Shaft: 7/8 in \| Bearing: UC205-14 \| Housing: T205 \| Mass: 0.84 kg
UCT205-15		Shaft: 15/16 in \| Bearing: UC205-15 \| Housing: T205 \| Mass: 0.84 kg
UCT205		Shaft: 25 mm \| Bearing: UC205 \| Housing: T205 \| Mass: 0.84 kg
UCT205-16		Shaft: 1 in \| Bearing: UC205-16 \| Housing: T205 \| Mass: 0.84 kg
UCT206-18		Shaft: 1-1/8 in \| Bearing: UC206-18 \| Housing: T206 \| Mass: 1.3 kg
UCT206		Shaft: 30 mm \| Bearing: UC206 \| Housing: T206 \| Mass: 1.3 kg
UCT206-19		Shaft: 1-3/16 in \| Bearing: UC206-19 \| Housing: T206 \| Mass: 1.3 kg
UCT206-20		Shaft: 1-1/4 in \| Bearing: UC206-20 \| Housing: T206 \| Mass: 1.3 kg
UCT207-20		Shaft: 1-1/4 in \| Bearing: UC207-20 \| Housing: T207 \| Mass: 1.6 kg
UCT207-21		Shaft: 1-5/16 in \| Bearing: UC207-21 \| Housing: T207 \| Mass: 1.6 kg
UCT207-22		Shaft: 1-3/8 in \| Bearing: UC207-22 \| Housing: T207 \| Mass: 1.6 kg
UCT207		Shaft: 35 mm \| Bearing: UC207 \| Housing: T207 \| Mass: 1.6 kg
UCT207-23		Shaft: 1-7/16 in \| Bearing: UC207-23 \| Housing: T207 \| Mass: 1.6 kg
UCT208-24		Shaft: 1-1/2 in \| Bearing: UC208-24 \| Housing: T208 \| Mass: 2.5 kg
UCT208-25		Shaft: 1-9/16 in \| Bearing: UC208-25 \| Housing: T208 \| Mass: 2.5 kg
UCT208		Shaft: 40 mm \| Bearing: UC208 \| Housing: T208 \| Mass: 2.5 kg
UCT209-26		Shaft: 1-5/8 in \| Bearing: UC209-26 \| Housing: T209 \| Mass: 2.4 kg
UCT209-27		Shaft: 1-11/16 in \| Bearing: UC209-27 \| Housing: T209 \| Mass: 2.4 kg
UCT209-28		Shaft: 1-3/4 in \| Bearing: UC209-28 \| Housing: T209 \| Mass: 2.4 kg
UCT209		Shaft: 45 mm \| Bearing: UC209 \| Housing: T209 \| Mass: 2.4 kg
UCT210-30		Shaft: 1-7/8 in \| Bearing: UC210-30 \| Housing: T210 \| Mass: 2.6 kg
UCT210-31		Shaft: 1-15/16 in \| Bearing: UC210-31 \| Housing: T210 \| Mass: 2.6 kg
UCT210		Shaft: 50 mm \| Bearing: UC210 \| Housing: T210 \| Mass: 2.6 kg
UCT210-32		Shaft: 2 in \| Bearing: UC210-32 \| Housing: T210 \| Mass: 2.6 kg
UCT211-32		Shaft: 2 in \| Bearing: UC211-32 \| Housing: T211 \| Mass: 4 kg
UCT211-34		Shaft: 2-1/8 in \| Bearing: UC211-34 \| Housing: T211 \| Mass: 4 kg
UCT211		Shaft: 55 mm \| Bearing: UC211 \| Housing: T211 \| Mass: 4 kg
UCT211-35		Shaft: 2-3/16 in \| Bearing: UC211-35 \| Housing: T211 \| Mass: 4 kg
UCT212-36		Shaft: 2-1/4 in \| Bearing: UC212-36 \| Housing: T212 \| Mass: 4.9 kg
UCT212		Shaft: 60 mm \| Bearing: UC212 \| Housing: T212 \| Mass: 4.9 kg
UCT212-38		Shaft: 2-3/8 in \| Bearing: UC212-38 \| Housing: T212 \| Mass: 4.9 kg
UCT212-39		Shaft: 2-7/16 in \| Bearing: UC212-39 \| Housing: T212 \| Mass: 4.9 kg
UCT213-40		Shaft: 2-1/2 in \| Bearing: UC213-40 \| Housing: T213 \| Mass: 6.9 kg
UCT213		Shaft: 65 mm \| Bearing: UC213 \| Housing: T213 \| Mass: 6.9 kg
UCT214-44		Shaft: 2-3/4 in \| Bearing: UC214-44 \| Housing: T214 \| Mass: 7 kg
UCT214		Shaft: 70 mm \| Bearing: UC214 \| Housing: T214 \| Mass: 7 kg
UCT215-47		Shaft: 2-15/16 in \| Bearing: UC215-47 \| Housing: T215 \| Mass: 7.3 kg
UCT215		Shaft: 75 mm \| Bearing: UC215 \| Housing: T215 \| Mass: 7.3 kg
UCT215-48		Shaft: 3 in \| Bearing: UC215-48 \| Housing: T215 \| Mass: 7.3 kg
UCT216		Shaft: 80 mm \| Bearing: UC216 \| Housing: T216 \| Mass: 8.2 kg
UCT217-52		Shaft: 3-1/4 in \| Bearing: UC217-52 \| Housing: T217 \| Mass: 11 kg
UCT217		Shaft: 85 mm \| Bearing: UC217 \| Housing: T217 \| Mass: 11 kg

Mounted Bearing UnitsJIB

49 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UCT2 Take-Up Units (Light Series, Set Screw)

Brand JIB·Mounted Bearing Units

Available part numbers (49)

UCT201, UCT201-8, UCT202, UCT202-10, UCT203, UCT204-12, UCT204, UCT205-14, UCT205-15, UCT205 + 39 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	UCT201	Shaft: 12 mm \| Bearing: UC201 \| Housing: T204 \| Mass: 0.81 kg
	UCT201-8	Shaft: 1/2 in \| Bearing: UC201-8 \| Housing: T204 \| Mass: 0.81 kg
	UCT202	Shaft: 15 mm \| Bearing: UC202 \| Housing: T204 \| Mass: 0.79 kg
	UCT202-10	Shaft: 5/8 in \| Bearing: UC202-10 \| Housing: T204 \| Mass: 0.79 kg
	UCT203	Shaft: 17 mm \| Bearing: UC203 \| Housing: T204 \| Mass: 0.78 kg
	UCT204-12	Shaft: 3/4 in \| Bearing: UC204-12 \| Housing: T204 \| Mass: 0.76 kg
	UCT204	Shaft: 20 mm \| Bearing: UC204 \| Housing: T204 \| Mass: 0.76 kg
	UCT205-14	Shaft: 7/8 in \| Bearing: UC205-14 \| Housing: T205 \| Mass: 0.84 kg
	UCT205-15	Shaft: 15/16 in \| Bearing: UC205-15 \| Housing: T205 \| Mass: 0.84 kg
	UCT205	Shaft: 25 mm \| Bearing: UC205 \| Housing: T205 \| Mass: 0.84 kg
	UCT205-16	Shaft: 1 in \| Bearing: UC205-16 \| Housing: T205 \| Mass: 0.84 kg
	UCT206-18	Shaft: 1-1/8 in \| Bearing: UC206-18 \| Housing: T206 \| Mass: 1.3 kg
	UCT206	Shaft: 30 mm \| Bearing: UC206 \| Housing: T206 \| Mass: 1.3 kg
	UCT206-19	Shaft: 1-3/16 in \| Bearing: UC206-19 \| Housing: T206 \| Mass: 1.3 kg
	UCT206-20	Shaft: 1-1/4 in \| Bearing: UC206-20 \| Housing: T206 \| Mass: 1.3 kg
	UCT207-20	Shaft: 1-1/4 in \| Bearing: UC207-20 \| Housing: T207 \| Mass: 1.6 kg
	UCT207-21	Shaft: 1-5/16 in \| Bearing: UC207-21 \| Housing: T207 \| Mass: 1.6 kg
	UCT207-22	Shaft: 1-3/8 in \| Bearing: UC207-22 \| Housing: T207 \| Mass: 1.6 kg
	UCT207	Shaft: 35 mm \| Bearing: UC207 \| Housing: T207 \| Mass: 1.6 kg
	UCT207-23	Shaft: 1-7/16 in \| Bearing: UC207-23 \| Housing: T207 \| Mass: 1.6 kg
	UCT208-24	Shaft: 1-1/2 in \| Bearing: UC208-24 \| Housing: T208 \| Mass: 2.5 kg
	UCT208-25	Shaft: 1-9/16 in \| Bearing: UC208-25 \| Housing: T208 \| Mass: 2.5 kg
	UCT208	Shaft: 40 mm \| Bearing: UC208 \| Housing: T208 \| Mass: 2.5 kg
	UCT209-26	Shaft: 1-5/8 in \| Bearing: UC209-26 \| Housing: T209 \| Mass: 2.4 kg
	UCT209-27	Shaft: 1-11/16 in \| Bearing: UC209-27 \| Housing: T209 \| Mass: 2.4 kg
	UCT209-28	Shaft: 1-3/4 in \| Bearing: UC209-28 \| Housing: T209 \| Mass: 2.4 kg
	UCT209	Shaft: 45 mm \| Bearing: UC209 \| Housing: T209 \| Mass: 2.4 kg
	UCT210-30	Shaft: 1-7/8 in \| Bearing: UC210-30 \| Housing: T210 \| Mass: 2.6 kg
	UCT210-31	Shaft: 1-15/16 in \| Bearing: UC210-31 \| Housing: T210 \| Mass: 2.6 kg
	UCT210	Shaft: 50 mm \| Bearing: UC210 \| Housing: T210 \| Mass: 2.6 kg
	UCT210-32	Shaft: 2 in \| Bearing: UC210-32 \| Housing: T210 \| Mass: 2.6 kg
	UCT211-32	Shaft: 2 in \| Bearing: UC211-32 \| Housing: T211 \| Mass: 4 kg
	UCT211-34	Shaft: 2-1/8 in \| Bearing: UC211-34 \| Housing: T211 \| Mass: 4 kg
	UCT211	Shaft: 55 mm \| Bearing: UC211 \| Housing: T211 \| Mass: 4 kg
	UCT211-35	Shaft: 2-3/16 in \| Bearing: UC211-35 \| Housing: T211 \| Mass: 4 kg
	UCT212-36	Shaft: 2-1/4 in \| Bearing: UC212-36 \| Housing: T212 \| Mass: 4.9 kg
	UCT212	Shaft: 60 mm \| Bearing: UC212 \| Housing: T212 \| Mass: 4.9 kg
	UCT212-38	Shaft: 2-3/8 in \| Bearing: UC212-38 \| Housing: T212 \| Mass: 4.9 kg
	UCT212-39	Shaft: 2-7/16 in \| Bearing: UC212-39 \| Housing: T212 \| Mass: 4.9 kg
	UCT213-40	Shaft: 2-1/2 in \| Bearing: UC213-40 \| Housing: T213 \| Mass: 6.9 kg
	UCT213	Shaft: 65 mm \| Bearing: UC213 \| Housing: T213 \| Mass: 6.9 kg
	UCT214-44	Shaft: 2-3/4 in \| Bearing: UC214-44 \| Housing: T214 \| Mass: 7 kg
	UCT214	Shaft: 70 mm \| Bearing: UC214 \| Housing: T214 \| Mass: 7 kg
	UCT215-47	Shaft: 2-15/16 in \| Bearing: UC215-47 \| Housing: T215 \| Mass: 7.3 kg
	UCT215	Shaft: 75 mm \| Bearing: UC215 \| Housing: T215 \| Mass: 7.3 kg
	UCT215-48	Shaft: 3 in \| Bearing: UC215-48 \| Housing: T215 \| Mass: 7.3 kg
	UCT216	Shaft: 80 mm \| Bearing: UC216 \| Housing: T216 \| Mass: 8.2 kg
	UCT217-52	Shaft: 3-1/4 in \| Bearing: UC217-52 \| Housing: T217 \| Mass: 11 kg
	UCT217	Shaft: 85 mm \| Bearing: UC217 \| Housing: T217 \| Mass: 11 kg
