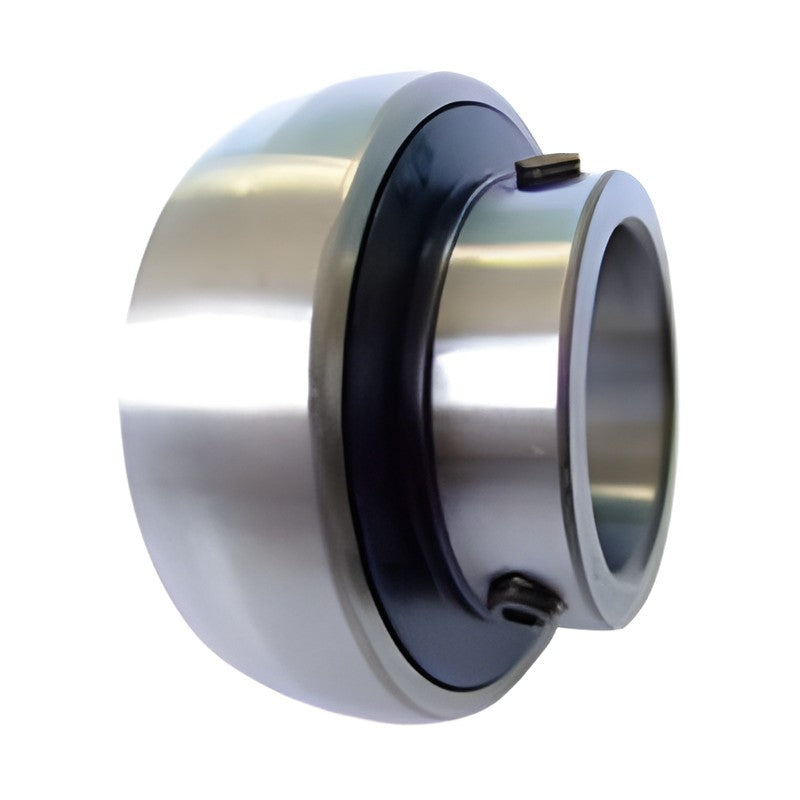

JIB UCX Insert Bearings (Set Screw)

JIB UCX Insert Bearings (Set Screw)

JIB UCX insert ball bearings (set-screw locking, cylindrical bore, spherical OD) for use in mounted bearing unit housings.

Key features

  • Set-screw locking, cylindrical bore, spherical OD
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series UCX
Design set-screw locking, cylindrical bore, spherical OD
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source JIB Ball Bearing Units catalogue, p. 110
UCX05 d: 25 mm | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.39 kg
UCX05-16 d: 1 in | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.38 kg
UCX06 d: 30 mm | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.58 kg
UCX06-19 d: 1-3/16 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.58 kg
UCX06-20 d: 1-1/4 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.55 kg
UCX07-22 d: 1-3/8 in | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.75 kg
UCX07 d: 35 mm | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.75 kg
UCX07-23 d: 1-7/16 in | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.72 kg
UCX08-24 d: 1-1/2 in | D: 85 mm | B: 49.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.87 kg
UCX08 d: 40 mm | D: 85 mm | B: 49.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.83 kg
UCX09-27 d: 1-11/16 in | D: 90 mm | B: 51.6 mm | C: 3510 kgf | C0: 2320 kgf
UCX09-28 d: 1-3/4 in | D: 90 mm | B: 51.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.97 kg
UCX09 d: 45 mm | D: 90 mm | B: 51.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.95 kg
UCX10-31 d: 1-15/16 in | D: 100 mm | B: 55.6 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.32 kg
UCX10 d: 50 mm | D: 100 mm | B: 55.6 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.29 kg
UCX10-32 d: 2 in | D: 100 mm | B: 55.6 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.26 kg
UCX11 d: 55 mm | D: 110 mm | B: 65.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.8 kg
UCX11-35 d: 2-3/16 in | D: 110 mm | B: 65.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.78 kg
UCX11-36 d: 2-1/4 in | D: 110 mm | B: 65.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.7 kg
UCX12 d: 60 mm | D: 120 mm | B: 65.1 mm | C: 5720 kgf | C0: 4000 kgf | Mass: 2.05 kg
UCX12-38 d: 2-3/8 in | D: 120 mm | B: 65.1 mm | C: 5720 kgf | C0: 4000 kgf | Mass: 2.03 kg
UCX12-39 d: 2-7/16 in | D: 120 mm | B: 65.1 mm | C: 5720 kgf | C0: 4000 kgf | Mass: 1.95 kg
UCX13-40 d: 2-1/2 in | D: 125 mm | B: 74.6 mm | C: 6220 kgf | C0: 4400 kgf | Mass: 2.61 kg
UCX13 d: 65 mm | D: 125 mm | B: 74.6 mm | C: 6220 kgf | C0: 4400 kgf | Mass: 2.52 kg
UCX14-44 d: 2-3/4 in | D: 130 mm | B: 77.8 mm | C: 6740 kgf | C0: 4820 kgf | Mass: 2.75 kg
UCX14 d: 70 mm | D: 130 mm | B: 77.8 mm | C: 6740 kgf | C0: 4820 kgf | Mass: 2.74 kg
UCX15 d: 75 mm | D: 140 mm | B: 82.6 mm | C: 7260 kgf | C0: 5300 kgf | Mass: 3.41 kg
UCX15-48 d: 3 in | D: 140 mm | B: 82.6 mm | C: 7260 kgf | C0: 5300 kgf | Mass: 3.32 kg
UCX16 d: 80 mm | D: 150 mm | B: 85.7 mm | C: 8390 kgf | C0: 6180 kgf | Mass: 3.87 kg
UCX17 d: 85 mm | D: 160 mm | B: 96 mm | C: 9600 kgf | C0: 7140 kgf | Mass: 5.05 kg
UCX18-56 d: 3-1/2 in | D: 170 mm | B: 104 mm | C: 10900 kgf | C0: 8710 kgf | Mass: 6 kg
UCX18 d: 90 mm | D: 170 mm | B: 104 mm | C: 10900 kgf | C0: 8710 kgf | Mass: 6 kg
UCX20 d: 100 mm | D: 190 mm | B: 117.5 mm | C: 13300 kgf | C0: 10500 kgf | Mass: 8.56 kg
UCX20-64 d: 4 in | D: 190 mm | B: 117.5 mm | C: 13300 kgf | C0: 10500 kgf | Mass: 8.56 kg
Insert BearingsJIB
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UCX Insert Bearings (Set Screw)

Brand JIB·Insert Bearings

Available part numbers (34)

UCX05, UCX05-16, UCX06, UCX06-19, UCX06-20, UCX07-22, UCX07, UCX07-23, UCX08-24, UCX08 + 24 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCX05d: 25 mm | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.39 kg
UCX05-16d: 1 in | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.38 kg
UCX06d: 30 mm | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.58 kg
UCX06-19d: 1-3/16 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.58 kg
UCX06-20d: 1-1/4 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.55 kg
UCX07-22d: 1-3/8 in | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.75 kg
UCX07d: 35 mm | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.75 kg
UCX07-23d: 1-7/16 in | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.72 kg
UCX08-24d: 1-1/2 in | D: 85 mm | B: 49.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.87 kg
UCX08d: 40 mm | D: 85 mm | B: 49.2 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.83 kg
UCX09-27d: 1-11/16 in | D: 90 mm | B: 51.6 mm | C: 3510 kgf | C0: 2320 kgf
UCX09-28d: 1-3/4 in | D: 90 mm | B: 51.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.97 kg
UCX09d: 45 mm | D: 90 mm | B: 51.6 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.95 kg
UCX10-31d: 1-15/16 in | D: 100 mm | B: 55.6 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.32 kg
UCX10d: 50 mm | D: 100 mm | B: 55.6 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.29 kg
UCX10-32d: 2 in | D: 100 mm | B: 55.6 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 1.26 kg
UCX11d: 55 mm | D: 110 mm | B: 65.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.8 kg
UCX11-35d: 2-3/16 in | D: 110 mm | B: 65.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.78 kg
UCX11-36d: 2-1/4 in | D: 110 mm | B: 65.1 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.7 kg
UCX12d: 60 mm | D: 120 mm | B: 65.1 mm | C: 5720 kgf | C0: 4000 kgf | Mass: 2.05 kg
UCX12-38d: 2-3/8 in | D: 120 mm | B: 65.1 mm | C: 5720 kgf | C0: 4000 kgf | Mass: 2.03 kg
UCX12-39d: 2-7/16 in | D: 120 mm | B: 65.1 mm | C: 5720 kgf | C0: 4000 kgf | Mass: 1.95 kg
UCX13-40d: 2-1/2 in | D: 125 mm | B: 74.6 mm | C: 6220 kgf | C0: 4400 kgf | Mass: 2.61 kg
UCX13d: 65 mm | D: 125 mm | B: 74.6 mm | C: 6220 kgf | C0: 4400 kgf | Mass: 2.52 kg
UCX14-44d: 2-3/4 in | D: 130 mm | B: 77.8 mm | C: 6740 kgf | C0: 4820 kgf | Mass: 2.75 kg
UCX14d: 70 mm | D: 130 mm | B: 77.8 mm | C: 6740 kgf | C0: 4820 kgf | Mass: 2.74 kg
UCX15d: 75 mm | D: 140 mm | B: 82.6 mm | C: 7260 kgf | C0: 5300 kgf | Mass: 3.41 kg
UCX15-48d: 3 in | D: 140 mm | B: 82.6 mm | C: 7260 kgf | C0: 5300 kgf | Mass: 3.32 kg
UCX16d: 80 mm | D: 150 mm | B: 85.7 mm | C: 8390 kgf | C0: 6180 kgf | Mass: 3.87 kg
UCX17d: 85 mm | D: 160 mm | B: 96 mm | C: 9600 kgf | C0: 7140 kgf | Mass: 5.05 kg
UCX18-56d: 3-1/2 in | D: 170 mm | B: 104 mm | C: 10900 kgf | C0: 8710 kgf | Mass: 6 kg
UCX18d: 90 mm | D: 170 mm | B: 104 mm | C: 10900 kgf | C0: 8710 kgf | Mass: 6 kg
UCX20d: 100 mm | D: 190 mm | B: 117.5 mm | C: 13300 kgf | C0: 10500 kgf | Mass: 8.56 kg
UCX20-64d: 4 in | D: 190 mm | B: 117.5 mm | C: 13300 kgf | C0: 10500 kgf | Mass: 8.56 kg

Need a different model, or a part not listed here? Send us your parts list →
