JIB UFL / MUFL Silver Series Miniature 2-Bolt Flange Units (8-30 mm)

JIB UFL / MUFL Silver Series Miniature 2-Bolt Flange Units (8-30 mm)

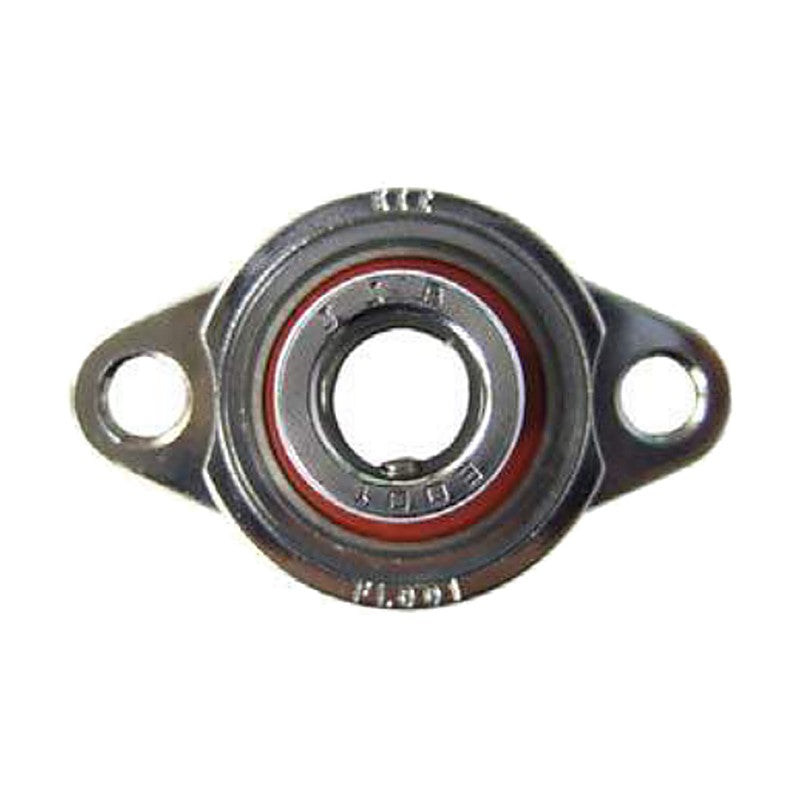

JIB Silver Series miniature 2-bolt flange units for shafts 8-30 mm, available in steel (UFL) and stainless steel (MUFL) executions.

Key features

  • Zinc-alloy (silver) miniature housing
  • USA: eccentric collar, USB: set-screw, USC: plain-bore insert
  • MUS.. prefix = stainless steel series
  • Compact units for light conveyors, food and packaging machinery

Specifications

Product Miniature 2-bolt flange unit
Series UFL / MUFL
Insert types USA / USB / USC (MUSA / MUSB / MUSC)
Brand JIB
Product type Mounted Bearing Units
Source JIB Ball Bearing Units catalogue, p. 108
USAFL08 Shaft: 8 mm | Bearing: USA08 | Housing: FL08 | Mass: 30 g | Material: Steel
MUSAFL08 Shaft: 8 mm | Bearing: MUSA08 | Housing: MFL08 | Mass: 30 g | Material: Stainless
USBFL08 Shaft: 8 mm | Bearing: USB08 | Housing: FL08 | Mass: 26 g | Material: Steel
MUSBFL08 Shaft: 8 mm | Bearing: MUSB08 | Housing: MFL08 | Mass: 26 g | Material: Stainless
USCFL08 Shaft: 8 mm | Bearing: USC08 | Housing: FL08 | Mass: 24 g | Material: Steel
MUSCFL08 Shaft: 8 mm | Bearing: MUSC08 | Housing: MFL08 | Mass: 24 g | Material: Stainless
USAFL000 Shaft: 10 mm | Bearing: USA000 | Housing: FL000 | Mass: 65 g | Material: Steel
MUSAFL000 Shaft: 10 mm | Bearing: MUSA000 | Housing: MFL000 | Mass: 65 g | Material: Stainless
USBFL000 Shaft: 10 mm | Bearing: USB000 | Housing: FL000 | Mass: 65 g | Material: Steel
MUSBFL000 Shaft: 10 mm | Bearing: MUSB000 | Housing: MFL000 | Mass: 65 g | Material: Stainless
USCFL000 Shaft: 10 mm | Bearing: USC000 | Housing: FL000 | Mass: 53 g | Material: Steel
MUSCFL000 Shaft: 10 mm | Bearing: MUSC000 | Housing: MFL000 | Mass: 53 g | Material: Stainless
USAFL001 Shaft: 12 mm | Bearing: USA001 | Housing: FL001 | Mass: 76 g | Material: Steel
MUSAFL001 Shaft: 12 mm | Bearing: MUSA001 | Housing: MFL001 | Mass: 76 g | Material: Stainless
USBFL001 Shaft: 12 mm | Bearing: USB001 | Housing: FL001 | Mass: 70 g | Material: Steel
MUSBFL001 Shaft: 12 mm | Bearing: MUSB001 | Housing: MFL001 | Mass: 70 g | Material: Stainless
USCFL001 Shaft: 12 mm | Bearing: USC001 | Housing: FL001 | Mass: 57 g | Material: Steel
MUSCFL001 Shaft: 12 mm | Bearing: MUSC001 | Housing: MFL001 | Mass: 57 g | Material: Stainless
USAFL002 Shaft: 15 mm | Bearing: USA002 | Housing: FL002 | Mass: 100 g | Material: Steel
MUSAFL002 Shaft: 15 mm | Bearing: MUSA002 | Housing: MFL002 | Mass: 100 g | Material: Stainless
USBFL002 Shaft: 15 mm | Bearing: USB002 | Housing: FL002 | Mass: 90 g | Material: Steel
MUSBFL002 Shaft: 15 mm | Bearing: MUSB002 | Housing: MFL002 | Mass: 90 g | Material: Stainless
USCFL002 Shaft: 15 mm | Bearing: USC002 | Housing: FL002 | Mass: 79 g | Material: Steel
MUSCFL002 Shaft: 15 mm | Bearing: MUSC002 | Housing: MFL002 | Mass: 79 g | Material: Stainless
USAFL003 Shaft: 17 mm | Bearing: USA003 | Housing: FL003 | Mass: 130 g | Material: Steel
MUSAFL003 Shaft: 17 mm | Bearing: MUSA003 | Housing: MFL003 | Mass: 130 g | Material: Stainless
USBFL003 Shaft: 17 mm | Bearing: USB003 | Housing: FL003 | Mass: 115 g | Material: Steel
MUSBFL003 Shaft: 17 mm | Bearing: MUSB003 | Housing: MFL003 | Mass: 115 g | Material: Stainless
USCFL003 Shaft: 17 mm | Bearing: USC003 | Housing: FL003 | Mass: 105 g | Material: Steel
MUSCFL003 Shaft: 17 mm | Bearing: MUSC003 | Housing: MFL003 | Mass: 105 g | Material: Stainless
USAFL004 Shaft: 20 mm | Bearing: USA004 | Housing: FL004 | Mass: 205 g | Material: Steel
MUSAFL004 Shaft: 20 mm | Bearing: MUSA004 | Housing: MFL004 | Mass: 205 g | Material: Stainless
USBFL004 Shaft: 20 mm | Bearing: USB004 | Housing: FL004 | Mass: 190 g | Material: Steel
MUSBFL004 Shaft: 20 mm | Bearing: MUSB004 | Housing: MFL004 | Mass: 190 g | Material: Stainless
USCFL004 Shaft: 20 mm | Bearing: USC004 | Housing: FL004 | Mass: 163 g | Material: Steel
MUSCFL004 Shaft: 20 mm | Bearing: MUSC004 | Housing: MFL004 | Mass: 163 g | Material: Stainless
USAFL005 Shaft: 25 mm | Bearing: USA005 | Housing: FL005 | Mass: 245 g | Material: Steel
MUSAFL005 Shaft: 25 mm | Bearing: MUSA005 | Housing: MFL005 | Mass: 245 g | Material: Stainless
USBFL005 Shaft: 25 mm | Bearing: USB005 | Housing: FL005 | Mass: 220 g | Material: Steel
MUSBFL005 Shaft: 25 mm | Bearing: MUSB005 | Housing: MFL005 | Mass: 220 g | Material: Stainless
USCFL005 Shaft: 25 mm | Bearing: USC005 | Housing: FL005 | Mass: 203 g | Material: Steel
MUSCFL005 Shaft: 25 mm | Bearing: MUSC005 | Housing: MFL005 | Mass: 203 g | Material: Stainless
USAFL006 Shaft: 30 mm | Bearing: USA006 | Housing: FL006 | Mass: 355 g | Material: Steel
MUSAFL006 Shaft: 30 mm | Bearing: MUSA006 | Housing: MFL006 | Mass: 355 g | Material: Stainless
USBFL006 Shaft: 30 mm | Bearing: USB006 | Housing: FL006 | Mass: 340 g | Material: Steel
MUSBFL006 Shaft: 30 mm | Bearing: MUSB006 | Housing: MFL006 | Mass: 340 g | Material: Stainless
USCFL006 Shaft: 30 mm | Bearing: USC006 | Housing: FL006 | Mass: 280 g | Material: Steel
MUSCFL006 Shaft: 30 mm | Bearing: MUSC006 | Housing: MFL006 | Mass: 280 g | Material: Stainless
Mounted Bearing UnitsJIB
48 product codes available in this family
