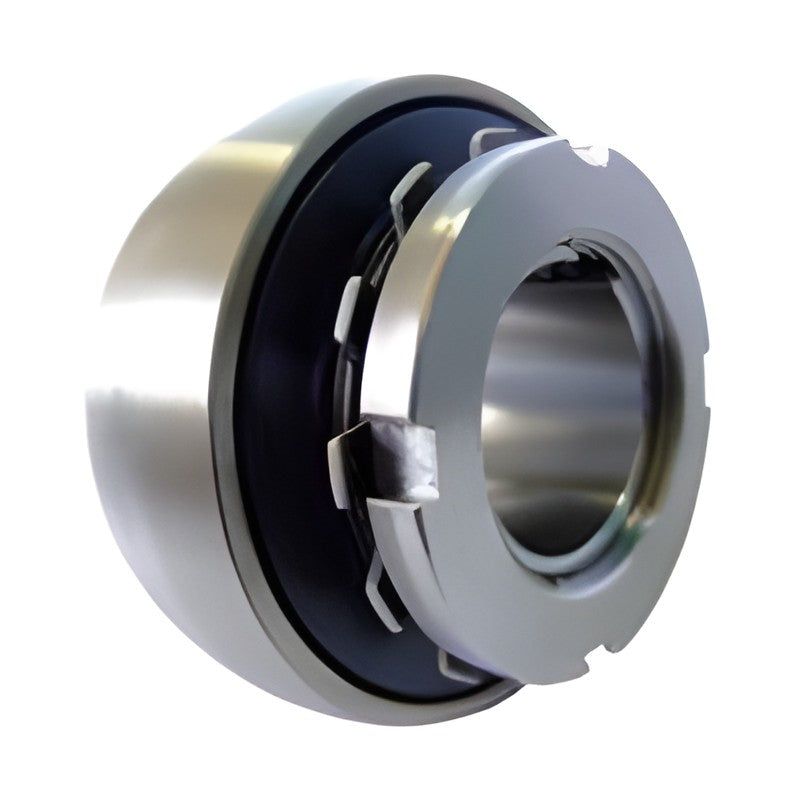

JIB UK2 Insert Bearings (Tapered Bore)

JIB UK2 Insert Bearings (Tapered Bore)

JIB UK2 insert ball bearings (tapered bore (1:12) for adapter sleeve mounting) for use in mounted bearing unit housings.

Key features

  • Tapered bore (1:12) for adapter sleeve mounting
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series UK2
Design tapered bore (1:12) for adapter sleeve mounting
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source JIB Ball Bearing Units catalogue, p. 112
UK205 d: 25 mm | D: 52 mm | B: 23 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.16 kg
UK206 d: 30 mm | D: 62 mm | B: 26 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.25 kg
UK207 d: 35 mm | D: 72 mm | B: 27 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.37 kg
UK208 d: 40 mm | D: 80 mm | B: 29 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.47 kg
UK209 d: 45 mm | D: 85 mm | B: 30 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.52 kg
UK210 d: 50 mm | D: 90 mm | B: 31 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.59 kg
UK211 d: 55 mm | D: 100 mm | B: 33 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.8 kg
UK212 d: 60 mm | D: 110 mm | B: 36 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.02 kg
UK213 d: 65 mm | D: 120 mm | B: 38 mm | C: 5720 kgf | C0: 4000 kgf | Mass: 1.34 kg
UK215 d: 75 mm | D: 130 mm | B: 41 mm | C: 6740 kgf | C0: 4820 kgf | Mass: 1.5 kg
UK216 d: 80 mm | D: 140 mm | B: 44 mm | C: 7260 kgf | C0: 5300 kgf | Mass: 1.96 kg
UK217 d: 85 mm | D: 150 mm | B: 46 mm | C: 8390 kgf | C0: 6180 kgf | Mass: 2.42 kg
UK218 d: 90 mm | D: 160 mm | B: 49 mm | C: 9600 kgf | C0: 7140 kgf | Mass: 2.9 kg
Insert BearingsJIB
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UK2 Insert Bearings (Tapered Bore)

Brand JIB·Insert Bearings

Available part numbers (13)

UK205, UK206, UK207, UK208, UK209, UK210, UK211, UK212, UK213, UK215 + 3 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UK205d: 25 mm | D: 52 mm | B: 23 mm | C: 1400 kgf | C0: 790 kgf | Mass: 0.16 kg
UK206d: 30 mm | D: 62 mm | B: 26 mm | C: 1950 kgf | C0: 1130 kgf | Mass: 0.25 kg
UK207d: 35 mm | D: 72 mm | B: 27 mm | C: 2570 kgf | C0: 1540 kgf | Mass: 0.37 kg
UK208d: 40 mm | D: 80 mm | B: 29 mm | C: 2910 kgf | C0: 1790 kgf | Mass: 0.47 kg
UK209d: 45 mm | D: 85 mm | B: 30 mm | C: 3200 kgf | C0: 2040 kgf | Mass: 0.52 kg
UK210d: 50 mm | D: 90 mm | B: 31 mm | C: 3510 kgf | C0: 2320 kgf | Mass: 0.59 kg
UK211d: 55 mm | D: 100 mm | B: 33 mm | C: 4330 kgf | C0: 2940 kgf | Mass: 0.8 kg
UK212d: 60 mm | D: 110 mm | B: 36 mm | C: 5240 kgf | C0: 3610 kgf | Mass: 1.02 kg
UK213d: 65 mm | D: 120 mm | B: 38 mm | C: 5720 kgf | C0: 4000 kgf | Mass: 1.34 kg
UK215d: 75 mm | D: 130 mm | B: 41 mm | C: 6740 kgf | C0: 4820 kgf | Mass: 1.5 kg
UK216d: 80 mm | D: 140 mm | B: 44 mm | C: 7260 kgf | C0: 5300 kgf | Mass: 1.96 kg
UK217d: 85 mm | D: 150 mm | B: 46 mm | C: 8390 kgf | C0: 6180 kgf | Mass: 2.42 kg
UK218d: 90 mm | D: 160 mm | B: 49 mm | C: 9600 kgf | C0: 7140 kgf | Mass: 2.9 kg
