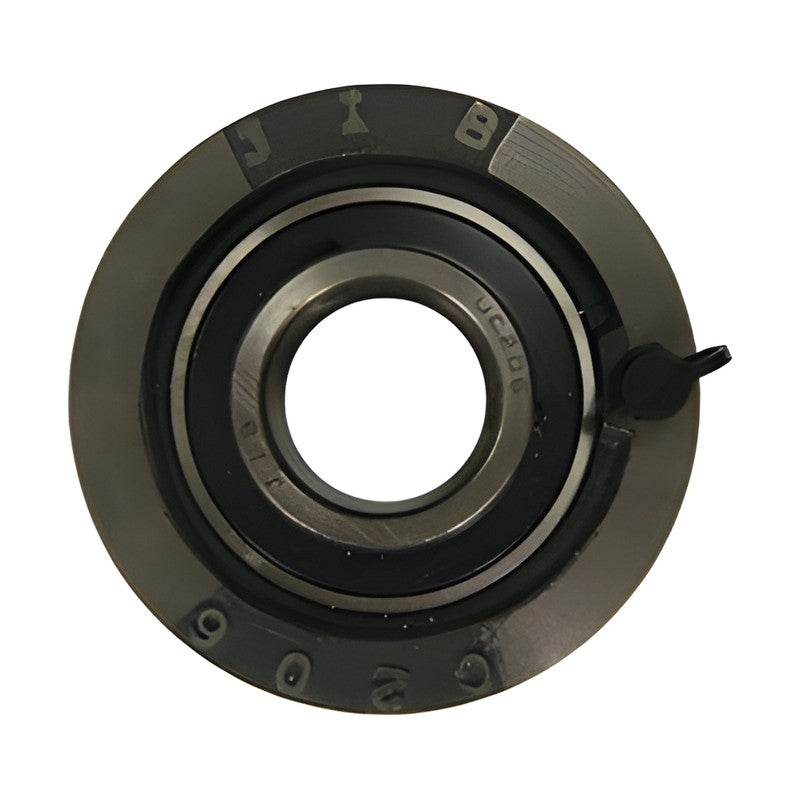

JIB UKC2 Cartridge Units (Light Series, Adapter Mount)

JIB UKC2 Cartridge Units (Light Series, Adapter Mount)

JIB UKC2 cartridge units combine a cylindrical cartridge (C) housing with a UK tapered-bore insert bearing on adapter sleeve. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Cylindrical cartridge (C) housing with adapter-mounted insert
  • Fitted with UK tapered-bore insert bearing on adapter sleeve
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Adapter sleeve mounting locks the bearing on plain shafts without set screws

Specifications

Product Mounted ball bearing unit (cartridge unit)
Unit series UKC2
Housing cylindrical cartridge (C) housing
Insert bearing UK tapered-bore insert bearing on adapter sleeve
Codes 9 sizes
Adapter sleeve H23 series (ordered separately or as set)
Source JIB Ball Bearing Units catalogue, p. 95
UKC205 Shaft: 20 mm (adapter) | Bearing: UK205 | Housing: C205 | Mass: 0.68 kg
UKC206 Shaft: 25 mm (adapter) | Bearing: UK206 | Housing: C206 | Mass: 0.85 kg
UKC207 Shaft: 30 mm (adapter) | Bearing: UK207 | Housing: C207 | Mass: 0.97 kg
UKC208 Shaft: 35 mm (adapter) | Bearing: UK208 | Housing: C208 | Mass: 1.3 kg
UKC209 Shaft: 40 mm (adapter) | Bearing: UK209 | Housing: C209 | Mass: 1.6 kg
UKC210 Shaft: 45 mm (adapter) | Bearing: UK210 | Housing: C210 | Mass: 2 kg
UKC211 Shaft: 50 mm (adapter) | Bearing: UK211 | Housing: C211 | Mass: 2.3 kg
UKC212 Shaft: 55 mm (adapter) | Bearing: UK212 | Housing: C212 | Mass: 2.5 kg
UKC213 Shaft: 60 mm (adapter) | Bearing: UK213 | Housing: C213 | Mass: 3 kg
Mounted Bearing UnitsJIB
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UKC2 Cartridge Units (Light Series, Adapter Mount)

Brand JIB·Mounted Bearing Units

Available part numbers (9)

UKC205, UKC206, UKC207, UKC208, UKC209, UKC210, UKC211, UKC212, UKC213

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UKC205Shaft: 20 mm (adapter) | Bearing: UK205 | Housing: C205 | Mass: 0.68 kg
UKC206Shaft: 25 mm (adapter) | Bearing: UK206 | Housing: C206 | Mass: 0.85 kg
UKC207Shaft: 30 mm (adapter) | Bearing: UK207 | Housing: C207 | Mass: 0.97 kg
UKC208Shaft: 35 mm (adapter) | Bearing: UK208 | Housing: C208 | Mass: 1.3 kg
UKC209Shaft: 40 mm (adapter) | Bearing: UK209 | Housing: C209 | Mass: 1.6 kg
UKC210Shaft: 45 mm (adapter) | Bearing: UK210 | Housing: C210 | Mass: 2 kg
UKC211Shaft: 50 mm (adapter) | Bearing: UK211 | Housing: C211 | Mass: 2.3 kg
UKC212Shaft: 55 mm (adapter) | Bearing: UK212 | Housing: C212 | Mass: 2.5 kg
UKC213Shaft: 60 mm (adapter) | Bearing: UK213 | Housing: C213 | Mass: 3 kg
