JIB UKF2 Square Flange Units (Light Series, Adapter Mount)

JIB UKF2 Square Flange Units (Light Series, Adapter Mount)

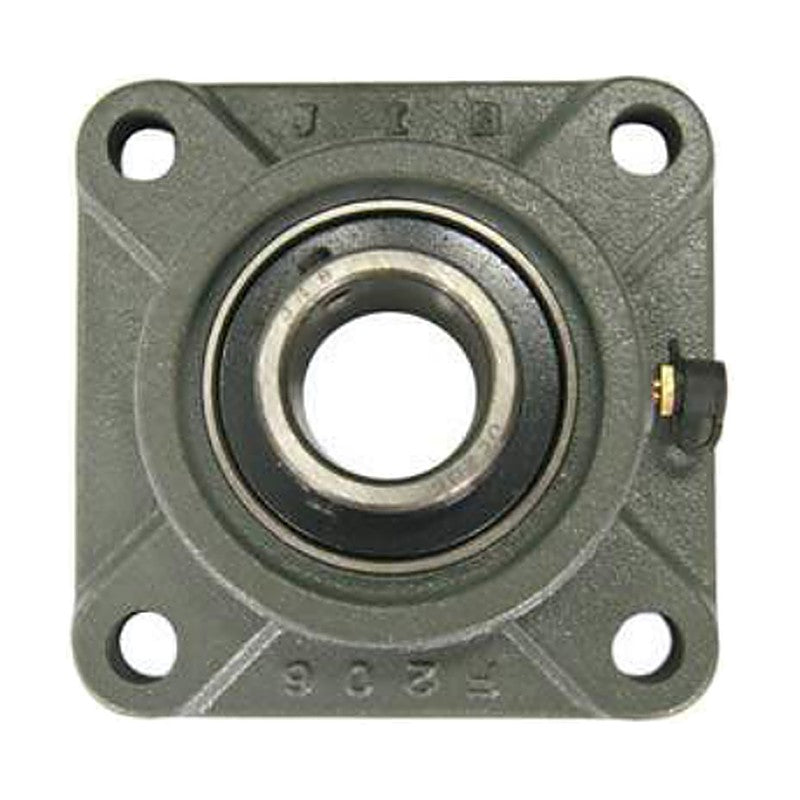

JIB UKF2 square flange units combine a cast iron 4-bolt square flange (F) housing with a UK tapered-bore insert bearing on adapter sleeve. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Cast iron 4-bolt square flange (F) housing with adapter-mounted insert
  • Fitted with UK tapered-bore insert bearing on adapter sleeve
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Adapter sleeve mounting locks the bearing on plain shafts without set screws

Specifications

Product Mounted ball bearing unit (square flange unit)
Unit series UKF2
Housing cast iron 4-bolt square flange (F) housing
Insert bearing UK tapered-bore insert bearing on adapter sleeve
Codes 13 sizes
Adapter sleeve H23 series (ordered separately or as set)
Source JIB Ball Bearing Units catalogue, p. 82
UKF205 Shaft: 20 mm (adapter) | Bearing: UK205 | Housing: F205 | Mass: 0.87 kg
UKF206 Shaft: 25 mm (adapter) | Bearing: UK206 | Housing: F206 | Mass: 1.3 kg
UKF207 Shaft: 30 mm (adapter) | Bearing: UK207 | Housing: F207 | Mass: 1.6 kg
UKF208 Shaft: 35 mm (adapter) | Bearing: UK208 | Housing: F208 | Mass: 1.9 kg
UKF209 Shaft: 40 mm (adapter) | Bearing: UK209 | Housing: F209 | Mass: 2.3 kg
UKF210 Shaft: 45 mm (adapter) | Bearing: UK210 | Housing: F210 | Mass: 2.6 kg
UKF211 Shaft: 50 mm (adapter) | Bearing: UK211 | Housing: F211 | Mass: 3.5 kg
UKF212 Shaft: 55 mm (adapter) | Bearing: UK212 | Housing: F212 | Mass: 4.1 kg
UKF213 Shaft: 60 mm (adapter) | Bearing: UK213 | Housing: F213 | Mass: 5.1 kg
UKF215 Shaft: 65 mm (adapter) | Bearing: UK215 | Housing: F215 | Mass: 6.5 kg
UKF216 Shaft: 70 mm (adapter) | Bearing: UK216 | Housing: F216 | Mass: 7.6 kg
UKF217 Shaft: 75 mm (adapter) | Bearing: UK217 | Housing: F217 | Mass: 9 kg
UKF218 Shaft: 80 mm (adapter) | Bearing: UK218 | Housing: F218 | Mass: 11.4 kg
Mounted Bearing UnitsJIB
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UKF2 Square Flange Units (Light Series, Adapter Mount)

Brand JIB·Mounted Bearing Units

Available part numbers (13)

UKF205, UKF206, UKF207, UKF208, UKF209, UKF210, UKF211, UKF212, UKF213, UKF215 + 3 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UKF205Shaft: 20 mm (adapter) | Bearing: UK205 | Housing: F205 | Mass: 0.87 kg
UKF206Shaft: 25 mm (adapter) | Bearing: UK206 | Housing: F206 | Mass: 1.3 kg
UKF207Shaft: 30 mm (adapter) | Bearing: UK207 | Housing: F207 | Mass: 1.6 kg
UKF208Shaft: 35 mm (adapter) | Bearing: UK208 | Housing: F208 | Mass: 1.9 kg
UKF209Shaft: 40 mm (adapter) | Bearing: UK209 | Housing: F209 | Mass: 2.3 kg
UKF210Shaft: 45 mm (adapter) | Bearing: UK210 | Housing: F210 | Mass: 2.6 kg
UKF211Shaft: 50 mm (adapter) | Bearing: UK211 | Housing: F211 | Mass: 3.5 kg
UKF212Shaft: 55 mm (adapter) | Bearing: UK212 | Housing: F212 | Mass: 4.1 kg
UKF213Shaft: 60 mm (adapter) | Bearing: UK213 | Housing: F213 | Mass: 5.1 kg
UKF215Shaft: 65 mm (adapter) | Bearing: UK215 | Housing: F215 | Mass: 6.5 kg
UKF216Shaft: 70 mm (adapter) | Bearing: UK216 | Housing: F216 | Mass: 7.6 kg
UKF217Shaft: 75 mm (adapter) | Bearing: UK217 | Housing: F217 | Mass: 9 kg
UKF218Shaft: 80 mm (adapter) | Bearing: UK218 | Housing: F218 | Mass: 11.4 kg
