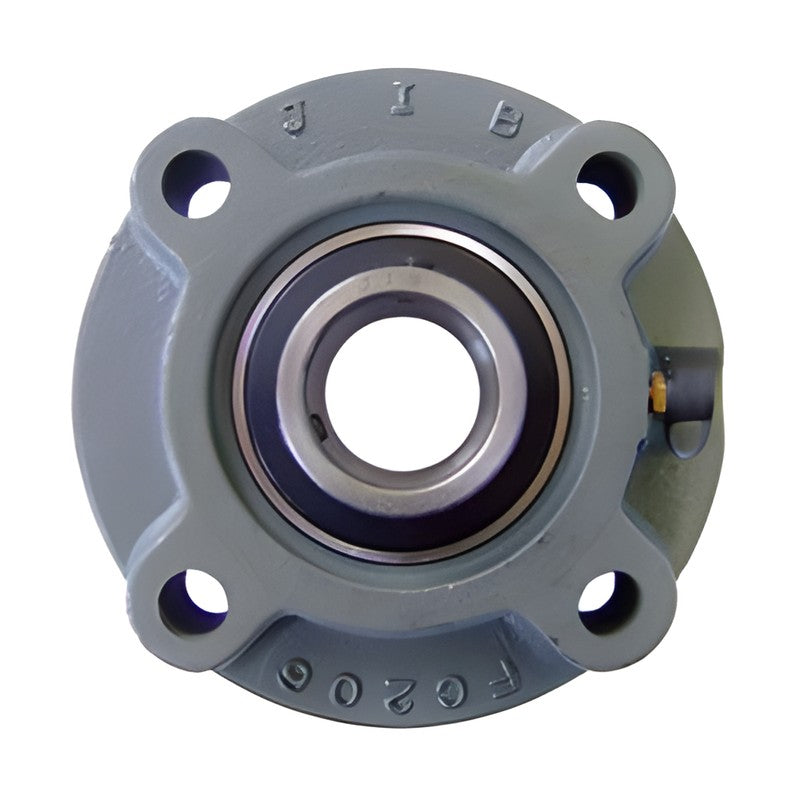

JIB UKFC2 Round Flange Units (Light Series, Adapter Mount)

JIB UKFC2 Round Flange Units (Light Series, Adapter Mount)

JIB UKFC2 round flange units combine a cast iron round flange cartridge (FC) housing with a UK tapered-bore insert bearing on adapter sleeve. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Cast iron round flange cartridge (FC) housing with adapter-mounted insert
  • Fitted with UK tapered-bore insert bearing on adapter sleeve
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Adapter sleeve mounting locks the bearing on plain shafts without set screws

Specifications

Product Mounted ball bearing unit (round flange unit)
Unit series UKFC2
Housing cast iron round flange cartridge (FC) housing
Insert bearing UK tapered-bore insert bearing on adapter sleeve
Codes 13 sizes
Adapter sleeve H23 series (ordered separately or as set)
Source JIB Ball Bearing Units catalogue, p. 86
UKFC205 Shaft: 20 mm (adapter) | Bearing: UK205 | Housing: FC205 | Mass: 0.99 kg
UKFC206 Shaft: 25 mm (adapter) | Bearing: UK206 | Housing: FC206 | Mass: 1.3 kg
UKFC207 Shaft: 30 mm (adapter) | Bearing: UK207 | Housing: FC207 | Mass: 1.7 kg
UKFC208 Shaft: 35 mm (adapter) | Bearing: UK208 | Housing: FC208 | Mass: 2 kg
UKFC209 Shaft: 40 mm (adapter) | Bearing: UK209 | Housing: FC209 | Mass: 2.7 kg
UKFC210 Shaft: 45 mm (adapter) | Bearing: UK210 | Housing: FC210 | Mass: 3 kg
UKFC211 Shaft: 50 mm (adapter) | Bearing: UK211 | Housing: FC211 | Mass: 4.3 kg
UKFC212 Shaft: 55 mm (adapter) | Bearing: UK212 | Housing: FC212 | Mass: 4.9 kg
UKFC213 Shaft: 60 mm (adapter) | Bearing: UK213 | Housing: FC213 | Mass: 5.5 kg
UKFC215 Shaft: 65 mm (adapter) | Bearing: UK215 | Housing: FC215 | Mass: 7.4 kg
UKFC216 Shaft: 70 mm (adapter) | Bearing: UK216 | Housing: FC216 | Mass: 9 kg
UKFC217 Shaft: 75 mm (adapter) | Bearing: UK217 | Housing: FC217 | Mass: 10.4 kg
UKFC218 Shaft: 80 mm (adapter) | Bearing: UK218 | Housing: FC218 | Mass: 13.3 kg
Mounted Bearing UnitsJIB
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UKFC2 Round Flange Units (Light Series, Adapter Mount)

Brand JIB·Mounted Bearing Units

Available part numbers (13)

UKFC205, UKFC206, UKFC207, UKFC208, UKFC209, UKFC210, UKFC211, UKFC212, UKFC213, UKFC215 + 3 more — see full table ↓
