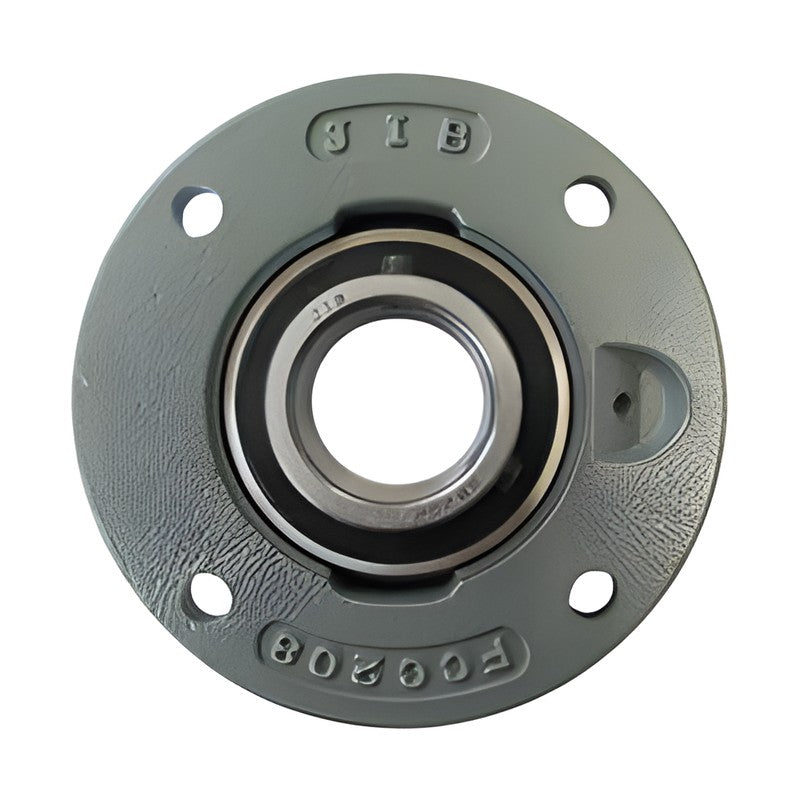

JIB UKFCC2 Round Flange Units (Light Series, Adapter Mount)

JIB UKFCC2 Round Flange Units (Light Series, Adapter Mount)

JIB UKFCC2 round flange units combine a compact round flange cartridge (FCC) housing with a UK tapered-bore insert bearing on adapter sleeve. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Compact round flange cartridge (FCC) housing with adapter-mounted insert
  • Fitted with UK tapered-bore insert bearing on adapter sleeve
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Adapter sleeve mounting locks the bearing on plain shafts without set screws

Specifications

Product Mounted ball bearing unit (round flange unit)
Unit series UKFCC2
Housing compact round flange cartridge (FCC) housing
Insert bearing UK tapered-bore insert bearing on adapter sleeve
Codes 8 sizes
Adapter sleeve H23 series (ordered separately or as set)
Source JIB Ball Bearing Units catalogue, p. 88
UKFCC205 Shaft: 20 mm (adapter) | Bearing: UK205 | Housing: FCC205 | Mass: 0.74 kg
UKFCC206 Shaft: 25 mm (adapter) | Bearing: UK206 | Housing: FCC206 | Mass: 0.89 kg
UKFCC207 Shaft: 30 mm (adapter) | Bearing: UK207 | Housing: FCC207 | Mass: 1.11 kg
UKFCC208 Shaft: 35 mm (adapter) | Bearing: UK208 | Housing: FCC208 | Mass: 1.49 kg
UKFCC209 Shaft: 40 mm (adapter) | Bearing: UK209 | Housing: FCC209 | Mass: 1.9 kg
UKFCC210 Shaft: 45 mm (adapter) | Bearing: UK210 | Housing: FCC210 | Mass: 2.01 kg
UKFCC211 Shaft: 50 mm (adapter) | Bearing: UK211 | Housing: FCC211 | Mass: 2.9 kg
UKFCC212 Shaft: 55 mm (adapter) | Bearing: UK212 | Housing: FCC212 | Mass: 3.44 kg
Mounted Bearing UnitsJIB
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UKFCC2 Round Flange Units (Light Series, Adapter Mount)

Brand JIB·Mounted Bearing Units

Available part numbers (8)

UKFCC205, UKFCC206, UKFCC207, UKFCC208, UKFCC209, UKFCC210, UKFCC211, UKFCC212
