JIB UKPX Pillow Block Units (Medium Series, Adapter Mount)

JIB UKPX Pillow Block Units (Medium Series, Adapter Mount)

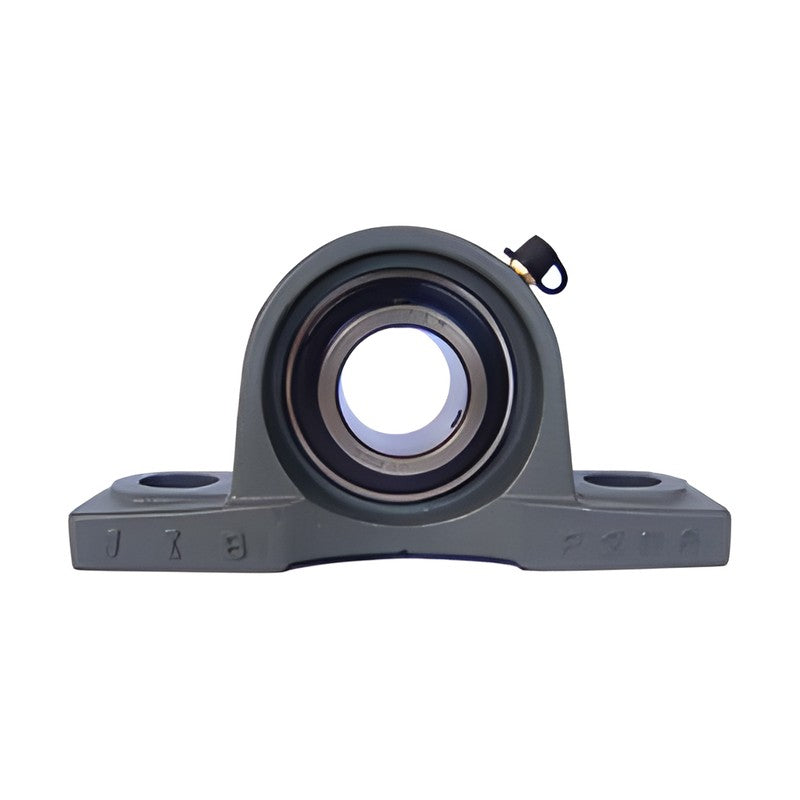

JIB UKPX pillow block units combine a cast iron pillow block (P) housing with a UK tapered-bore insert bearing on adapter sleeve. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Cast iron pillow block (P) housing with tapered-bore insert on adapter sleeve
  • Fitted with UK tapered-bore insert bearing on adapter sleeve
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Adapter sleeve mounting locks the bearing on plain shafts without set screws

Specifications

Product Mounted ball bearing unit (pillow block unit)
Unit series UKPX
Housing cast iron pillow block (P) housing
Insert bearing UK tapered-bore insert bearing on adapter sleeve
Codes 14 sizes
Adapter sleeve H23 series (ordered separately or as set)
Source JIB Ball Bearing Units catalogue, p. 80
UKPX05 Shaft: 20 mm (adapter) | Bearing: UKX05 | Housing: PX05 | Mass: 1.5 kg
UKPX06 Shaft: 25 mm (adapter) | Bearing: UKX06 | Housing: PX06 | Mass: 2.1 kg
UKPX07 Shaft: 30 mm (adapter) | Bearing: UKX07 | Housing: PX07 | Mass: 2.7 kg
UKPX08 Shaft: 35 mm (adapter) | Bearing: UKX08 | Housing: PX08 | Mass: 3.5 kg
UKPX09 Shaft: 40 mm (adapter) | Bearing: UKX09 | Housing: PX09 | Mass: 3.7 kg
UKPX10 Shaft: 45 mm (adapter) | Bearing: UKX10 | Housing: PX10 | Mass: 4.6 kg
UKPX11 Shaft: 50 mm (adapter) | Bearing: UKX11 | Housing: PX11 | Mass: 6.2 kg
UKPX12 Shaft: 55 mm (adapter) | Bearing: UKX12 | Housing: PX12 | Mass: 7.5 kg
UKPX13 Shaft: 60 mm (adapter) | Bearing: UKX13 | Housing: PX13 | Mass: 7.8 kg
UKPX15 Shaft: 65 mm (adapter) | Bearing: UKX15 | Housing: PX15 | Mass: 10.5 kg
UKPX16 Shaft: 70 mm (adapter) | Bearing: UKX16 | Housing: PX16 | Mass: 15.4 kg
UKPX17 Shaft: 75 mm (adapter) | Bearing: UKX17 | Housing: PX17 | Mass: 15.8 kg
UKPX18 Shaft: 80 mm (adapter) | Bearing: UKX18 | Housing: PX18 | Mass: 18.6 kg
UKPX20 Shaft: 90 mm (adapter) | Bearing: UKX20 | Housing: PX20 | Mass: 29.3 kg
Mounted Bearing UnitsJIB
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UKPX Pillow Block Units (Medium Series, Adapter Mount)

Brand JIB·Mounted Bearing Units

Available part numbers (14)

UKPX05, UKPX06, UKPX07, UKPX08, UKPX09, UKPX10, UKPX11, UKPX12, UKPX13, UKPX15 + 4 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UKPX05Shaft: 20 mm (adapter) | Bearing: UKX05 | Housing: PX05 | Mass: 1.5 kg
UKPX06Shaft: 25 mm (adapter) | Bearing: UKX06 | Housing: PX06 | Mass: 2.1 kg
UKPX07Shaft: 30 mm (adapter) | Bearing: UKX07 | Housing: PX07 | Mass: 2.7 kg
UKPX08Shaft: 35 mm (adapter) | Bearing: UKX08 | Housing: PX08 | Mass: 3.5 kg
UKPX09Shaft: 40 mm (adapter) | Bearing: UKX09 | Housing: PX09 | Mass: 3.7 kg
UKPX10Shaft: 45 mm (adapter) | Bearing: UKX10 | Housing: PX10 | Mass: 4.6 kg
UKPX11Shaft: 50 mm (adapter) | Bearing: UKX11 | Housing: PX11 | Mass: 6.2 kg
UKPX12Shaft: 55 mm (adapter) | Bearing: UKX12 | Housing: PX12 | Mass: 7.5 kg
UKPX13Shaft: 60 mm (adapter) | Bearing: UKX13 | Housing: PX13 | Mass: 7.8 kg
UKPX15Shaft: 65 mm (adapter) | Bearing: UKX15 | Housing: PX15 | Mass: 10.5 kg
UKPX16Shaft: 70 mm (adapter) | Bearing: UKX16 | Housing: PX16 | Mass: 15.4 kg
UKPX17Shaft: 75 mm (adapter) | Bearing: UKX17 | Housing: PX17 | Mass: 15.8 kg
UKPX18Shaft: 80 mm (adapter) | Bearing: UKX18 | Housing: PX18 | Mass: 18.6 kg
UKPX20Shaft: 90 mm (adapter) | Bearing: UKX20 | Housing: PX20 | Mass: 29.3 kg
