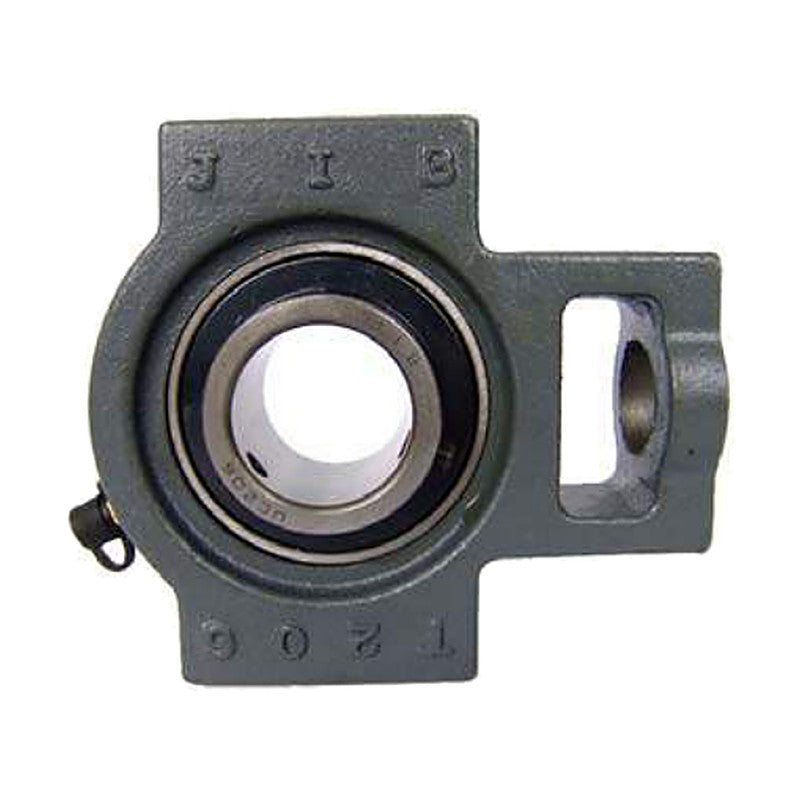

JIB UKT2 Take-Up Units (Light Series, Adapter Mount)

JIB UKT2 Take-Up Units (Light Series, Adapter Mount)

JIB UKT2 take-up units combine a cast iron take-up (T) housing with a UK tapered-bore insert bearing on adapter sleeve. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Cast iron take-up (T) housing with adapter-mounted insert
  • Fitted with UK tapered-bore insert bearing on adapter sleeve
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Adapter sleeve mounting locks the bearing on plain shafts without set screws

Specifications

Product Mounted ball bearing unit (take-up unit)
Unit series UKT2
Housing cast iron take-up (T) housing
Insert bearing UK tapered-bore insert bearing on adapter sleeve
Codes 12 sizes
Adapter sleeve H23 series (ordered separately or as set)
Source JIB Ball Bearing Units catalogue, p. 92
UKT205 Shaft: 20 mm (adapter) | Bearing: UK205 | Housing: T205 | Mass: 0.88 kg
UKT206 Shaft: 25 mm (adapter) | Bearing: UK206 | Housing: T206 | Mass: 1.3 kg
UKT207 Shaft: 30 mm (adapter) | Bearing: UK207 | Housing: T207 | Mass: 1.7 kg
UKT208 Shaft: 35 mm (adapter) | Bearing: UK208 | Housing: T208 | Mass: 2.5 kg
UKT209 Shaft: 40 mm (adapter) | Bearing: UK209 | Housing: T209 | Mass: 2.5 kg
UKT210 Shaft: 45 mm (adapter) | Bearing: UK210 | Housing: T210 | Mass: 2.7 kg
UKT211 Shaft: 50 mm (adapter) | Bearing: UK211 | Housing: T211 | Mass: 4.1 kg
UKT212 Shaft: 55 mm (adapter) | Bearing: UK212 | Housing: T212 | Mass: 4.8 kg
UKT213 Shaft: 60 mm (adapter) | Bearing: UK213 | Housing: T213 | Mass: 6.8 kg
UKT215 Shaft: 65 mm (adapter) | Bearing: UK215 | Housing: T215 | Mass: 7.4 kg
UKT216 Shaft: 70 mm (adapter) | Bearing: UK216 | Housing: T216 | Mass: 8.5 kg
UKT217 Shaft: 75 mm (adapter) | Bearing: UK217 | Housing: T217 | Mass: 11.2 kg
Mounted Bearing UnitsJIB
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UKT2 Take-Up Units (Light Series, Adapter Mount)

Brand JIB·Mounted Bearing Units

Available part numbers (12)

UKT205, UKT206, UKT207, UKT208, UKT209, UKT210, UKT211, UKT212, UKT213, UKT215 + 2 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UKT205Shaft: 20 mm (adapter) | Bearing: UK205 | Housing: T205 | Mass: 0.88 kg
UKT206Shaft: 25 mm (adapter) | Bearing: UK206 | Housing: T206 | Mass: 1.3 kg
UKT207Shaft: 30 mm (adapter) | Bearing: UK207 | Housing: T207 | Mass: 1.7 kg
UKT208Shaft: 35 mm (adapter) | Bearing: UK208 | Housing: T208 | Mass: 2.5 kg
UKT209Shaft: 40 mm (adapter) | Bearing: UK209 | Housing: T209 | Mass: 2.5 kg
UKT210Shaft: 45 mm (adapter) | Bearing: UK210 | Housing: T210 | Mass: 2.7 kg
UKT211Shaft: 50 mm (adapter) | Bearing: UK211 | Housing: T211 | Mass: 4.1 kg
UKT212Shaft: 55 mm (adapter) | Bearing: UK212 | Housing: T212 | Mass: 4.8 kg
UKT213Shaft: 60 mm (adapter) | Bearing: UK213 | Housing: T213 | Mass: 6.8 kg
UKT215Shaft: 65 mm (adapter) | Bearing: UK215 | Housing: T215 | Mass: 7.4 kg
UKT216Shaft: 70 mm (adapter) | Bearing: UK216 | Housing: T216 | Mass: 8.5 kg
UKT217Shaft: 75 mm (adapter) | Bearing: UK217 | Housing: T217 | Mass: 11.2 kg
