JIB UKT3 Take-Up Units (Medium-Heavy Series, Adapter Mount)

JIB UKT3 Take-Up Units (Medium-Heavy Series, Adapter Mount)

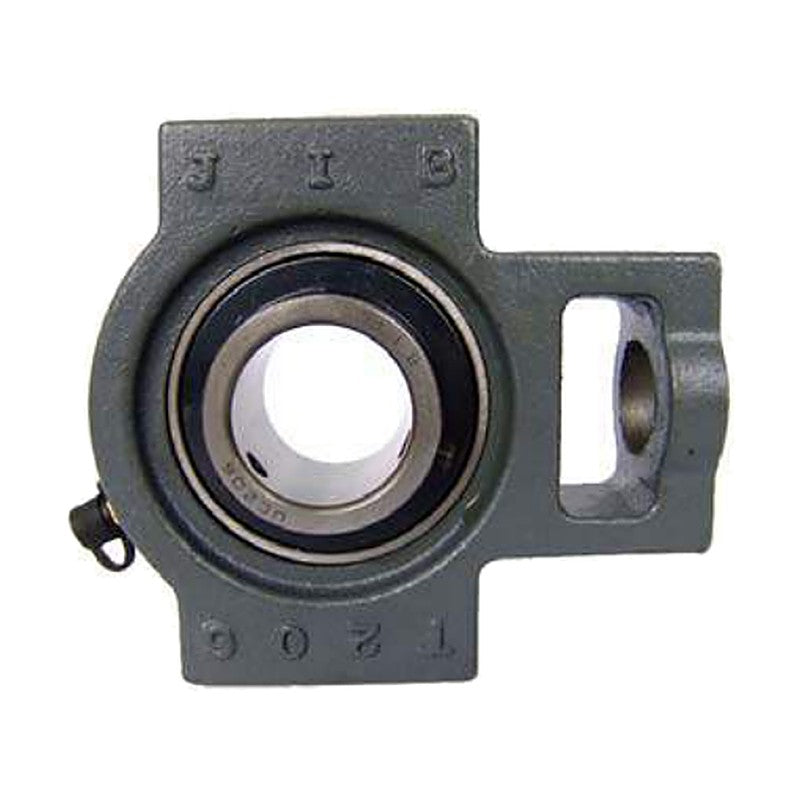

JIB UKT3 take-up units combine a cast iron take-up (T) housing with a UK tapered-bore insert bearing on adapter sleeve. Shaft sizes and housing designations follow the JIB dimension tables.

Key features

  • Cast iron take-up (T) housing with adapter-mounted insert
  • Fitted with UK tapered-bore insert bearing on adapter sleeve
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Adapter sleeve mounting locks the bearing on plain shafts without set screws

Specifications

Product Mounted ball bearing unit (take-up unit)
Unit series UKT3
Housing cast iron take-up (T) housing
Insert bearing UK tapered-bore insert bearing on adapter sleeve
Codes 19 sizes
Adapter sleeve H23 series (ordered separately or as set)
Source JIB Ball Bearing Units catalogue, p. 94
UKT305 Shaft: 20 mm (adapter) | Bearing: UK305 | Housing: T305 | Mass: 1.4 kg
UKT306 Shaft: 25 mm (adapter) | Bearing: UK306 | Housing: T306 | Mass: 1.8 kg
UKT307 Shaft: 30 mm (adapter) | Bearing: UK307 | Housing: T307 | Mass: 2.3 kg
UKT308 Shaft: 35 mm (adapter) | Bearing: UK308 | Housing: T308 | Mass: 3 kg
UKT309 Shaft: 40 mm (adapter) | Bearing: UK309 | Housing: T309 | Mass: 4.1 kg
UKT310 Shaft: 45 mm (adapter) | Bearing: UK310 | Housing: T310 | Mass: 4.9 kg
UKT311 Shaft: 50 mm (adapter) | Bearing: UK311 | Housing: T311 | Mass: 6.1 kg
UKT312 Shaft: 55 mm (adapter) | Bearing: UK312 | Housing: T312 | Mass: 7.6 kg
UKT313 Shaft: 60 mm (adapter) | Bearing: UK313 | Housing: T313 | Mass: 9.3 kg
UKT315 Shaft: 65 mm (adapter) | Bearing: UK315 | Housing: T315 | Mass: 13 kg
UKT316 Shaft: 70 mm (adapter) | Bearing: UK316 | Housing: T316 | Mass: 16.2 kg
UKT317 Shaft: 75 mm (adapter) | Bearing: UK317 | Housing: T317 | Mass: 19 kg
UKT318 Shaft: 80 mm (adapter) | Bearing: UK318 | Housing: T318 | Mass: 21.6 kg
UKT319 Shaft: 85 mm (adapter) | Bearing: UK319 | Housing: T319 | Mass: 24.9 kg
UKT320 Shaft: 90 mm (adapter) | Bearing: UK320 | Housing: T320 | Mass: 30.7 kg
UKT322 Shaft: 100 mm (adapter) | Bearing: UK322 | Housing: T322 | Mass: 39.7 kg
UKT324 Shaft: 110 mm (adapter) | Bearing: UK324 | Housing: T324 | Mass: 54.4 kg
UKT326 Shaft: 115 mm (adapter) | Bearing: UK326 | Housing: T326 | Mass: 69.3 kg
UKT328 Shaft: 125 mm (adapter) | Bearing: UK328 | Housing: T328 | Mass: 85.1 kg
Mounted Bearing UnitsJIB
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB UKT3 Take-Up Units (Medium-Heavy Series, Adapter Mount)

Brand JIB·Mounted Bearing Units

Available part numbers (19)

UKT305, UKT306, UKT307, UKT308, UKT309, UKT310, UKT311, UKT312, UKT313, UKT315 + 9 more — see full table ↓

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UKT305Shaft: 20 mm (adapter) | Bearing: UK305 | Housing: T305 | Mass: 1.4 kg
UKT306Shaft: 25 mm (adapter) | Bearing: UK306 | Housing: T306 | Mass: 1.8 kg
UKT307Shaft: 30 mm (adapter) | Bearing: UK307 | Housing: T307 | Mass: 2.3 kg
UKT308Shaft: 35 mm (adapter) | Bearing: UK308 | Housing: T308 | Mass: 3 kg
UKT309Shaft: 40 mm (adapter) | Bearing: UK309 | Housing: T309 | Mass: 4.1 kg
UKT310Shaft: 45 mm (adapter) | Bearing: UK310 | Housing: T310 | Mass: 4.9 kg
UKT311Shaft: 50 mm (adapter) | Bearing: UK311 | Housing: T311 | Mass: 6.1 kg
UKT312Shaft: 55 mm (adapter) | Bearing: UK312 | Housing: T312 | Mass: 7.6 kg
UKT313Shaft: 60 mm (adapter) | Bearing: UK313 | Housing: T313 | Mass: 9.3 kg
UKT315Shaft: 65 mm (adapter) | Bearing: UK315 | Housing: T315 | Mass: 13 kg
UKT316Shaft: 70 mm (adapter) | Bearing: UK316 | Housing: T316 | Mass: 16.2 kg
UKT317Shaft: 75 mm (adapter) | Bearing: UK317 | Housing: T317 | Mass: 19 kg
UKT318Shaft: 80 mm (adapter) | Bearing: UK318 | Housing: T318 | Mass: 21.6 kg
UKT319Shaft: 85 mm (adapter) | Bearing: UK319 | Housing: T319 | Mass: 24.9 kg
UKT320Shaft: 90 mm (adapter) | Bearing: UK320 | Housing: T320 | Mass: 30.7 kg
UKT322Shaft: 100 mm (adapter) | Bearing: UK322 | Housing: T322 | Mass: 39.7 kg
UKT324Shaft: 110 mm (adapter) | Bearing: UK324 | Housing: T324 | Mass: 54.4 kg
UKT326Shaft: 115 mm (adapter) | Bearing: UK326 | Housing: T326 | Mass: 69.3 kg
UKT328Shaft: 125 mm (adapter) | Bearing: UK328 | Housing: T328 | Mass: 85.1 kg
