JIB USA Miniature Insert Bearings

JIB USA Miniature Insert Bearings

JIB USA insert ball bearings (miniature insert with eccentric locking collar) for use in mounted bearing unit housings.

Key features

  • Miniature insert with eccentric locking collar
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series USA
Design miniature insert with eccentric locking collar
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source JIB Ball Bearing Units catalogue, p. 121

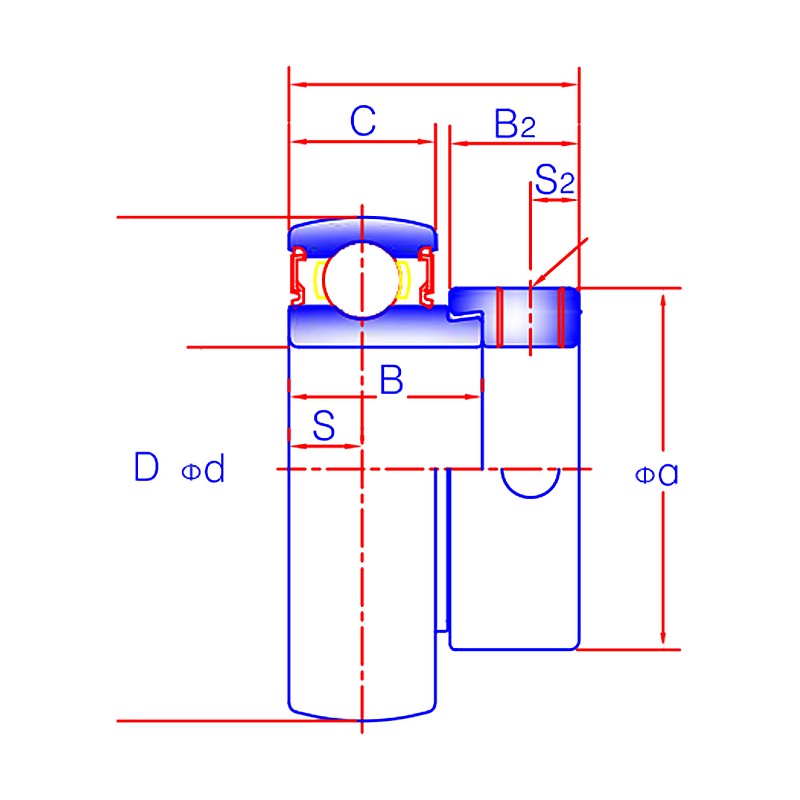

USA08 d: 8 mm | D: 22 mm | B: 15 mm | C: 260 kgf | C0: 136 kgf | Mass: 0.02 kg
USA000 d: 10 mm | D: 26 mm | B: 17.5 mm | C: 465 kgf | C0: 200 kgf | Mass: 0.029 kg
USA001 d: 12 mm | D: 28 mm | B: 17.5 mm | C: 520 kgf | C0: 245 kgf | Mass: 0.033 kg
USA002 d: 15 mm | D: 32 mm | B: 18.5 mm | C: 570 kgf | C0: 290 kgf | Mass: 0.043 kg
USA003 d: 17 mm | D: 35 mm | B: 20.5 mm | C: 610 kgf | C0: 335 kgf | Mass: 0.058 kg
USA004 d: 20 mm | D: 42 mm | B: 24.5 mm | C: 955 kgf | C0: 515 kgf | Mass: 0.096 kg
USA005 d: 25 mm | D: 47 mm | B: 25.5 mm | C: 1030 kgf | C0: 595 kgf | Mass: 0.128 kg
USA006 d: 30 mm | D: 55 mm | B: 26.5 mm | C: 1350 kgf | C0: 840 kgf | Mass: 0.177 kg
Insert BearingsJIB
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB USA Miniature Insert Bearings

Brand JIB·Insert Bearings

Available part numbers (8)

USA08, USA000, USA001, USA002, USA003, USA004, USA005, USA006

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
