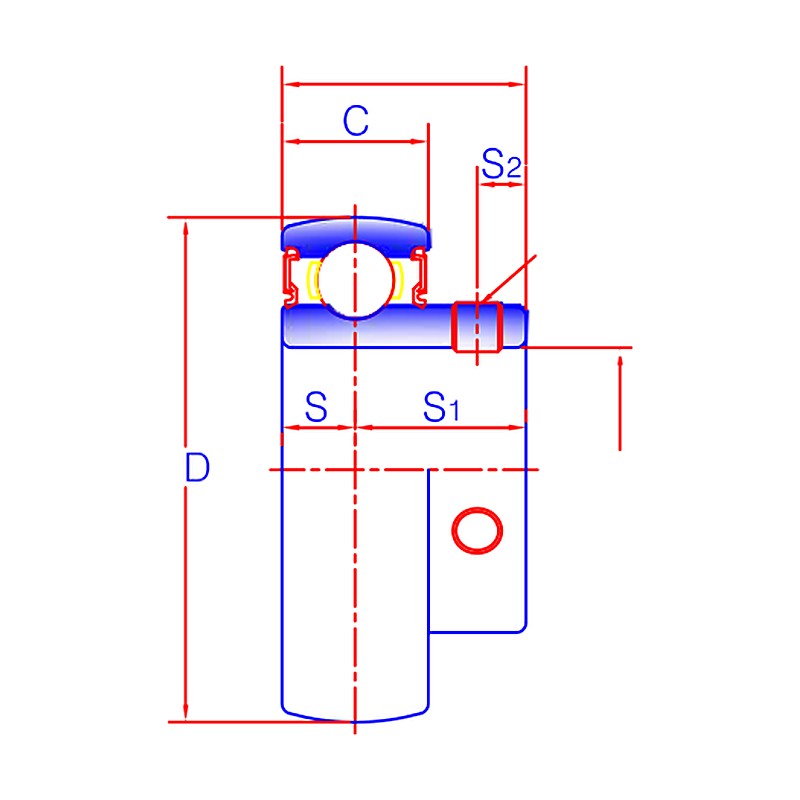

JIB USB Miniature Insert Bearings

JIB USB Miniature Insert Bearings

JIB USB insert ball bearings (miniature insert with set-screw locking) for use in mounted bearing unit housings.

Key features

  • Miniature insert with set-screw locking
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series USB
Design miniature insert with set-screw locking
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source JIB Ball Bearing Units catalogue, p. 122
USB08 d: 8 mm | D: 22 mm | B: 12.5 mm | C: 260 kgf | C0: 136 kgf | Mass: 0.015 kg
USB000 d: 10 mm | D: 26 mm | B: 15 mm | C: 465 kgf | C0: 200 kgf | Mass: 0.024 kg
USB001 d: 12 mm | D: 28 mm | B: 15 mm | C: 520 kgf | C0: 245 kgf | Mass: 0.028 kg
USB002 d: 15 mm | D: 32 mm | B: 16.5 mm | C: 570 kgf | C0: 290 kgf | Mass: 0.039 kg
USB003 d: 17 mm | D: 35 mm | B: 17.5 mm | C: 610 kgf | C0: 335 kgf | Mass: 0.05 kg
USB004 d: 20 mm | D: 42 mm | B: 21 mm | C: 955 kgf | C0: 515 kgf | Mass: 0.084 kg
USB005 d: 25 mm | D: 47 mm | B: 22 mm | C: 1030 kgf | C0: 595 kgf | Mass: 0.111 kg
USB006 d: 30 mm | D: 55 mm | B: 24.5 mm | C: 1350 kgf | C0: 840 kgf | Mass: 0.153 kg
Insert BearingsJIB
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB USB Miniature Insert Bearings

Brand JIB·Insert Bearings

Available part numbers (8)

USB08, USB000, USB001, USB002, USB003, USB004, USB005, USB006

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
USB08d: 8 mm | D: 22 mm | B: 12.5 mm | C: 260 kgf | C0: 136 kgf | Mass: 0.015 kg
USB000d: 10 mm | D: 26 mm | B: 15 mm | C: 465 kgf | C0: 200 kgf | Mass: 0.024 kg
USB001d: 12 mm | D: 28 mm | B: 15 mm | C: 520 kgf | C0: 245 kgf | Mass: 0.028 kg
USB002d: 15 mm | D: 32 mm | B: 16.5 mm | C: 570 kgf | C0: 290 kgf | Mass: 0.039 kg
USB003d: 17 mm | D: 35 mm | B: 17.5 mm | C: 610 kgf | C0: 335 kgf | Mass: 0.05 kg
USB004d: 20 mm | D: 42 mm | B: 21 mm | C: 955 kgf | C0: 515 kgf | Mass: 0.084 kg
USB005d: 25 mm | D: 47 mm | B: 22 mm | C: 1030 kgf | C0: 595 kgf | Mass: 0.111 kg
USB006d: 30 mm | D: 55 mm | B: 24.5 mm | C: 1350 kgf | C0: 840 kgf | Mass: 0.153 kg
