JIB USC Miniature Insert Bearings

JIB USC Miniature Insert Bearings

JIB USC insert ball bearings (miniature plain-bore insert) for use in mounted bearing unit housings.

Key features

  • Miniature plain-bore insert
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series USC
Design miniature plain-bore insert
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source JIB Ball Bearing Units catalogue, p. 123

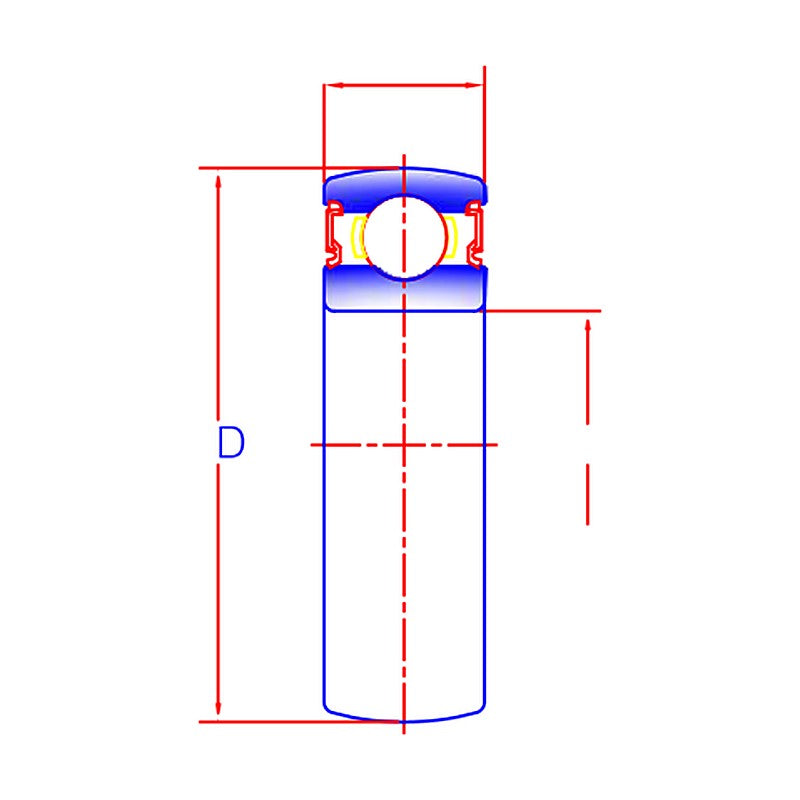

USC08 d: 8 mm | D: 22 mm | B: 7 mm | C: 260 kgf | C0: 136 kgf | Mass: 0.012 kg
USC000 d: 10 mm | D: 26 mm | B: 8 mm | C: 465 kgf | C0: 200 kgf | Mass: 0.019 kg
USC001 d: 12 mm | D: 28 mm | B: 8 mm | C: 520 kgf | C0: 245 kgf | Mass: 0.021 kg
USC002 d: 15 mm | D: 32 mm | B: 9 mm | C: 570 kgf | C0: 290 kgf | Mass: 0.03 kg
USC003 d: 17 mm | D: 35 mm | B: 10 mm | C: 610 kgf | C0: 335 kgf | Mass: 0.039 kg
USC004 d: 20 mm | D: 42 mm | B: 12 mm | C: 955 kgf | C0: 515 kgf | Mass: 0.066 kg
USC005 d: 25 mm | D: 47 mm | B: 12 mm | C: 1030 kgf | C0: 595 kgf | Mass: 0.078 kg
USC006 d: 30 mm | D: 55 mm | B: 13 mm | C: 1350 kgf | C0: 840 kgf | Mass: 0.114 kg
Insert BearingsJIB
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JIB USC Miniature Insert Bearings

Brand JIB·Insert Bearings

Available part numbers (8)

USC08, USC000, USC001, USC002, USC003, USC004, USC005, USC006

How to order

Send the JIB part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
USC08d: 8 mm | D: 22 mm | B: 7 mm | C: 260 kgf | C0: 136 kgf | Mass: 0.012 kg
USC000d: 10 mm | D: 26 mm | B: 8 mm | C: 465 kgf | C0: 200 kgf | Mass: 0.019 kg
USC001d: 12 mm | D: 28 mm | B: 8 mm | C: 520 kgf | C0: 245 kgf | Mass: 0.021 kg
USC002d: 15 mm | D: 32 mm | B: 9 mm | C: 570 kgf | C0: 290 kgf | Mass: 0.03 kg
USC003d: 17 mm | D: 35 mm | B: 10 mm | C: 610 kgf | C0: 335 kgf | Mass: 0.039 kg
USC004d: 20 mm | D: 42 mm | B: 12 mm | C: 955 kgf | C0: 515 kgf | Mass: 0.066 kg
USC005d: 25 mm | D: 47 mm | B: 12 mm | C: 1030 kgf | C0: 595 kgf | Mass: 0.078 kg
USC006d: 30 mm | D: 55 mm | B: 13 mm | C: 1350 kgf | C0: 840 kgf | Mass: 0.114 kg
