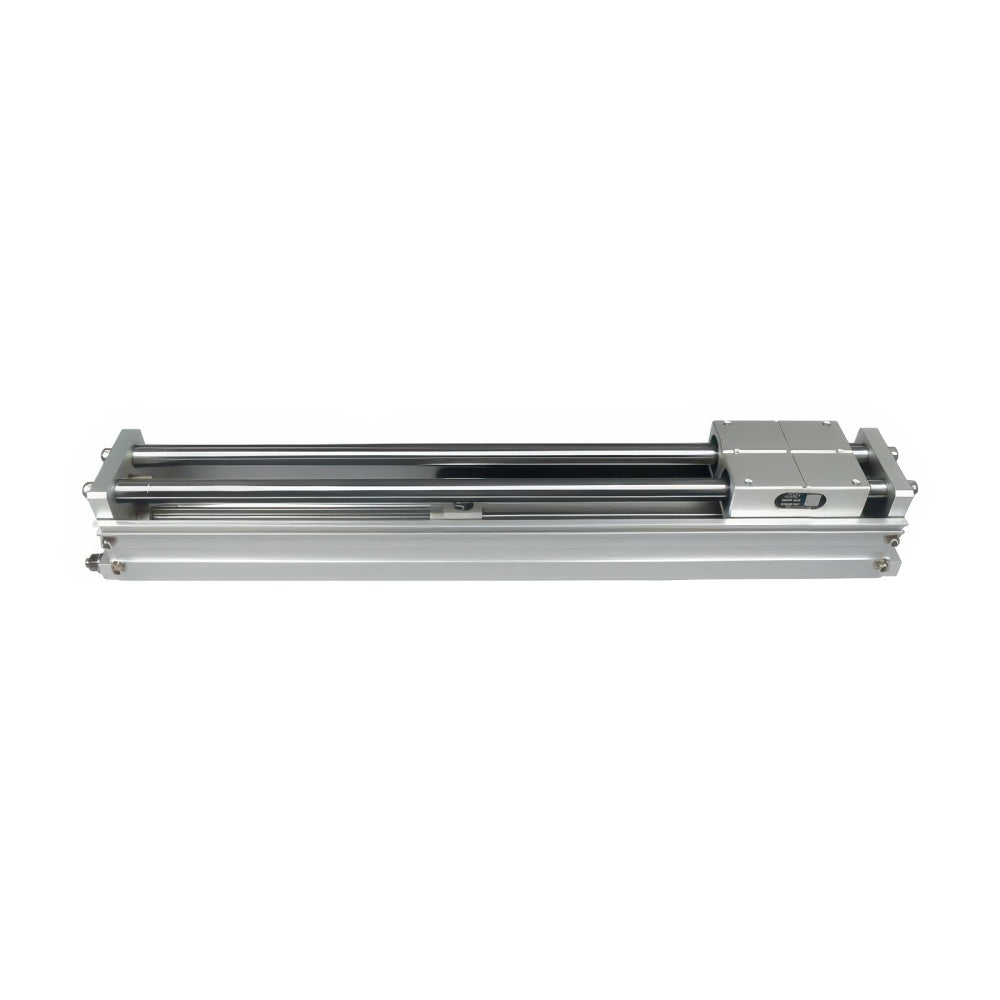

JRT RH Double-Speed Slide Cylinder (Standard)

JRT RH Double-Speed Slide Cylinder (Standard)

Chain-driven double-speed slide cylinder that doubles the stroke and speed of a conventional slide cylinder, with built-in guides for load support.

Key features

  • Chain mechanism doubles stroke distance and speed compared with a standard slide cylinder
  • No external guide needed; same space efficiency as a rodless cylinder
  • Long strokes with adjustable stroke for labor-saving automation
  • Proximity and limit switches can be mounted, unaffected by magnetic fields
  • Also available as cover type (RHC) and wide type (RHW)
  • Hardened, polished guide rods and L-type support frame

Specifications

Operating pressure 3 to 7 bar
Ambient temperature -5 to 60 °C
Lubrication Not required
Media Air
Action Double acting
Repetition accuracy ±0.1 mm
Cushion Air cushion (adjustable needle); stopper or shock absorber
Sensor Magnetic sensor mountable (optional)
Thrust note P = air pressure (bar)
RH20 Bore size: 20 mm | Stroke range: 50 to 200 mm | Thrust (push/pull): 11.58(P-1.8) N | Speed range: 300 to 1,000 mm/s | Weight: 1.55+0.003xSt kg (St = stroke in mm) | Port size: PF(G) 1/8 | Air consumption per cycle: 0.2 x St cm³
RH30 Bore size: 30 mm | Stroke range: 200 to 600 mm | Thrust (push/pull): 24.53(P-1.5) N | Speed range: 300 to 1,000 mm/s | Weight: 2.75+0.007xSt kg (St = stroke in mm) | Port size: PF(G) 1/8 | Air consumption per cycle: 0.5 x St cm³
RH40 Bore size: 40 mm | Stroke range: 200 to 1000 mm | Thrust (push/pull): 51.01(P-1.2) N | Speed range: 250 to 1,000 mm/s | Weight: 4.54+0.01xSt kg (St = stroke in mm) | Port size: PF(G) 1/8 | Air consumption per cycle: 1.1 x St cm³
RH50 Bore size: 50 mm | Stroke range: 200 to 1000 mm | Thrust (push/pull): 80.44(P-0.9) N | Speed range: 250 to 800 mm/s | Weight: 8.15+0.014xSt kg (St = stroke in mm) | Port size: PF(G) 1/4 | Air consumption per cycle: 1.6 x St cm³
RH63 Bore size: 63 mm | Stroke range: 200 to 1200 mm | Thrust (push/pull): 127.53(P-0.7) N | Speed range: 150 to 500 mm/s | Weight: 11.2+0.019xSt kg (St = stroke in mm) | Port size: PF(G) 1/4 | Air consumption per cycle: 2.6 x St cm³
RH80 Bore size: 80 mm | Stroke range: 200 to 1500 mm | Thrust (push/pull): 210.92(P-0.7) N | Speed range: 150 to 500 mm/s | Weight: 23.3+0.027xSt kg (St = stroke in mm) | Port size: PF(G) 1/2 | Air consumption per cycle: 4.3 x St cm³
