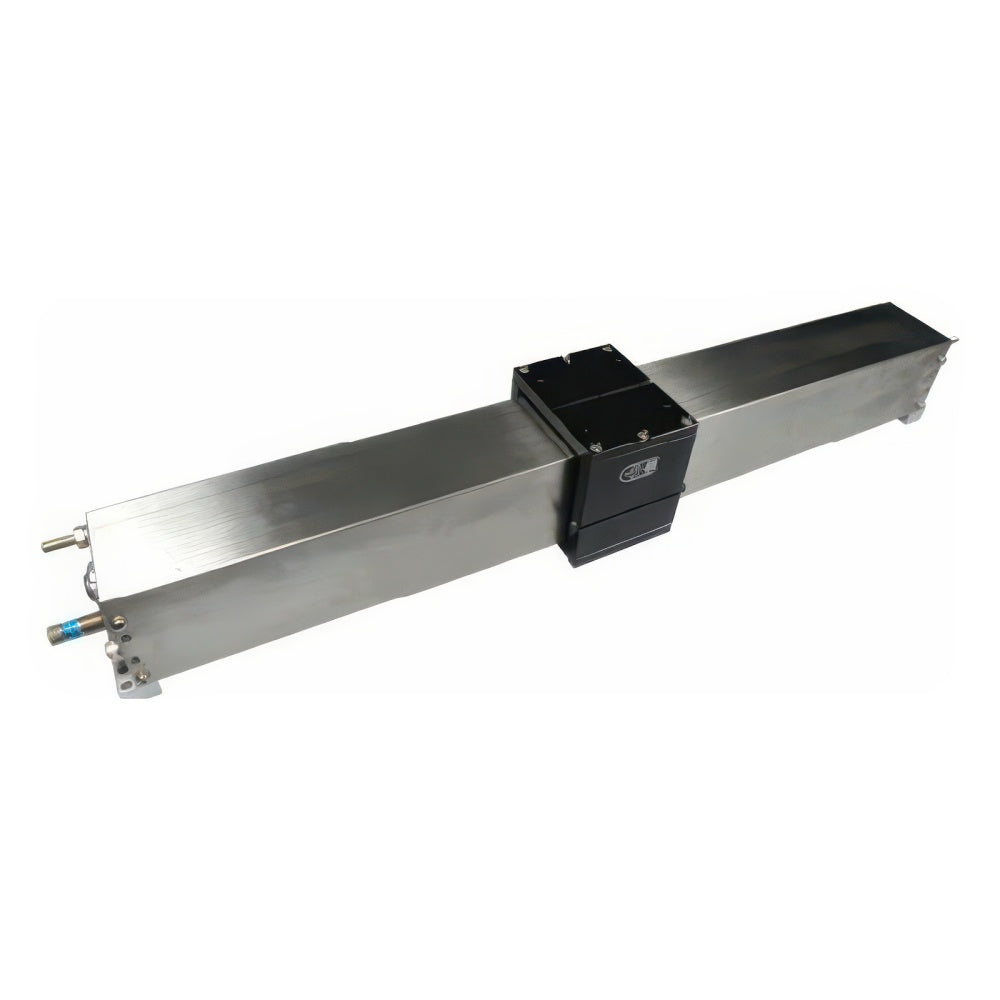

JRT RHC Double-Speed Slide Cylinder (Protective Cover Type)

JRT RHC Double-Speed Slide Cylinder (Protective Cover Type)

Chain-driven double-speed slide cylinder with a protective cover that keeps dust and contamination out for longer life in harsh environments.

Key features

  • Chain mechanism doubles stroke distance and speed compared with a standard slide cylinder
  • Protective cover minimizes dust ingress for longer life in welding lines and poor environments
  • Long strokes with adjustable stroke for labor-saving automation
  • Proximity and limit switches can be mounted, unaffected by magnetic fields
  • Hardened, polished guide rods and L-type support frame

Specifications

Operating pressure 3 to 7 bar
Ambient temperature -5 to 60 °C
Lubrication Not required
Media Air
Action Double acting
Repetition accuracy ±0.1 mm
Cushion Air cushion (adjustable needle); stopper or shock absorber
Sensor Magnetic sensor mountable (optional)
Thrust note P = air pressure (bar)
RHC30 Bore size: 30 mm | Stroke range: 200 to 600 mm | Thrust (push/pull): 24.53(P-1.5) N | Speed range: 300 to 1,000 mm/s | Weight: 7.87+0.004xSt kg (St = stroke in mm) | Port size: PF(G) 1/8 | Air consumption per cycle: 0.5 x St cm³
RHC40 Bore size: 40 mm | Stroke range: 200 to 1000 mm | Thrust (push/pull): 51.01(P-1.2) N | Speed range: 250 to 1,000 mm/s | Weight: 7.52+0.012xSt kg (St = stroke in mm) | Port size: PF(G) 1/8 | Air consumption per cycle: 1.1 x St cm³
RHC50 Bore size: 50 mm | Stroke range: 200 to 1000 mm | Thrust (push/pull): 80.44(P-0.9) N | Speed range: 250 to 800 mm/s | Weight: 12.9+0.017xSt kg (St = stroke in mm) | Port size: PF(G) 1/4 | Air consumption per cycle: 1.6 x St cm³
RHC63 Bore size: 63 mm | Stroke range: 200 to 1200 mm | Thrust (push/pull): 127.53(P-0.7) N | Speed range: 150 to 500 mm/s | Weight: 15.7+0.03xSt kg (St = stroke in mm) | Port size: PF(G) 1/4 | Air consumption per cycle: 2.6 x St cm³
RHC80 Bore size: 80 mm | Stroke range: 200 to 1500 mm | Thrust (push/pull): 210.92(P-0.7) N | Speed range: 150 to 500 mm/s | Weight: 21.0+0.04xSt kg (St = stroke in mm) | Port size: PF(G) 1/2 | Air consumption per cycle: 4.3 x St cm³
Slide CylindersJRT
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JRT RHC Double-Speed Slide Cylinder (Protective Cover Type)

Brand JRT·Slide Cylinders

Available part numbers (5)

RHC30, RHC40, RHC50, RHC63, RHC80

How to order

Send the JRT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RHC30Bore size: 30 mm | Stroke range: 200 to 600 mm | Thrust (push/pull): 24.53(P-1.5) N | Speed range: 300 to 1,000 mm/s | Weight: 7.87+0.004xSt kg (St = stroke in mm) | Port size: PF(G) 1/8 | Air consumption per cycle: 0.5 x St cm³
RHC40Bore size: 40 mm | Stroke range: 200 to 1000 mm | Thrust (push/pull): 51.01(P-1.2) N | Speed range: 250 to 1,000 mm/s | Weight: 7.52+0.012xSt kg (St = stroke in mm) | Port size: PF(G) 1/8 | Air consumption per cycle: 1.1 x St cm³
RHC50Bore size: 50 mm | Stroke range: 200 to 1000 mm | Thrust (push/pull): 80.44(P-0.9) N | Speed range: 250 to 800 mm/s | Weight: 12.9+0.017xSt kg (St = stroke in mm) | Port size: PF(G) 1/4 | Air consumption per cycle: 1.6 x St cm³
RHC63Bore size: 63 mm | Stroke range: 200 to 1200 mm | Thrust (push/pull): 127.53(P-0.7) N | Speed range: 150 to 500 mm/s | Weight: 15.7+0.03xSt kg (St = stroke in mm) | Port size: PF(G) 1/4 | Air consumption per cycle: 2.6 x St cm³
RHC80Bore size: 80 mm | Stroke range: 200 to 1500 mm | Thrust (push/pull): 210.92(P-0.7) N | Speed range: 150 to 500 mm/s | Weight: 21.0+0.04xSt kg (St = stroke in mm) | Port size: PF(G) 1/2 | Air consumption per cycle: 4.3 x St cm³
