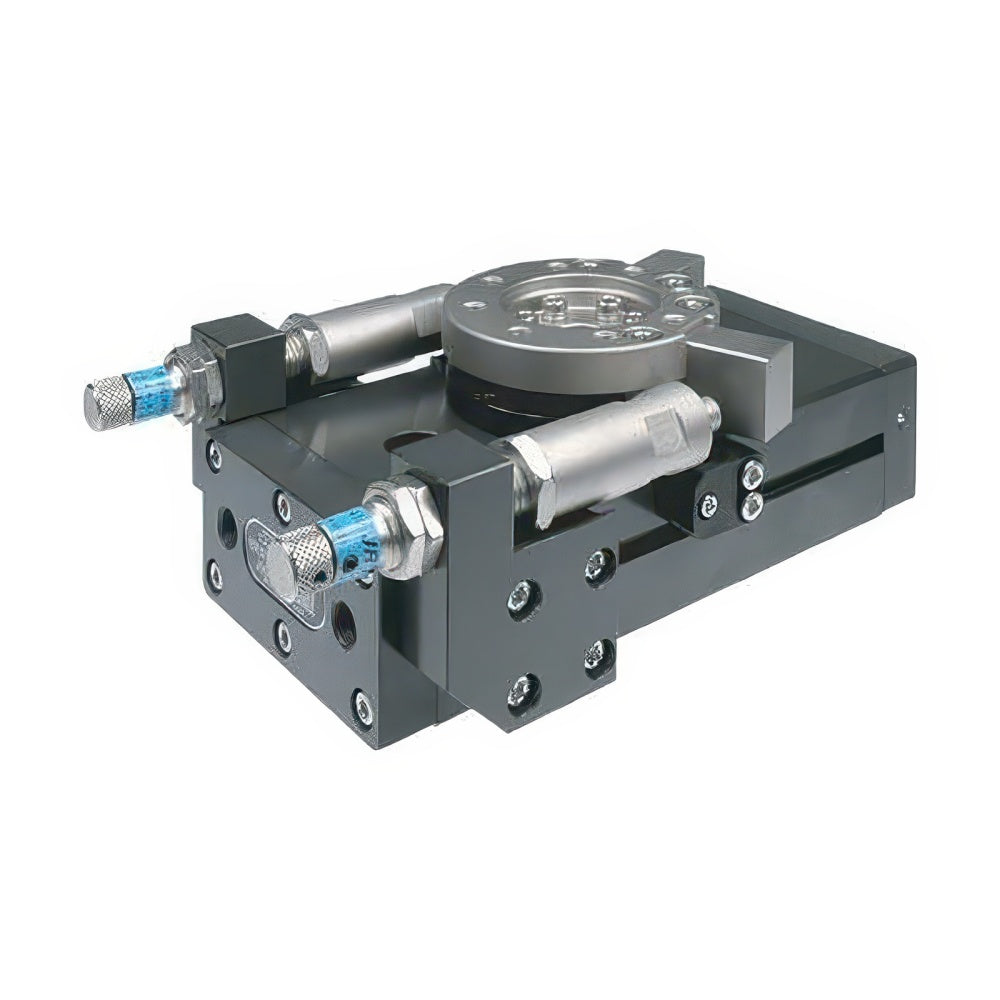

JRT SDRJ Double-Power Rack & Pinion Rotary Table

JRT SDRJ Double-Power Rack & Pinion Rotary Table

Double-power rotary table in which two cylinders generate thrust simultaneously, with a hollow shaft and shock absorbers fitted as standard.

Key features

  • Double-power design with two cylinders generating thrust at the same time
  • Hollow shaft for easy air piping and mounting
  • Real stopping system with stopping force equal to turning force
  • Keyed brackets and alignment pin bolts minimize play
  • Shock absorbers fitted as standard on every model (rubber stopper selectable)
  • High-rigidity rotation table

Specifications

Operating pressure 3 to 7 bar
Ambient temperature -5 to 60 °C
Lubrication Not required
Media Air
Action Double acting
Rotation angle 90° or 180° (specify at order)
Repetition accuracy ±0.1°
Cushion Shock absorber (stopper optional)
Torque note P = air pressure (bar)
SDRJ16 Bore size: 16 mm | Effective torque: 0.235P N·m | Radial load: 8 kg | Axial load (compression): 8 kg | Axial load (tension): 7 kg | Weight (90°): 0.86 kg | Weight (180°): 0.82 kg | Rotation time (90°): 0.2 to 1.0 s | Rotation time (180°): 0.3 to 1.4 s | Port size: M5 | Air consumption (90°/180°): 8.8 / 17.7 cm³
SDRJ20 Bore size: 20 mm | Effective torque: 0.49P N·m | Radial load: 12 kg | Axial load (compression): 10 kg | Axial load (tension): 9 kg | Weight (90°): 2.15 kg | Weight (180°): 2.11 kg | Rotation time (90°): 0.2 to 1.0 s | Rotation time (180°): 0.3 to 1.8 s | Port size: PF(G) 1/8 | Air consumption (90°/180°): 19.7 / 39.5 cm³
SDRJ25 Bore size: 25 mm | Effective torque: 1.039P N·m | Radial load: 15 kg | Axial load (compression): 14 kg | Axial load (tension): 10 kg | Weight (90°): 2.74 kg | Weight (180°): 2.66 kg | Rotation time (90°): 0.2 to 1.0 s | Rotation time (180°): 0.3 to 1.8 s | Port size: PF(G) 1/8 | Air consumption (90°/180°): 41.6 / 83.2 cm³
SDRJ30 Bore size: 30 mm | Effective torque: 1.49P N·m | Radial load: 16 kg | Axial load (compression): 16 kg | Axial load (tension): 12 kg | Weight (90°): 3.88 kg | Weight (180°): 3.76 kg | Rotation time (90°): 0.3 to 1.0 s | Rotation time (180°): 0.4 to 1.2 s | Port size: PF(G) 1/8 | Air consumption (90°/180°): 66.6 / 119.9 cm³
SDRJ40 Bore size: 40 mm | Effective torque: 3.165P N·m | Radial load: 26 kg | Axial load (compression): 25 kg | Axial load (tension): 20 kg | Weight (90°): 6.82 kg | Weight (180°): 6.62 kg | Rotation time (90°): 0.4 to 1.2 s | Rotation time (180°): 0.5 to 1.4 s | Port size: PF(G) 1/8 | Air consumption (90°/180°): 126.3 / 252.5 cm³
SDRJ50 Bore size: 50 mm | Effective torque: 6.448P N·m | Radial load: 32 kg | Axial load (compression): 30 kg | Axial load (tension): 26 kg | Weight (90°): 11.66 kg | Weight (180°): 11.60 kg | Rotation time (90°): 0.6 to 3.2 s | Rotation time (180°): 0.7 to 3.5 s | Port size: PF(G) 1/8 | Air consumption (90°/180°): 251.3 / 502.7 cm³
SDRJ63 Bore size: 63 mm | Effective torque: 14.7P N·m | Radial load: 42 kg | Axial load (compression): 40 kg | Axial load (tension): 32 kg | Weight (90°): 22.90 kg | Weight (180°): 22.50 kg | Rotation time (90°): 0.7 to 3.5 s | Rotation time (180°): 0.8 to 3.7 s | Port size: PF(G) 1/4 | Air consumption (90°/180°): 589.8 / 1179.6 cm³
Rotary ActuatorsJRT
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
