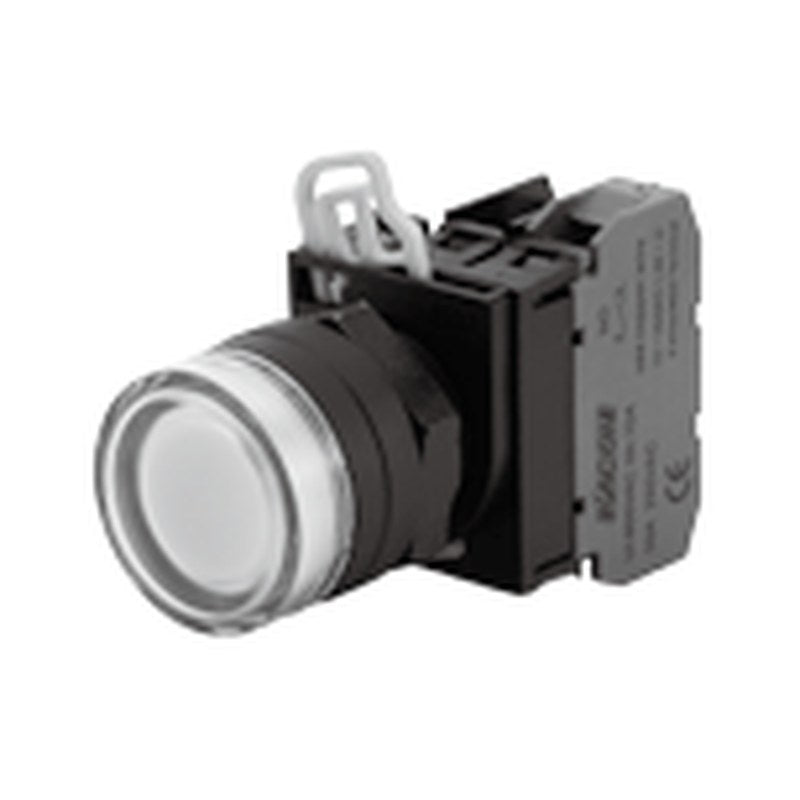

KACON J2 Series Ø22/Ø25 Push Button Switches

KACON J2 Series Ø22/Ø25 Push Button Switches

KACON J2 flush push button switches in momentary and alternate action, non-illuminated or LED-illuminated, for Ø22/Ø25 panel holes.

Key features

  • Momentary and alternate (push-on/push-off) action
  • Non-illuminated or LED-illuminated (6VDC to 220VAC)
  • Supplied with 1NO (J2-10) contact block; stack up to 3 blocks
  • Six colours; IP65 front
  • Mechanical life 2,000,000 operations

Specifications

Standard contact 1NO (J2-10)
Lamp voltage (illuminated) D6 / D12 / D4 / A1 / A2 (specify)
Panel cut-out Ø22 / Ø25 (ring compatible)
Contact rating 10A 240VAC AC-12 / 3A 240VAC AC-15
Rated insulation voltage 600V
Terminal M3.5 screw, 14-16AWG
Ambient temperature -20 to +55°C
Source KACON J2 Catalog catalogue, p. 1-3
J2-2110R Action: Momentary | Illumination: Non-illuminated | Colour: Red | Max. contact blocks: 3
J2-2110G Action: Momentary | Illumination: Non-illuminated | Colour: Green | Max. contact blocks: 3
J2-2110B Action: Momentary | Illumination: Non-illuminated | Colour: Blue | Max. contact blocks: 3
J2-2110Y Action: Momentary | Illumination: Non-illuminated | Colour: Yellow | Max. contact blocks: 3
J2-2110W Action: Momentary | Illumination: Non-illuminated | Colour: White | Max. contact blocks: 3
J2-2110K Action: Momentary | Illumination: Non-illuminated | Colour: Black | Max. contact blocks: 3
J2-3110R Action: Alternate | Illumination: Non-illuminated | Colour: Red | Max. contact blocks: 3
J2-3110G Action: Alternate | Illumination: Non-illuminated | Colour: Green | Max. contact blocks: 3
J2-3110B Action: Alternate | Illumination: Non-illuminated | Colour: Blue | Max. contact blocks: 3
J2-3110Y Action: Alternate | Illumination: Non-illuminated | Colour: Yellow | Max. contact blocks: 3
J2-3110W Action: Alternate | Illumination: Non-illuminated | Colour: White | Max. contact blocks: 3
J2-3110K Action: Alternate | Illumination: Non-illuminated | Colour: Black | Max. contact blocks: 3
J2-2710QR Action: Momentary | Illumination: Illuminated LED | Colour: Red | Max. contact blocks: 2
J2-2710QG Action: Momentary | Illumination: Illuminated LED | Colour: Green | Max. contact blocks: 2
J2-2710QB Action: Momentary | Illumination: Illuminated LED | Colour: Blue | Max. contact blocks: 2
J2-2710QY Action: Momentary | Illumination: Illuminated LED | Colour: Yellow | Max. contact blocks: 2
J2-2710QW Action: Momentary | Illumination: Illuminated LED | Colour: White | Max. contact blocks: 2
J2-2710QK Action: Momentary | Illumination: Illuminated LED | Colour: Black | Max. contact blocks: 2
J2-3710QR Action: Alternate | Illumination: Illuminated LED | Colour: Red | Max. contact blocks: 2
J2-3710QG Action: Alternate | Illumination: Illuminated LED | Colour: Green | Max. contact blocks: 2
J2-3710QB Action: Alternate | Illumination: Illuminated LED | Colour: Blue | Max. contact blocks: 2
J2-3710QY Action: Alternate | Illumination: Illuminated LED | Colour: Yellow | Max. contact blocks: 2
J2-3710QW Action: Alternate | Illumination: Illuminated LED | Colour: White | Max. contact blocks: 2
J2-3710QK Action: Alternate | Illumination: Illuminated LED | Colour: Black | Max. contact blocks: 2
Push Button SwitchesKACON
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON J2 Series Ø22/Ø25 Push Button Switches

Brand KACON·Push Button Switches

Available part numbers (24)

J2-2110R, J2-2110G, J2-2110B, J2-2110Y, J2-2110W, J2-2110K, J2-3110R, J2-3110G, J2-3110B, J2-3110Y + 14 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
J2-2110RAction: Momentary | Illumination: Non-illuminated | Colour: Red | Max. contact blocks: 3
J2-2110GAction: Momentary | Illumination: Non-illuminated | Colour: Green | Max. contact blocks: 3
J2-2110BAction: Momentary | Illumination: Non-illuminated | Colour: Blue | Max. contact blocks: 3
J2-2110YAction: Momentary | Illumination: Non-illuminated | Colour: Yellow | Max. contact blocks: 3
J2-2110WAction: Momentary | Illumination: Non-illuminated | Colour: White | Max. contact blocks: 3
J2-2110KAction: Momentary | Illumination: Non-illuminated | Colour: Black | Max. contact blocks: 3
J2-3110RAction: Alternate | Illumination: Non-illuminated | Colour: Red | Max. contact blocks: 3
J2-3110GAction: Alternate | Illumination: Non-illuminated | Colour: Green | Max. contact blocks: 3
J2-3110BAction: Alternate | Illumination: Non-illuminated | Colour: Blue | Max. contact blocks: 3
J2-3110YAction: Alternate | Illumination: Non-illuminated | Colour: Yellow | Max. contact blocks: 3
J2-3110WAction: Alternate | Illumination: Non-illuminated | Colour: White | Max. contact blocks: 3
J2-3110KAction: Alternate | Illumination: Non-illuminated | Colour: Black | Max. contact blocks: 3
J2-2710QRAction: Momentary | Illumination: Illuminated LED | Colour: Red | Max. contact blocks: 2
J2-2710QGAction: Momentary | Illumination: Illuminated LED | Colour: Green | Max. contact blocks: 2
J2-2710QBAction: Momentary | Illumination: Illuminated LED | Colour: Blue | Max. contact blocks: 2
J2-2710QYAction: Momentary | Illumination: Illuminated LED | Colour: Yellow | Max. contact blocks: 2
J2-2710QWAction: Momentary | Illumination: Illuminated LED | Colour: White | Max. contact blocks: 2
J2-2710QKAction: Momentary | Illumination: Illuminated LED | Colour: Black | Max. contact blocks: 2
J2-3710QRAction: Alternate | Illumination: Illuminated LED | Colour: Red | Max. contact blocks: 2
J2-3710QGAction: Alternate | Illumination: Illuminated LED | Colour: Green | Max. contact blocks: 2
J2-3710QBAction: Alternate | Illumination: Illuminated LED | Colour: Blue | Max. contact blocks: 2
J2-3710QYAction: Alternate | Illumination: Illuminated LED | Colour: Yellow | Max. contact blocks: 2
J2-3710QWAction: Alternate | Illumination: Illuminated LED | Colour: White | Max. contact blocks: 2
J2-3710QKAction: Alternate | Illumination: Illuminated LED | Colour: Black | Max. contact blocks: 2

Need a different model, or a part not listed here? Send us your parts list →
