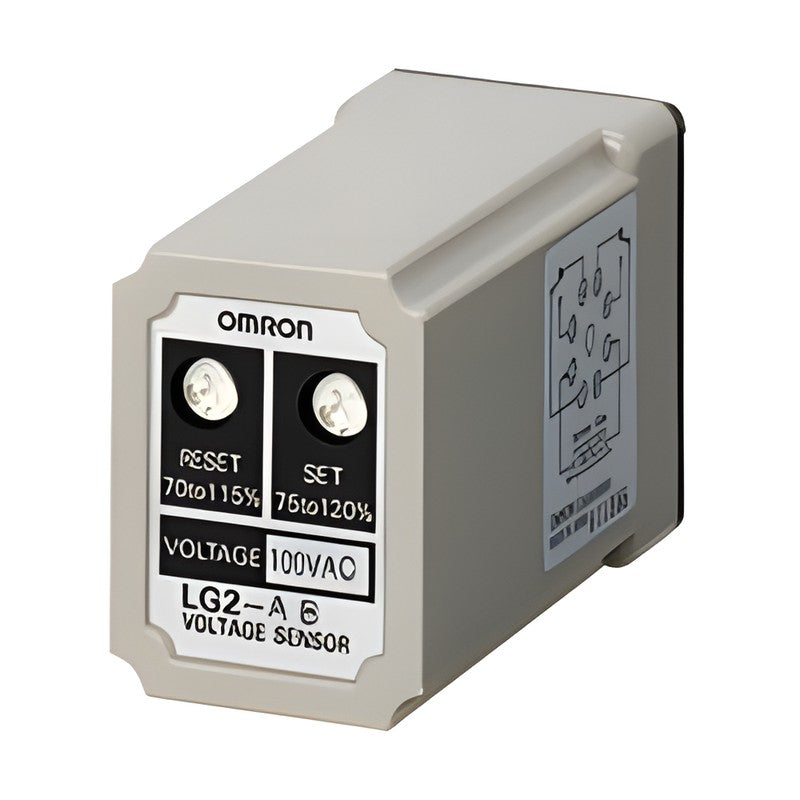

Omron LG2 Plug-in Voltage Sensor (AC/DC Detection, DPDT)

Omron LG2 Plug-in Voltage Sensor (AC/DC Detection, DPDT)

The LG2 is a compact, economical plug-in voltage sensing relay with DPDT output contacts.

Key features

  • DPDT output for control, alarm and indication
  • Output relay driven directly by the detection signal
  • Wide voltage setting range with fine adjustment
  • AC (100/110/200 V) and DC (12/24/48/100 V) models
  • Mounts on PF083A or PL08 sockets

Specifications

Output DPDT, 5 A rated carry current
AC setting range Operate 75%-120%, release 70%-115%
Power consumption 5 VA max. (AC models)
Mounting Plug-in socket
Sockets PF083A / PL08
Max. applied voltage 120% of rated value
Source Omron CSM_LG2_DS_E_4_3 (English ed.), p. 1-2
LG2-AB (100 VAC) Detected voltage: AC | Rated voltage: 100 VAC | Output: DPDT
LG2-AB (200 VAC) Detected voltage: AC | Rated voltage: 200 VAC | Output: DPDT
LG2-AB (110 VAC) Detected voltage: AC | Rated voltage: 110 VAC | Output: DPDT
LG2-DB (12 VDC) Detected voltage: DC | Rated voltage: 12 VDC | Output: DPDT
LG2-DB (24 VDC) Detected voltage: DC | Rated voltage: 24 VDC | Output: DPDT
LG2-DB (48 VDC) Detected voltage: DC | Rated voltage: 48 VDC | Output: DPDT
LG2-DB (100 VDC) Detected voltage: DC | Rated voltage: 100 VDC | Output: DPDT
Monitoring RelaysOmron
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron LG2 Plug-in Voltage Sensor (AC/DC Detection, DPDT)

Brand Omron·Monitoring Relays

Available part numbers (7)

LG2-AB (100 VAC), LG2-AB (200 VAC), LG2-AB (110 VAC), LG2-DB (12 VDC), LG2-DB (24 VDC), LG2-DB (48 VDC), LG2-DB (100 VDC)

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LG2-AB (100 VAC)Detected voltage: AC | Rated voltage: 100 VAC | Output: DPDT
LG2-AB (200 VAC)Detected voltage: AC | Rated voltage: 200 VAC | Output: DPDT
LG2-AB (110 VAC)Detected voltage: AC | Rated voltage: 110 VAC | Output: DPDT
LG2-DB (12 VDC)Detected voltage: DC | Rated voltage: 12 VDC | Output: DPDT
LG2-DB (24 VDC)Detected voltage: DC | Rated voltage: 24 VDC | Output: DPDT
LG2-DB (48 VDC)Detected voltage: DC | Rated voltage: 48 VDC | Output: DPDT
LG2-DB (100 VDC)Detected voltage: DC | Rated voltage: 100 VDC | Output: DPDT
