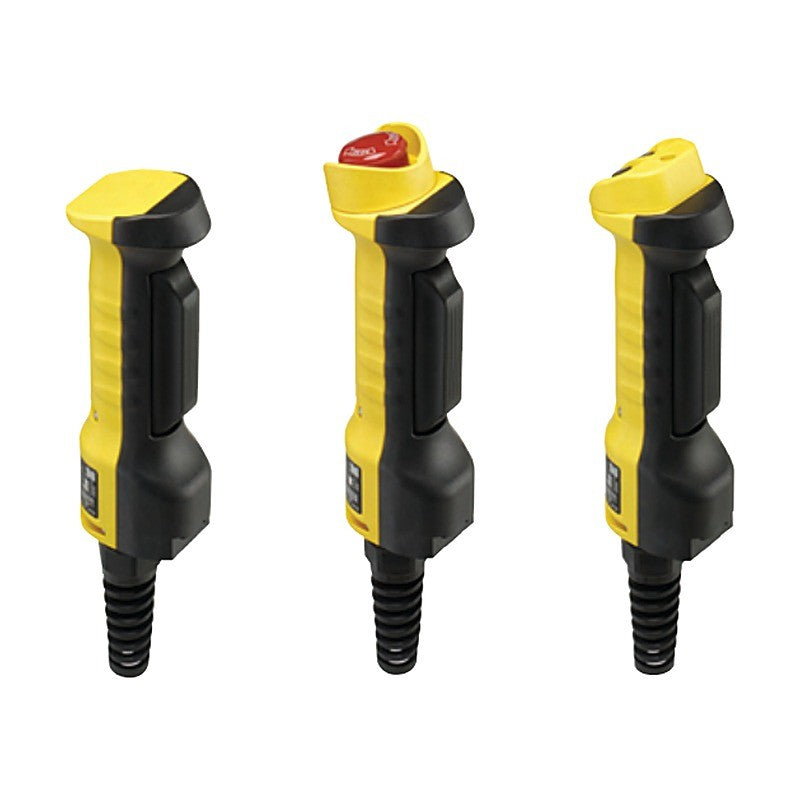

Omron A4EG Enabling Grip Switch

Omron A4EG Enabling Grip Switch

Handheld 3-position enabling grip switch with optional emergency stop or momentary button for machine setup and maintenance.

Key features

  • 3-position enabling switch with 2 contacts in an ergonomic grip
  • Versions with grip monitor output, emergency stop (2NC) or momentary (2NO) button
  • IP66 (A4EG-C000041) / IP65 (button versions)
  • Options: spare rubber cover, mounting bracket, holding key

Specifications

Brand Omron
Series A4EG
Type Handheld enabling grip
Product category Safety Switches
Source Omron A4EG Enabling Grip Switch datasheet, F-4 to F-16 (Korean ed.), p. 2-4
A4EG-C000041 Enable switch: 2 contacts | Monitor switch: 1NC (grip output) | Button: None | Protection: IP66
A4EG-BE2R041 Enable switch: 2 contacts | Monitor switch: None | Button: Emergency stop (2NC) | Protection: IP65
A4EG-BM2B041 Enable switch: 2 contacts | Monitor switch: None | Button: Momentary (2NO) | Protection: IP65
A4EG-OP1 Enable switch: - | Monitor switch: - | Button: - | Protection: Option: rubber cover (spare)
A4EG-OP2 Enable switch: - | Monitor switch: - | Button: - | Protection: Option: mounting bracket
A4EG-OP3 Enable switch: - | Monitor switch: - | Button: - | Protection: Option: holding key
Safety SwitchesOmron
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron A4EG Enabling Grip Switch

Brand Omron·Safety Switches

Available part numbers (6)

A4EG-C000041, A4EG-BE2R041, A4EG-BM2B041, A4EG-OP1, A4EG-OP2, A4EG-OP3

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A4EG-C000041Enable switch: 2 contacts | Monitor switch: 1NC (grip output) | Button: None | Protection: IP66
A4EG-BE2R041Enable switch: 2 contacts | Monitor switch: None | Button: Emergency stop (2NC) | Protection: IP65
A4EG-BM2B041Enable switch: 2 contacts | Monitor switch: None | Button: Momentary (2NO) | Protection: IP65
A4EG-OP1Enable switch: - | Monitor switch: - | Button: - | Protection: Option: rubber cover (spare)
A4EG-OP2Enable switch: - | Monitor switch: - | Button: - | Protection: Option: mounting bracket
A4EG-OP3Enable switch: - | Monitor switch: - | Button: - | Protection: Option: holding key
