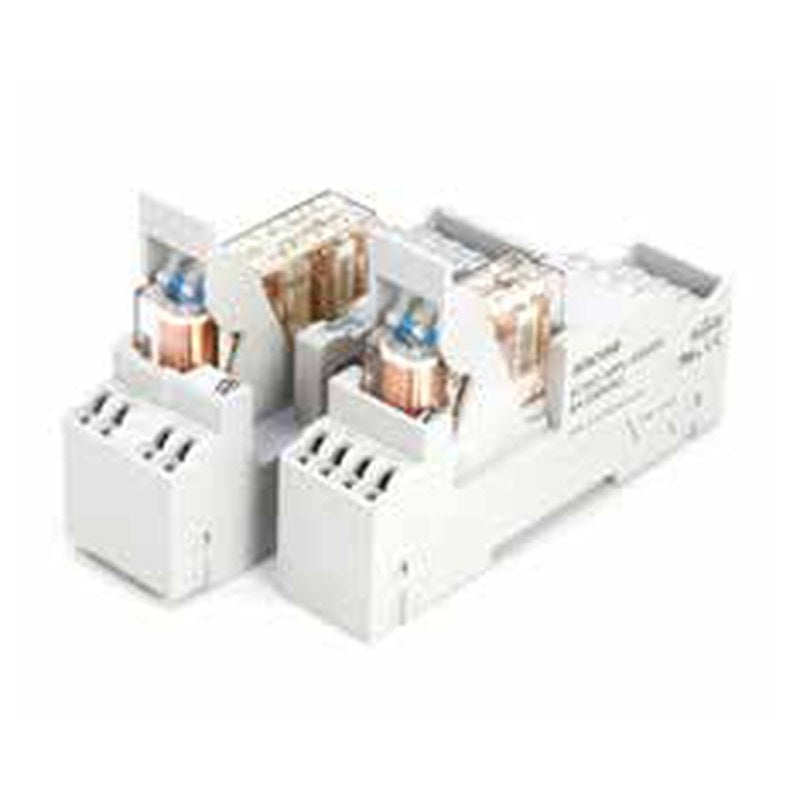

KACON K7SC-PL Push-in Safety Relay Sockets (4P/6P, 24VDC)

KACON K7SC-PL Push-in Safety Relay Sockets (4P/6P, 24VDC)

DIN-rail push-in terminal sockets with coil protection diode for K7SR 4-pole and 6-pole safety relays.

Key features

  • Push-in terminals for fast tool-less wiring
  • 2,500VAC dielectric strength (coil-contact), 1,000Mohm insulation
  • DIN rail mounting
  • Diode for coil protection and reverse-current prevention
  • Accepts 0.5 mm2 up to 2 x 1.5 / 1 x 2.5 mm2 wire

Specifications

Switching voltage 250VAC / 30VDC
Max. current 6A
Applicable coil voltage 6-24VDC
Ambient temperature -25 to 70 C
Wire 0.5 mm2 to 2x1.5 / 1x2.5 mm2
Strip length 8mm
Terminal Push-in
Source KACON Safety Relay & Socket (incl. Push-in Type) catalogue, p. 10-11
K7SC-10PL-24VDC Terminals: 10 (for 4P relay) | Voltage: 24VDC | Relays: K7SR-3A1B / 2A2B
K7SC-14PL-24VDC Terminals: 14 (for 6P relay) | Voltage: 24VDC | Relays: K7SR-5A1B / 4A2B / 3A3B
Safety Relay SocketsKACON
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON K7SC-PL Push-in Safety Relay Sockets (4P/6P, 24VDC)

Brand KACON·Safety Relay Sockets

Available part numbers (2)

K7SC-10PL-24VDC, K7SC-14PL-24VDC

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K7SC-10PL-24VDCTerminals: 10 (for 4P relay) | Voltage: 24VDC | Relays: K7SR-3A1B / 2A2B
K7SC-14PL-24VDCTerminals: 14 (for 6P relay) | Voltage: 24VDC | Relays: K7SR-5A1B / 4A2B / 3A3B
