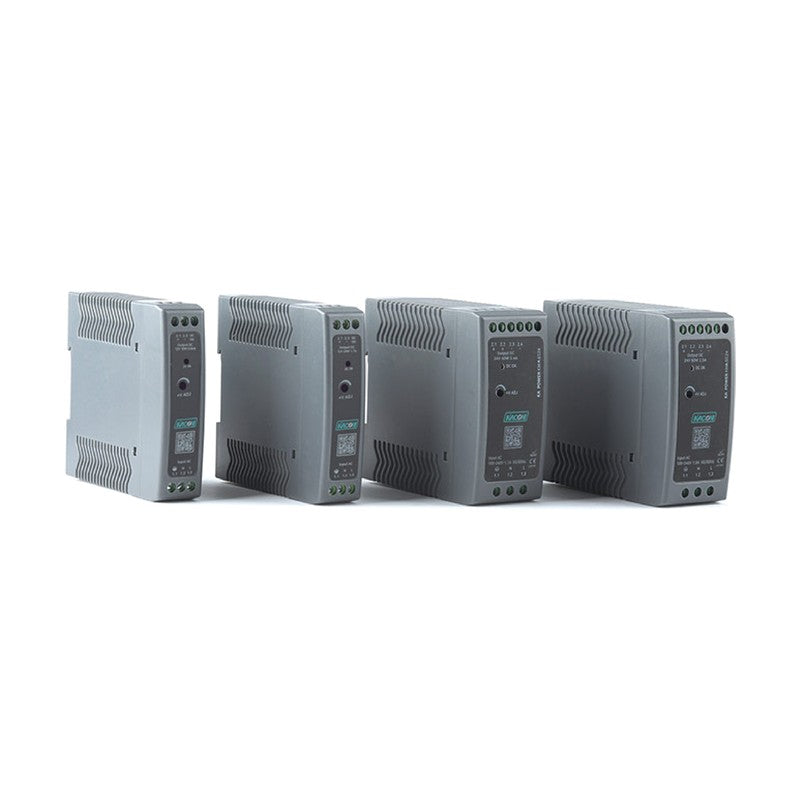

KACON KMA Series DIN-rail SMPS 10-100W

KACON KMA Series DIN-rail SMPS 10-100W

Compact plastic-housed DIN-rail switching power supplies from 10W to 100W with 5, 12, 24 or 48VDC output for control panels and automation equipment.

Key features

  • Wide range of output models from 10W to 100W, 5-48VDC
  • Flame-retardant plastic enclosure for reliable insulation
  • Slim design with easy DIN-rail mounting
  • Overload and overvoltage protection with automatic reset
  • Universal AC input 85-264VAC or 120-370VDC
  • DC output indicator LED

Specifications

Input voltage 85-264VAC 50/60Hz; 120-370VDC
Overload protection Yes, automatic reset
Overvoltage protection Yes, automatic reset
Safety standards IEC/EN 60950-1, GB 4943.1
EMC standards EN 55022 (CISPR 22) Class B, EN 61000-4-2, 3, 4, 5, 6, 8, 11, EN 61000-6-1
Dielectric strength Input-output 3kVAC / input-ground 1.5kVAC / output-ground 0.5kVAC
Ambient temperature -25 to 70°C (KMA100: -10 to 60°C)
Mounting DIN rail
Dimensions (H x D) 90 x 100 mm (width 23 / 40 / 55 mm by model)
KACON KMA Series DIN-rail SMPS 10-100W - reference 2
KMA105 Output power: 10W | Output voltage: 5VDC | Output current: 2A | Voltage tolerance: ±5% | Ripple & noise: 80mV | Efficiency (typ.): 76% | Input current: 0.33A (115VAC) / 0.21A (230VAC) | Surge current: 35A (115VAC) / 70A (230VAC) | Width: 23 mm | Weight: approx. 0.18 kg
KMA1012 Output power: 10W | Output voltage: 12VDC | Output current: 0.83A | Voltage tolerance: ±3% | Ripple & noise: 120mV | Efficiency (typ.): 80% | Input current: 0.33A (115VAC) / 0.21A (230VAC) | Surge current: 35A (115VAC) / 70A (230VAC) | Width: 23 mm | Weight: approx. 0.18 kg
KMA1024 Output power: 10W | Output voltage: 24VDC | Output current: 0.42A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 83% | Input current: 0.33A (115VAC) / 0.21A (230VAC) | Surge current: 35A (115VAC) / 70A (230VAC) | Width: 23 mm | Weight: approx. 0.18 kg
KMA205 Output power: 20W | Output voltage: 5VDC | Output current: 4A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 76% | Input current: 0.55A (115VAC) / 0.35A (230VAC) | Surge current: 20A (115VAC) / 40A (230VAC) | Width: 23 mm | Weight: approx. 0.2 kg
KMA2012 Output power: 20W | Output voltage: 12VDC | Output current: 1.67A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 80% | Input current: 0.55A (115VAC) / 0.35A (230VAC) | Surge current: 20A (115VAC) / 40A (230VAC) | Width: 23 mm | Weight: approx. 0.2 kg
KMA2024 Output power: 20W | Output voltage: 24VDC | Output current: 1A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 83% | Input current: 0.55A (115VAC) / 0.35A (230VAC) | Surge current: 20A (115VAC) / 40A (230VAC) | Width: 23 mm | Weight: approx. 0.2 kg
KMA405 Output power: 40W | Output voltage: 5VDC | Output current: 8A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 78% | Input current: 0.1A (115VAC) / 0.7A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.32 kg
KMA4012 Output power: 40W | Output voltage: 12VDC | Output current: 3.33A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 86% | Input current: 0.1A (115VAC) / 0.7A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.32 kg
KMA4024 Output power: 40W | Output voltage: 24VDC | Output current: 1.7A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 0.1A (115VAC) / 0.7A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.32 kg
KMA605 Output power: 60W | Output voltage: 5VDC | Output current: 12A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 78% | Input current: 1.8A (115VAC) / 1A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.35 kg
KMA6012 Output power: 60W | Output voltage: 12VDC | Output current: 5A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 86% | Input current: 1.8A (115VAC) / 1A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.35 kg
KMA6024 Output power: 60W | Output voltage: 24VDC | Output current: 2.5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 1.8A (115VAC) / 1A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.35 kg
KMA6048 Output power: 60W | Output voltage: 48VDC | Output current: 1.25A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 88% | Input current: 1.8A (115VAC) / 1A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.35 kg
KMA10012 Output power: 100W | Output voltage: 12VDC | Output current: 8.33A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 82% | Input current: 1.3A (115VAC) / 0.8A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 55 mm | Weight: approx. 0.45 kg
KMA10024 Output power: 100W | Output voltage: 24VDC | Output current: 4.2A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 85% | Input current: 1.3A (115VAC) / 0.8A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 55 mm | Weight: approx. 0.45 kg
KMA10048 Output power: 100W | Output voltage: 48VDC | Output current: 2.1A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 86% | Input current: 1.3A (115VAC) / 0.8A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 55 mm | Weight: approx. 0.45 kg
SMPSKACON
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KMA Series DIN-rail SMPS 10-100W

Brand KACON·SMPS

Available part numbers (16)

KMA105, KMA1012, KMA1024, KMA205, KMA2012, KMA2024, KMA405, KMA4012, KMA4024, KMA605 + 6 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON KMA Series DIN-rail SMPS 10-100W - reference 2
0 selected
RFQ List (0)
Product codeSpec
KMA105Output power: 10W | Output voltage: 5VDC | Output current: 2A | Voltage tolerance: ±5% | Ripple & noise: 80mV | Efficiency (typ.): 76% | Input current: 0.33A (115VAC) / 0.21A (230VAC) | Surge current: 35A (115VAC) / 70A (230VAC) | Width: 23 mm | Weight: approx. 0.18 kg
KMA1012Output power: 10W | Output voltage: 12VDC | Output current: 0.83A | Voltage tolerance: ±3% | Ripple & noise: 120mV | Efficiency (typ.): 80% | Input current: 0.33A (115VAC) / 0.21A (230VAC) | Surge current: 35A (115VAC) / 70A (230VAC) | Width: 23 mm | Weight: approx. 0.18 kg
KMA1024Output power: 10W | Output voltage: 24VDC | Output current: 0.42A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 83% | Input current: 0.33A (115VAC) / 0.21A (230VAC) | Surge current: 35A (115VAC) / 70A (230VAC) | Width: 23 mm | Weight: approx. 0.18 kg
KMA205Output power: 20W | Output voltage: 5VDC | Output current: 4A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 76% | Input current: 0.55A (115VAC) / 0.35A (230VAC) | Surge current: 20A (115VAC) / 40A (230VAC) | Width: 23 mm | Weight: approx. 0.2 kg
KMA2012Output power: 20W | Output voltage: 12VDC | Output current: 1.67A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 80% | Input current: 0.55A (115VAC) / 0.35A (230VAC) | Surge current: 20A (115VAC) / 40A (230VAC) | Width: 23 mm | Weight: approx. 0.2 kg
KMA2024Output power: 20W | Output voltage: 24VDC | Output current: 1A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 83% | Input current: 0.55A (115VAC) / 0.35A (230VAC) | Surge current: 20A (115VAC) / 40A (230VAC) | Width: 23 mm | Weight: approx. 0.2 kg
KMA405Output power: 40W | Output voltage: 5VDC | Output current: 8A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 78% | Input current: 0.1A (115VAC) / 0.7A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.32 kg
KMA4012Output power: 40W | Output voltage: 12VDC | Output current: 3.33A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 86% | Input current: 0.1A (115VAC) / 0.7A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.32 kg
KMA4024Output power: 40W | Output voltage: 24VDC | Output current: 1.7A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 0.1A (115VAC) / 0.7A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.32 kg
KMA605Output power: 60W | Output voltage: 5VDC | Output current: 12A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 78% | Input current: 1.8A (115VAC) / 1A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.35 kg
KMA6012Output power: 60W | Output voltage: 12VDC | Output current: 5A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 86% | Input current: 1.8A (115VAC) / 1A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.35 kg
KMA6024Output power: 60W | Output voltage: 24VDC | Output current: 2.5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 1.8A (115VAC) / 1A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.35 kg
KMA6048Output power: 60W | Output voltage: 48VDC | Output current: 1.25A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 88% | Input current: 1.8A (115VAC) / 1A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 40 mm | Weight: approx. 0.35 kg
KMA10012Output power: 100W | Output voltage: 12VDC | Output current: 8.33A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 82% | Input current: 1.3A (115VAC) / 0.8A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 55 mm | Weight: approx. 0.45 kg
KMA10024Output power: 100W | Output voltage: 24VDC | Output current: 4.2A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 85% | Input current: 1.3A (115VAC) / 0.8A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 55 mm | Weight: approx. 0.45 kg
KMA10048Output power: 100W | Output voltage: 48VDC | Output current: 2.1A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 86% | Input current: 1.3A (115VAC) / 0.8A (230VAC) | Surge current: 30A (115VAC) / 60A (230VAC) | Width: 55 mm | Weight: approx. 0.45 kg
