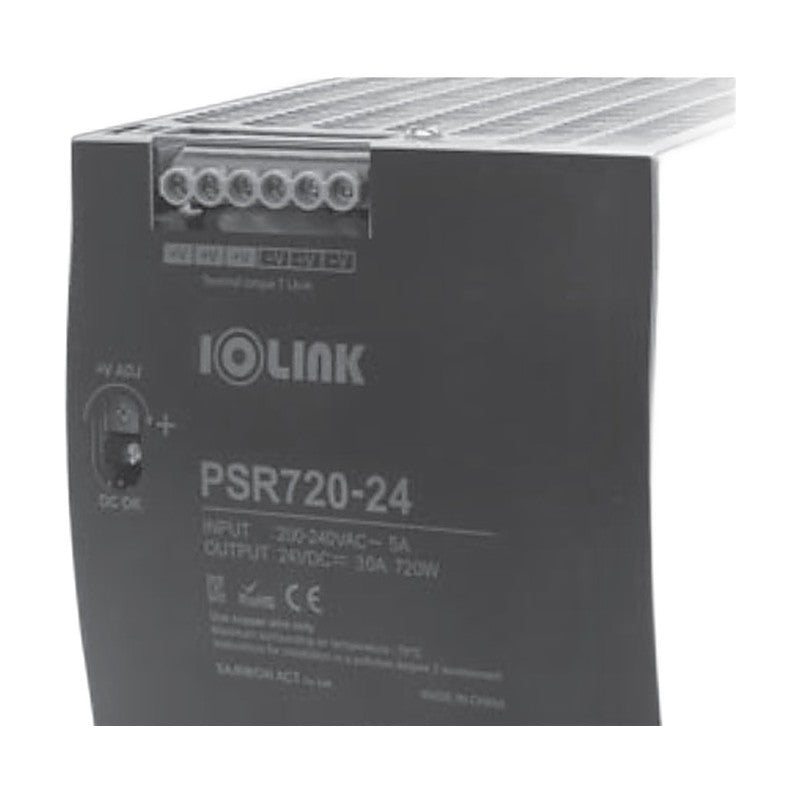

Samwon ACT PSR720 DIN-Rail Switching Power Supply, 720 W
Samwon ACT PSR720 DIN-Rail Switching Power Supply, 720 W
DIN-rail mounted switching mode power supply (SMPS) of the PSR series with 720 W rated output.
Key features
- Compact DIN-rail switching power supply for space-saving installation
- Overload, short-circuit and over-voltage protection
- High efficiency with low heat generation
- Low noise and ripple for stable power to electrical equipment
- Adjustable output voltage and green DC OK LED
- New model in the PSR line-up
Specifications
| Indicator | Green LED |
|---|---|
| Withstand Voltage | I/P-O/P 3 kV AC, I/P-FG 2 kV AC, O/P-FG 0.5 kV AC, O/P-DC OK 0.5 kV AC |
| Insulation Resistance | 100 Mohm / 500 V DC |
| Mounting | DIN rail TS35 |
| Protection Class | IP20 |
| Frequency | 47-63 Hz |
| Storage Temperature | -40 to +85 C |
| Over-Voltage Protection | Shut down O/P voltage, re-power on to recover |
| Input Voltage | 180-264 V AC / 254-370 V DC |
| Inrush Current | Cold start 50 A / 230 V AC |
| Operating Temperature | -30 to +70 C (see derating curve) |
| PSR720-24 | Output: 24 V DC 30 A | Rated Power: 720 W | Efficiency: 94% | Adjustment Range: 24-28 V | Ripple & Noise: 180 mVp-p max. | Over-Voltage Protection: 29-33 V | Approvals: CE, KC | |
| PSR720-48 | Output: 48 V DC 15 A | Rated Power: 720 W | Efficiency: 94% | Adjustment Range: 48-55 V | Ripple & Noise: 250 mVp-p max. | Over-Voltage Protection: 56-65 V | Approvals: CE, KC |
Power SuppliesSamwon ACT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Samwon ACT PSR720 DIN-Rail Switching Power Supply, 720 W
Available part numbers (2)
PSR720-24, PSR720-48
How to order
Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Samwon ACT
Power Supplies
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| PSR720-24 | Output: 24 V DC 30 A | Rated Power: 720 W | Efficiency: 94% | Adjustment Range: 24-28 V | Ripple & Noise: 180 mVp-p max. | Over-Voltage Protection: 29-33 V | Approvals: CE, KC | ||
| PSR720-48 | Output: 48 V DC 15 A | Rated Power: 720 W | Efficiency: 94% | Adjustment Range: 48-55 V | Ripple & Noise: 250 mVp-p max. | Over-Voltage Protection: 56-65 V | Approvals: CE, KC |
