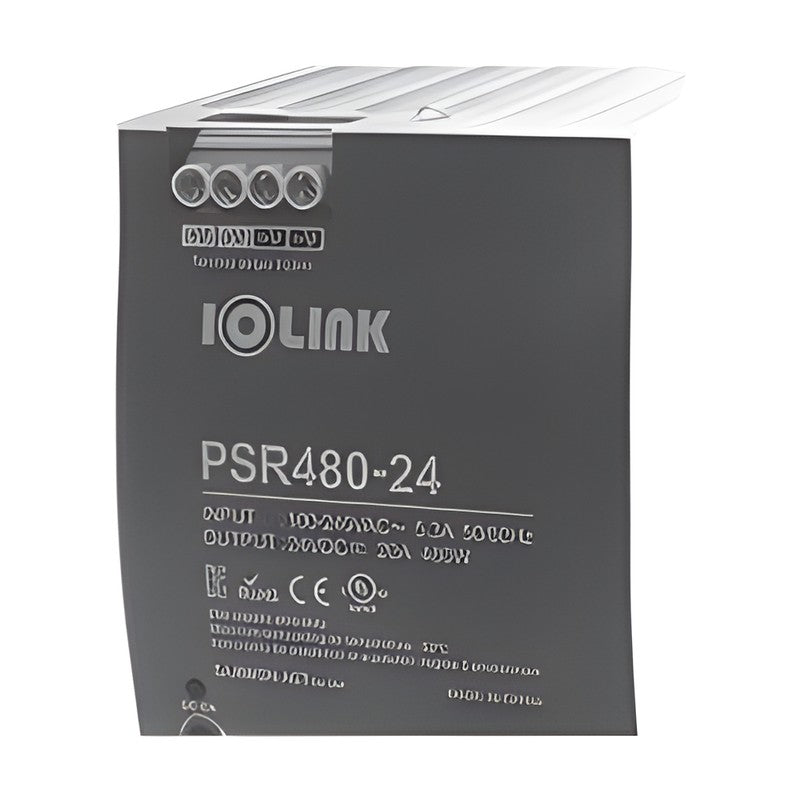

Samwon ACT PSR480 DIN-Rail Switching Power Supply, 480 W
Samwon ACT PSR480 DIN-Rail Switching Power Supply, 480 W
DIN-rail mounted switching mode power supply (SMPS) of the PSR series with 480 W rated output.
Key features
- Compact DIN-rail switching power supply for space-saving installation
- Overload, short-circuit and over-voltage protection
- High efficiency with low heat generation
- Low noise and ripple for stable power to electrical equipment
- Adjustable output voltage and green DC OK LED
Specifications
| Indicator | Green LED |
|---|---|
| Withstand Voltage | I/P-O/P 3 kV AC, I/P-FG 2 kV AC, O/P-FG 0.5 kV AC |
| Insulation Resistance | 100 Mohm / 500 V DC |
| Mounting | DIN rail TS35 |
| Protection Class | IP20 |
| Frequency | 47-63 Hz |
| Storage Temperature | -40 to +85 C |
| Over-Voltage Protection | Shut down O/P voltage, re-power on to recover |
| Input Voltage | 96-264 V AC / 120-370 V DC |
| AC Current | 4.8 A / 115 V AC, 2.4 A / 230 V AC |
| Inrush Current | 20 A / 115 V AC, 35 A / 230 V AC |
| Overload Protection | 105-130% of rated power, constant current limiting, auto recovery |
| PSR480-24 | Output: 24 V DC 20 A | Rated Power: 480 W | Efficiency: 90% | Adjustment Range: 24-28 V | Ripple & Noise: 150 mVp-p max. | Over-Voltage Protection: 29-33 V | Approvals: cULus, CE, KC | |
| PSR480-48 | Output: 48 V DC 10 A | Rated Power: 480 W | Efficiency: 90% | Adjustment Range: 48-56 V | Ripple & Noise: 150 mVp-p max. | Over-Voltage Protection: 56-65 V | Approvals: cULus, CE, KC |
Power SuppliesSamwon ACT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Samwon ACT PSR480 DIN-Rail Switching Power Supply, 480 W
Available part numbers (2)
PSR480-24, PSR480-48
How to order
Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Samwon ACT
Power Supplies
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| PSR480-24 | Output: 24 V DC 20 A | Rated Power: 480 W | Efficiency: 90% | Adjustment Range: 24-28 V | Ripple & Noise: 150 mVp-p max. | Over-Voltage Protection: 29-33 V | Approvals: cULus, CE, KC | ||
| PSR480-48 | Output: 48 V DC 10 A | Rated Power: 480 W | Efficiency: 90% | Adjustment Range: 48-56 V | Ripple & Noise: 150 mVp-p max. | Over-Voltage Protection: 56-65 V | Approvals: cULus, CE, KC |
Need a different model, or a part not listed here? Send us your parts list →
