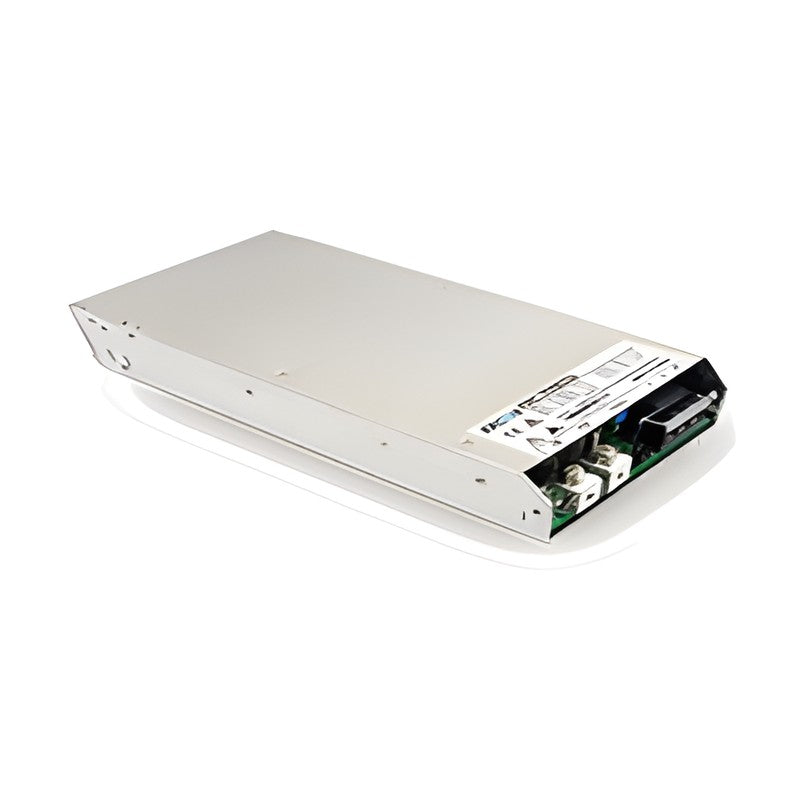

KACON KMC Series High-Power SMPS 2000-3000W
KACON KMC Series High-Power SMPS 2000-3000W
High-power enclosed switching power supplies from 2000W to 3000W with 12, 24 or 48VDC output and fan cooling for heavy industrial loads.
Key features
- Output power 2000W, 2400W and 3000W at 12-48VDC
- Built-in active PFC function
- Forced-air cooling by built-in DC fan
- Overload, overvoltage and overtemperature protection with automatic reset
- Power ON LED indicator
Specifications
| Overload protection | Yes, automatic reset |
|---|---|
| Overvoltage protection | Yes, automatic reset |
| Overtemperature protection | Yes, automatic reset |
| EMC standards | EN 55032 (CISPR 32), EN 61204-3 Class B, EN 61000-3-2, -3 |
| Dielectric strength | Input-output 3kVAC / input-ground 2kVAC / output-ground 0.5kVAC |
| Cooling | Built-in DC fan (forced air) |
| KMC200012 | Output power: 2000W | Output voltage: 12VDC | Output current: 167A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 87% | Input voltage: 90-264VAC 50/60Hz; 127-320VDC | Input current: 13A (115VAC) / 7A (230VAC) | Surge current: 50A (230VAC) | Ambient temperature: -35 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 295 x 127 x 41 mm | Weight: approx. 1.95 kg | |
| KMC200024 | Output power: 2000W | Output voltage: 24VDC | Output current: 84A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 90.5% | Input voltage: 90-264VAC 50/60Hz; 127-320VDC | Input current: 13A (115VAC) / 7A (230VAC) | Surge current: 50A (230VAC) | Ambient temperature: -35 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 295 x 127 x 41 mm | Weight: approx. 1.95 kg | |
| KMC200048 | Output power: 2000W | Output voltage: 48VDC | Output current: 42A | Voltage tolerance: ±1% | Ripple & noise: 300mV | Efficiency (typ.): 92% | Input voltage: 90-264VAC 50/60Hz; 127-320VDC | Input current: 13A (115VAC) / 7A (230VAC) | Surge current: 50A (230VAC) | Ambient temperature: -35 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 295 x 127 x 41 mm | Weight: approx. 1.95 kg | |
| KMC240012 | Output power: 2400W | Output voltage: 12VDC | Output current: 166.7A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88.0% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 15.5A (180VAC) / 12A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 3.3 kg | |
| KMC240024 | Output power: 2400W | Output voltage: 24VDC | Output current: 100A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 90.5% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 15.5A (180VAC) / 12A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 3.3 kg | |
| KMC240048 | Output power: 2400W | Output voltage: 48VDC | Output current: 50A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 91.5% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 15.5A (180VAC) / 12A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 3.3 kg | |
| KMC300012 | Output power: 3000W | Output voltage: 12VDC | Output current: 250A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 87.5% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 20A (180VAC) / 16A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 4 kg | |
| KMC300024 | Output power: 3000W | Output voltage: 24VDC | Output current: 125A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 90% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 20A (180VAC) / 16A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 4 kg | |
| KMC300048 | Output power: 3000W | Output voltage: 48VDC | Output current: 62.5A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 91.5% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 20A (180VAC) / 16A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 4 kg |
SMPSKACON
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KACON KMC Series High-Power SMPS 2000-3000W
Available part numbers (9)
KMC200012, KMC200024, KMC200048, KMC240012, KMC240024, KMC240048, KMC300012, KMC300024, KMC300048
How to order
Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KACON
SMPS
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| KMC200012 | Output power: 2000W | Output voltage: 12VDC | Output current: 167A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 87% | Input voltage: 90-264VAC 50/60Hz; 127-320VDC | Input current: 13A (115VAC) / 7A (230VAC) | Surge current: 50A (230VAC) | Ambient temperature: -35 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 295 x 127 x 41 mm | Weight: approx. 1.95 kg | ||
| KMC200024 | Output power: 2000W | Output voltage: 24VDC | Output current: 84A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 90.5% | Input voltage: 90-264VAC 50/60Hz; 127-320VDC | Input current: 13A (115VAC) / 7A (230VAC) | Surge current: 50A (230VAC) | Ambient temperature: -35 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 295 x 127 x 41 mm | Weight: approx. 1.95 kg | ||
| KMC200048 | Output power: 2000W | Output voltage: 48VDC | Output current: 42A | Voltage tolerance: ±1% | Ripple & noise: 300mV | Efficiency (typ.): 92% | Input voltage: 90-264VAC 50/60Hz; 127-320VDC | Input current: 13A (115VAC) / 7A (230VAC) | Surge current: 50A (230VAC) | Ambient temperature: -35 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 295 x 127 x 41 mm | Weight: approx. 1.95 kg | ||
| KMC240012 | Output power: 2400W | Output voltage: 12VDC | Output current: 166.7A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88.0% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 15.5A (180VAC) / 12A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 3.3 kg | ||
| KMC240024 | Output power: 2400W | Output voltage: 24VDC | Output current: 100A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 90.5% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 15.5A (180VAC) / 12A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 3.3 kg | ||
| KMC240048 | Output power: 2400W | Output voltage: 48VDC | Output current: 50A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 91.5% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 15.5A (180VAC) / 12A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1, CCC GB 4943.1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 3.3 kg | ||
| KMC300012 | Output power: 3000W | Output voltage: 12VDC | Output current: 250A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 87.5% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 20A (180VAC) / 16A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 4 kg | ||
| KMC300024 | Output power: 3000W | Output voltage: 24VDC | Output current: 125A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 90% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 20A (180VAC) / 16A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 4 kg | ||
| KMC300048 | Output power: 3000W | Output voltage: 48VDC | Output current: 62.5A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 91.5% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 20A (180VAC) / 16A (230VAC) | Surge current: 60A (230VAC) | Ambient temperature: -20 to 70°C | Safety: UL 62368-1 | Dimensions: 278 x 177.8 x 63.5 mm | Weight: approx. 4 kg |
Need a different model, or a part not listed here? Send us your parts list →
