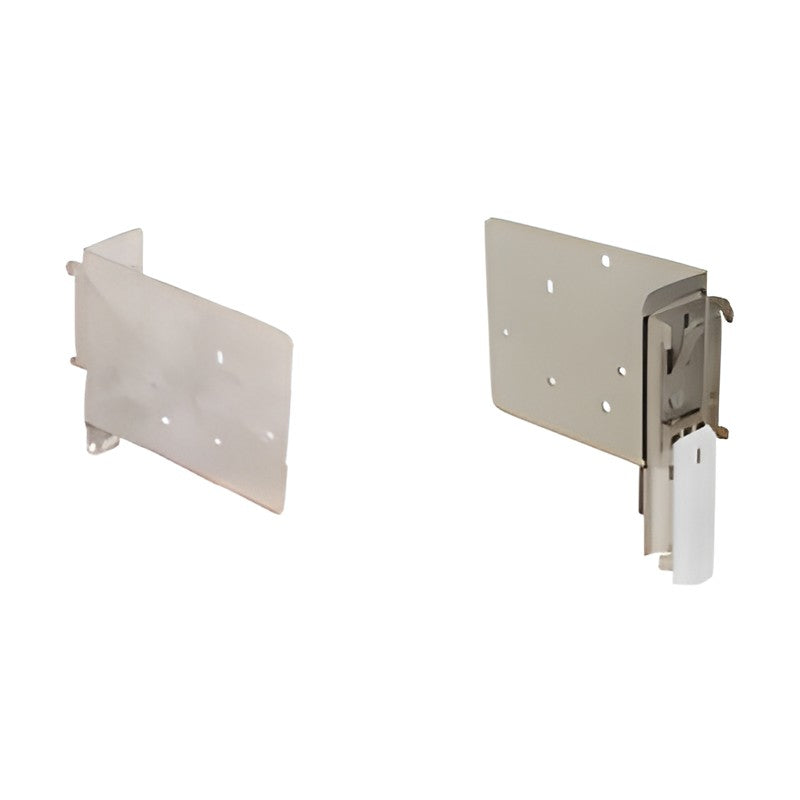

KACON KMS Series DIN-rail and Mounting Brackets

KACON KMS Series DIN-rail and Mounting Brackets

DIN-rail and side/bottom mounting brackets for KMS Series ultra-thin power supplies, allowing horizontal, vertical or DIN-rail installation.

Key features

  • DIN-rail bracket (DB) for KMS35 to KMS350
  • Side (vertical) mounting brackets BK1 and BK3
  • Bottom (horizontal) mounting brackets BK2 and BK4
  • Supplied with matching mounting screws

Specifications

Compatible series KMS Series
Note Use only the provided screws when attaching the bracket to the power supply
KACON KMS Series DIN-rail and Mounting Brackets - reference 2
DB Type: DIN-rail bracket | Applicable models: KMS35, 50, 75, 100, 150, 200, 350 | Thickness: 1.2 mm
BK1 Type: Side mounting bracket | Applicable models: KMS35-KMS150 | Composition: BK1 x 2, M3 bolt x 4 | Thickness: 1.5 mm | Dimensions A/B/height: KMS35, 50: 74/56/87 mm; KMS75: 75/56/102 mm; KMS100: 76.7/56/102 mm; KMS150: 117/56/102 mm
BK2 Type: Bottom mounting bracket | Applicable models: KMS35-KMS150 | Composition: BK2 x 2, M3 bolt x 4 | Thickness: 1.5 mm | Dimensions A/B/height: KMS35, 50: 55/110/35 mm; KMS75: 55/110/35 mm; KMS100: 48.5/110/35 mm; KMS150: 78/110/35 mm
BK3 Type: Side mounting bracket | Applicable models: KMS200, KMS350 | Composition: BK3 x 2, M4 bolt x 2 | Thickness: 1.2 mm | Dimensions A/B/height: 150/56/120 mm
BK4 Type: Bottom mounting bracket | Applicable models: KMS200, KMS350 | Composition: BK4 x 4, M4 bolt x 4 | Thickness: 1.2 mm | Dimensions A/B/height: 150/134.5/30 mm
SMPS AccessoriesKACON
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KMS Series DIN-rail and Mounting Brackets

Brand KACON·SMPS Accessories

Available part numbers (5)

DB, BK1, BK2, BK3, BK4

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON KMS Series DIN-rail and Mounting Brackets - reference 2
0 selected
RFQ List (0)
Product codeSpec
DBType: DIN-rail bracket | Applicable models: KMS35, 50, 75, 100, 150, 200, 350 | Thickness: 1.2 mm
BK1Type: Side mounting bracket | Applicable models: KMS35-KMS150 | Composition: BK1 x 2, M3 bolt x 4 | Thickness: 1.5 mm | Dimensions A/B/height: KMS35, 50: 74/56/87 mm; KMS75: 75/56/102 mm; KMS100: 76.7/56/102 mm; KMS150: 117/56/102 mm
BK2Type: Bottom mounting bracket | Applicable models: KMS35-KMS150 | Composition: BK2 x 2, M3 bolt x 4 | Thickness: 1.5 mm | Dimensions A/B/height: KMS35, 50: 55/110/35 mm; KMS75: 55/110/35 mm; KMS100: 48.5/110/35 mm; KMS150: 78/110/35 mm
BK3Type: Side mounting bracket | Applicable models: KMS200, KMS350 | Composition: BK3 x 2, M4 bolt x 2 | Thickness: 1.2 mm | Dimensions A/B/height: 150/56/120 mm
BK4Type: Bottom mounting bracket | Applicable models: KMS200, KMS350 | Composition: BK4 x 4, M4 bolt x 4 | Thickness: 1.2 mm | Dimensions A/B/height: 150/134.5/30 mm
