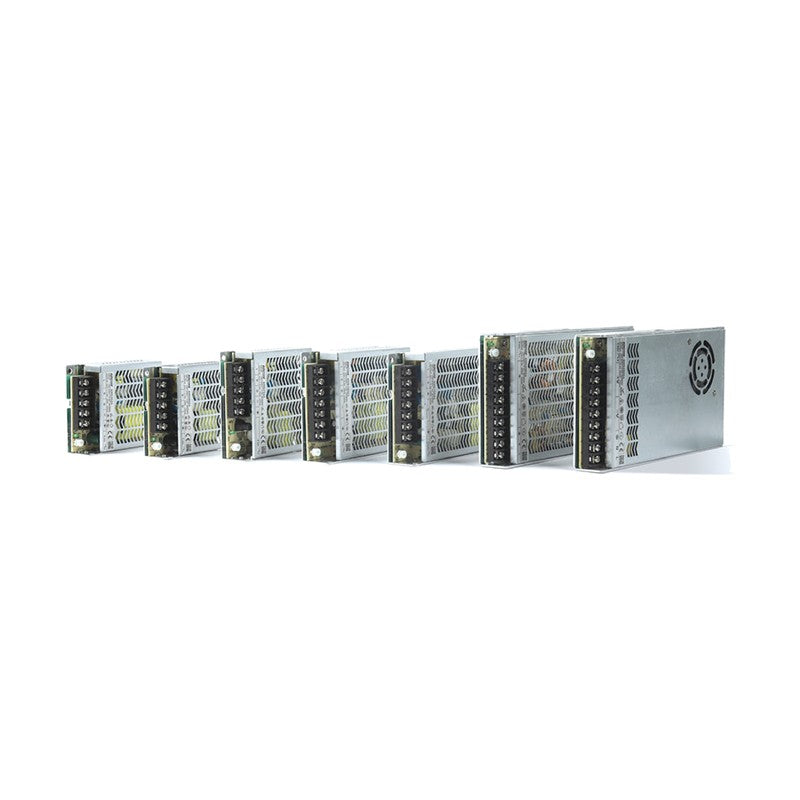

KACON KMS Series Ultra-thin SMPS 200-350W

KACON KMS Series Ultra-thin SMPS 200-350W

Ultra-thin enclosed switching power supplies at 200W and 350W with 5 to 48VDC output for panel or DIN-rail mounting in industrial equipment.

Key features

  • Slim 30 mm profile at 200W and 350W
  • Output voltages 5, 12, 24 and 48VDC
  • Overload, overvoltage and overtemperature protection with automatic reset
  • S versions (KMS200S/KMS350S) with built-in 115/230VAC input selector switch
  • Optional DIN-rail bracket (suffix DB) and side/bottom mounting brackets

Specifications

Input voltage 180-264VAC (S versions: 90-132VAC / 180-264VAC, selectable by built-in switch)
Surge current Cold start 60A (230VAC); S versions 60A (115VAC) / 60A (230VAC)
Overload protection Yes, automatic reset
Overvoltage protection Yes, automatic reset
Overtemperature protection Yes, automatic reset
Safety standards IEC/EN 60950-1, GB 4943.1
EMC standards EN 55022 (CISPR 22) Class B, EN 61000-4-2, 3, 4, 5, 6, 8, 11, EN 61000-6-1
Dielectric strength Input-output 3kVAC / input-ground 2kVAC / output-ground 0.5kVAC
Ambient temperature -25 to 70°C
Dimensions (W x H x D) 215 x 30 x 114.5 mm (without DIN-rail bracket)
Mounting brackets BK3 (side), BK4 (bottom), DB (DIN rail)
KACON KMS Series Ultra-thin SMPS 200-350W - reference 2
KMS2005 Output power: 200W | Output voltage: 5VDC | Output current: 40A | Voltage tolerance: ±3% | Ripple & noise: 150mV | Efficiency (typ.): 86% | Input current: 2.2A (230VAC) | Input voltage: 180-264VAC (KMS200S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.66 kg
KMS20012 Output power: 200W | Output voltage: 12VDC | Output current: 17A | Voltage tolerance: ±1.5% | Ripple & noise: 150mV | Efficiency (typ.): 87% | Input current: 2.2A (230VAC) | Input voltage: 180-264VAC (KMS200S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.66 kg
KMS20024 Output power: 200W | Output voltage: 24VDC | Output current: 8.8A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 2.2A (230VAC) | Input voltage: 180-264VAC (KMS200S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.66 kg
KMS20048 Output power: 200W | Output voltage: 48VDC | Output current: 4.4A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input current: 2.2A (230VAC) | Input voltage: 180-264VAC (KMS200S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.66 kg
KMS3505 Output power: 350W | Output voltage: 5VDC | Output current: 61A | Voltage tolerance: ±3% | Ripple & noise: 150mV | Efficiency (typ.): 83.5% | Input current: 3.4A (230VAC) | Input voltage: 180-264VAC (KMS350S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.76 kg
KMS35012 Output power: 350W | Output voltage: 12VDC | Output current: 29.2A | Voltage tolerance: ±1.5% | Ripple & noise: 150mV | Efficiency (typ.): 83.5% | Input current: 3.4A (230VAC) | Input voltage: 180-264VAC (KMS350S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.76 kg
KMS35024 Output power: 350W | Output voltage: 24VDC | Output current: 14.6A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 3.4A (230VAC) | Input voltage: 180-264VAC (KMS350S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.76 kg
KMS35048 Output power: 350W | Output voltage: 48VDC | Output current: 7.3A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 89% | Input current: 3.4A (230VAC) | Input voltage: 180-264VAC (KMS350S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.76 kg
SMPSKACON
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KMS Series Ultra-thin SMPS 200-350W

Brand KACON·SMPS

Available part numbers (8)

KMS2005, KMS20012, KMS20024, KMS20048, KMS3505, KMS35012, KMS35024, KMS35048

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON KMS Series Ultra-thin SMPS 200-350W - reference 2
0 selected
RFQ List (0)
Product codeSpec
KMS2005Output power: 200W | Output voltage: 5VDC | Output current: 40A | Voltage tolerance: ±3% | Ripple & noise: 150mV | Efficiency (typ.): 86% | Input current: 2.2A (230VAC) | Input voltage: 180-264VAC (KMS200S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.66 kg
KMS20012Output power: 200W | Output voltage: 12VDC | Output current: 17A | Voltage tolerance: ±1.5% | Ripple & noise: 150mV | Efficiency (typ.): 87% | Input current: 2.2A (230VAC) | Input voltage: 180-264VAC (KMS200S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.66 kg
KMS20024Output power: 200W | Output voltage: 24VDC | Output current: 8.8A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 2.2A (230VAC) | Input voltage: 180-264VAC (KMS200S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.66 kg
KMS20048Output power: 200W | Output voltage: 48VDC | Output current: 4.4A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input current: 2.2A (230VAC) | Input voltage: 180-264VAC (KMS200S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.66 kg
KMS3505Output power: 350W | Output voltage: 5VDC | Output current: 61A | Voltage tolerance: ±3% | Ripple & noise: 150mV | Efficiency (typ.): 83.5% | Input current: 3.4A (230VAC) | Input voltage: 180-264VAC (KMS350S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.76 kg
KMS35012Output power: 350W | Output voltage: 12VDC | Output current: 29.2A | Voltage tolerance: ±1.5% | Ripple & noise: 150mV | Efficiency (typ.): 83.5% | Input current: 3.4A (230VAC) | Input voltage: 180-264VAC (KMS350S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.76 kg
KMS35024Output power: 350W | Output voltage: 24VDC | Output current: 14.6A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 3.4A (230VAC) | Input voltage: 180-264VAC (KMS350S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.76 kg
KMS35048Output power: 350W | Output voltage: 48VDC | Output current: 7.3A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 89% | Input current: 3.4A (230VAC) | Input voltage: 180-264VAC (KMS350S: 90-132VAC / 180-264VAC switchable) | Weight: approx. 0.76 kg
