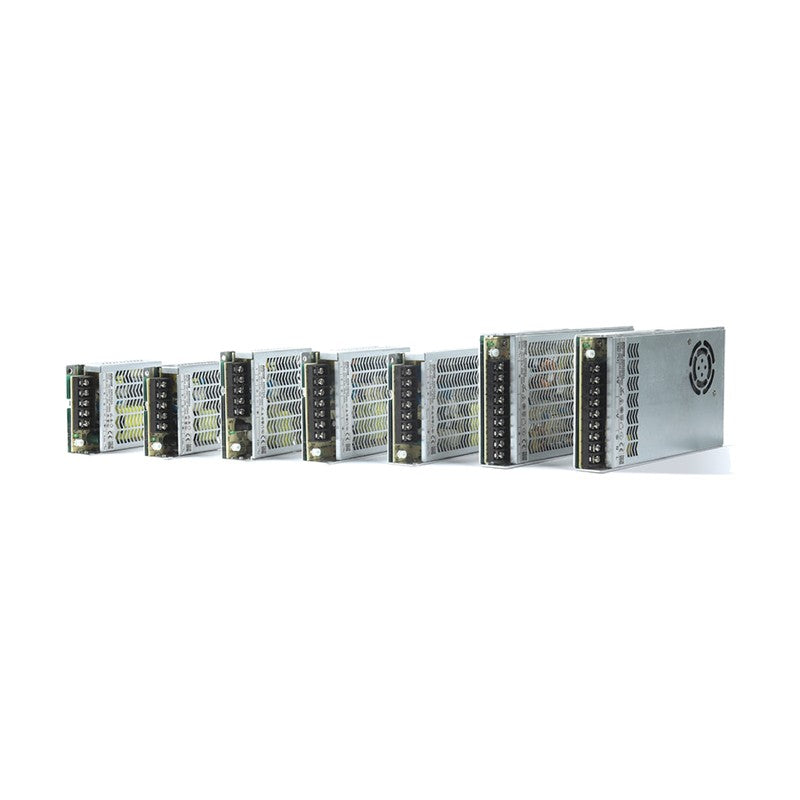

KACON KMS Series Ultra-thin SMPS 35-150W

KACON KMS Series Ultra-thin SMPS 35-150W

Ultra-thin 30 mm enclosed switching power supplies from 35W to 150W with 5 to 48VDC output, for panel or DIN-rail mounting in machines and control panels.

Key features

  • Slim 30 mm profile
  • Output models from 35W to 150W, 5-48VDC
  • Optional DIN-rail mounting bracket (suffix DB) and side/bottom mounting brackets
  • Wide AC input range 85-264VAC and high efficiency
  • Overload and overvoltage protection with automatic reset
  • DC output indicator LED

Specifications

Input voltage 85-264VAC 50/60Hz; 120-373VDC
Overload protection Yes, automatic reset
Overvoltage protection Yes, automatic reset
Safety standards IEC/EN 60950-1, GB 4943.1
EMC standards EN 55022 (CISPR 22) Class B, EN 61000-4-2, 3, 4, 5, 6, 8, 11, EN 61000-6-1
Dielectric strength Input-output 3kVAC / input-ground 1.5kVAC / output-ground 0.5kVAC
Height 30 mm (31 mm with DIN-rail bracket)
Mounting Screw mounting; DIN-rail bracket on request (order suffix DB, e.g. KMS3524DB)
Mounting brackets BK1 (side), BK2 (bottom), DB (DIN rail)
KACON KMS Series Ultra-thin SMPS 35-150W - reference 2
KMS355 Output power: 35W | Output voltage: 5VDC | Output current: 7A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 83% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS3512 Output power: 35W | Output voltage: 12VDC | Output current: 3A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 86% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS3524 Output power: 35W | Output voltage: 24VDC | Output current: 1.45A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 88% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS505 Output power: 50W | Output voltage: 5VDC | Output current: 10A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 83% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS5012 Output power: 50W | Output voltage: 12VDC | Output current: 4.2A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 86% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS5024 Output power: 50W | Output voltage: 24VDC | Output current: 2.2A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS5048 Output power: 50W | Output voltage: 48VDC | Output current: 1.1A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS755 Output power: 75W | Output voltage: 5VDC | Output current: 15A | Voltage tolerance: ±2% | Ripple & noise: 100mV | Efficiency (typ.): 85% | Input current: 1.4A (115VAC) / 0.85A (230VAC) | Surge current: 65A (230VAC) | Overtemperature protection: none
KMS7512 Output power: 75W | Output voltage: 12VDC | Output current: 6.25A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 1.4A (115VAC) / 0.85A (230VAC) | Surge current: 65A (230VAC) | Overtemperature protection: none
KMS7524 Output power: 75W | Output voltage: 24VDC | Output current: 3.2A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 89% | Input current: 1.4A (115VAC) / 0.85A (230VAC) | Surge current: 65A (230VAC) | Overtemperature protection: none
KMS7548 Output power: 75W | Output voltage: 48VDC | Output current: 1.6A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input current: 1.4A (115VAC) / 0.85A (230VAC) | Surge current: 65A (230VAC) | Overtemperature protection: none
KMS1005 Output power: 100W | Output voltage: 5VDC | Output current: 20A | Voltage tolerance: ±2% | Ripple & noise: 100mV | Efficiency (typ.): 86% | Input current: 1.9A (115VAC) / 1.2A (230VAC) | Surge current: 50A (230VAC) | Overtemperature protection: none
KMS10012 Output power: 100W | Output voltage: 12VDC | Output current: 8.5A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 88% | Input current: 1.9A (115VAC) / 1.2A (230VAC) | Surge current: 50A (230VAC) | Overtemperature protection: none
KMS10024 Output power: 100W | Output voltage: 24VDC | Output current: 4.5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 1.9A (115VAC) / 1.2A (230VAC) | Surge current: 50A (230VAC) | Overtemperature protection: none
KMS10048 Output power: 100W | Output voltage: 48VDC | Output current: 2.1A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 91% | Input current: 1.9A (115VAC) / 1.2A (230VAC) | Surge current: 50A (230VAC) | Overtemperature protection: none
KMS1505 Output power: 150W | Output voltage: 5VDC | Output current: 30A | Voltage tolerance: ±2% | Ripple & noise: 100mV | Efficiency (typ.): 85% | Input current: 3A (115VAC) / 2A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: yes, automatic reset
KMS15012 Output power: 150W | Output voltage: 12VDC | Output current: 12.5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 3A (115VAC) / 2A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: yes, automatic reset
KMS15024 Output power: 150W | Output voltage: 24VDC | Output current: 6.5A | Voltage tolerance: ±1% | Ripple & noise: 2000mV | Efficiency (typ.): 89% | Input current: 3A (115VAC) / 2A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: yes, automatic reset
KMS15048 Output power: 150W | Output voltage: 48VDC | Output current: 3.3A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input current: 3A (115VAC) / 2A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: yes, automatic reset
SMPSKACON
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KMS Series Ultra-thin SMPS 35-150W

Brand KACON·SMPS

Available part numbers (19)

KMS355, KMS3512, KMS3524, KMS505, KMS5012, KMS5024, KMS5048, KMS755, KMS7512, KMS7524 + 9 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON KMS Series Ultra-thin SMPS 35-150W - reference 2
0 selected
RFQ List (0)
Product codeSpec
KMS355Output power: 35W | Output voltage: 5VDC | Output current: 7A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 83% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS3512Output power: 35W | Output voltage: 12VDC | Output current: 3A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 86% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS3524Output power: 35W | Output voltage: 24VDC | Output current: 1.45A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 88% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS505Output power: 50W | Output voltage: 5VDC | Output current: 10A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 83% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS5012Output power: 50W | Output voltage: 12VDC | Output current: 4.2A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 86% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS5024Output power: 50W | Output voltage: 24VDC | Output current: 2.2A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS5048Output power: 50W | Output voltage: 48VDC | Output current: 1.1A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input current: 0.95A (115VAC) / 0.56A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: none
KMS755Output power: 75W | Output voltage: 5VDC | Output current: 15A | Voltage tolerance: ±2% | Ripple & noise: 100mV | Efficiency (typ.): 85% | Input current: 1.4A (115VAC) / 0.85A (230VAC) | Surge current: 65A (230VAC) | Overtemperature protection: none
KMS7512Output power: 75W | Output voltage: 12VDC | Output current: 6.25A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 1.4A (115VAC) / 0.85A (230VAC) | Surge current: 65A (230VAC) | Overtemperature protection: none
KMS7524Output power: 75W | Output voltage: 24VDC | Output current: 3.2A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 89% | Input current: 1.4A (115VAC) / 0.85A (230VAC) | Surge current: 65A (230VAC) | Overtemperature protection: none
KMS7548Output power: 75W | Output voltage: 48VDC | Output current: 1.6A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input current: 1.4A (115VAC) / 0.85A (230VAC) | Surge current: 65A (230VAC) | Overtemperature protection: none
KMS1005Output power: 100W | Output voltage: 5VDC | Output current: 20A | Voltage tolerance: ±2% | Ripple & noise: 100mV | Efficiency (typ.): 86% | Input current: 1.9A (115VAC) / 1.2A (230VAC) | Surge current: 50A (230VAC) | Overtemperature protection: none
KMS10012Output power: 100W | Output voltage: 12VDC | Output current: 8.5A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 88% | Input current: 1.9A (115VAC) / 1.2A (230VAC) | Surge current: 50A (230VAC) | Overtemperature protection: none
KMS10024Output power: 100W | Output voltage: 24VDC | Output current: 4.5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 1.9A (115VAC) / 1.2A (230VAC) | Surge current: 50A (230VAC) | Overtemperature protection: none
KMS10048Output power: 100W | Output voltage: 48VDC | Output current: 2.1A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 91% | Input current: 1.9A (115VAC) / 1.2A (230VAC) | Surge current: 50A (230VAC) | Overtemperature protection: none
KMS1505Output power: 150W | Output voltage: 5VDC | Output current: 30A | Voltage tolerance: ±2% | Ripple & noise: 100mV | Efficiency (typ.): 85% | Input current: 3A (115VAC) / 2A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: yes, automatic reset
KMS15012Output power: 150W | Output voltage: 12VDC | Output current: 12.5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 3A (115VAC) / 2A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: yes, automatic reset
KMS15024Output power: 150W | Output voltage: 24VDC | Output current: 6.5A | Voltage tolerance: ±1% | Ripple & noise: 2000mV | Efficiency (typ.): 89% | Input current: 3A (115VAC) / 2A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: yes, automatic reset
KMS15048Output power: 150W | Output voltage: 48VDC | Output current: 3.3A | Voltage tolerance: ±1% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input current: 3A (115VAC) / 2A (230VAC) | Surge current: 45A (230VAC) | Overtemperature protection: yes, automatic reset
